Optoelectronic Sensor Series 2
Optoelectronic Sensor Series 2

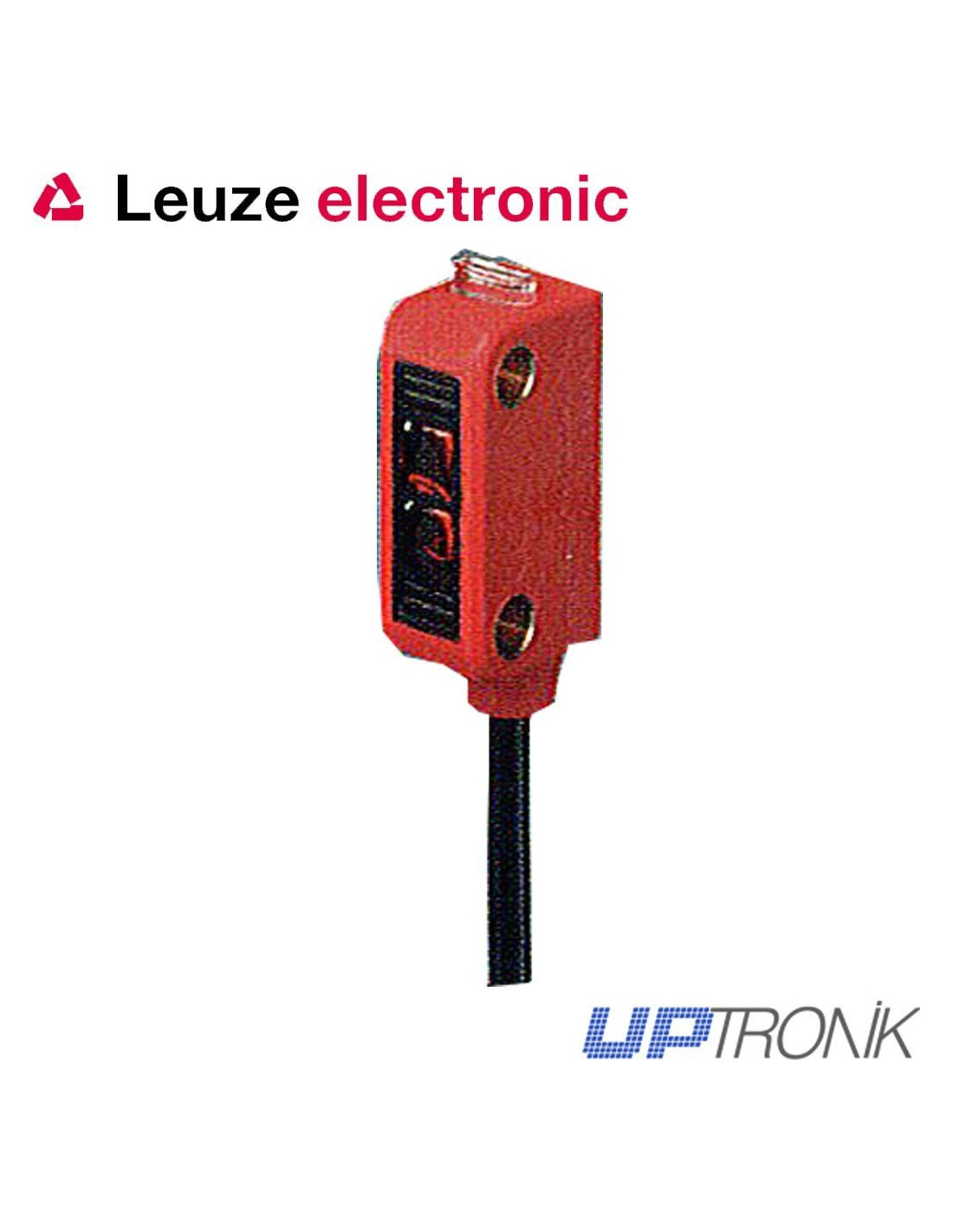

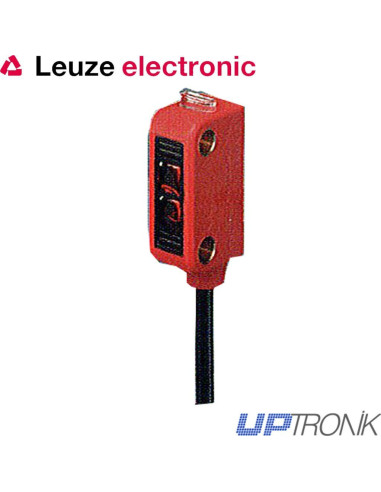

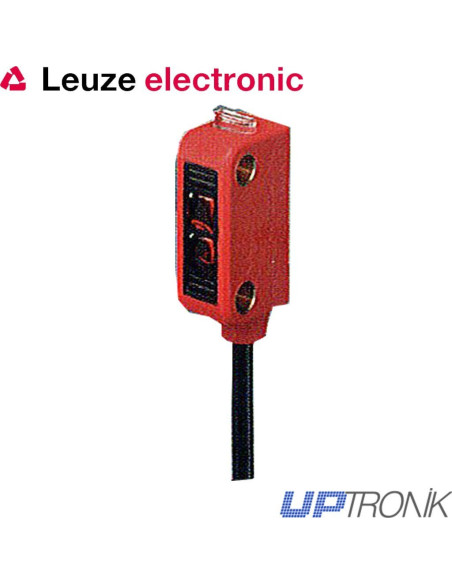

Serie 2 - LSER 2/42,150-S8

  • LEUZE Photocell barrier
  • Reciever (Couple Emitter LSSR 2,150-S8)
  • Miniaturized sensor with visible red light
  • Homogeneous light spot visible with pin-point LED
  • Universal connection options
  • Plastic housing stable with temperature variations metal nozzle positioned fastening for secure mounting

  •

Consultar precio ahora de LSER 2/42,150-S8

Description

Technical data

Dimensions without connector, An x Al x Pr
8 x 23 x 12 mm
Power 10 - 30 V CC
Departures
PNP, NPN
Connection
 M8 conector 0,15m cable
Index of protection
 IP 67
Housing Thermoelastic elastomer
Photo electric sensors

Scope
 0 - 2m
Light source
 Red light
Commutation
 Clarity
Switching frequency
 385Hz


Product Details

LSER 2/42,150-S8
