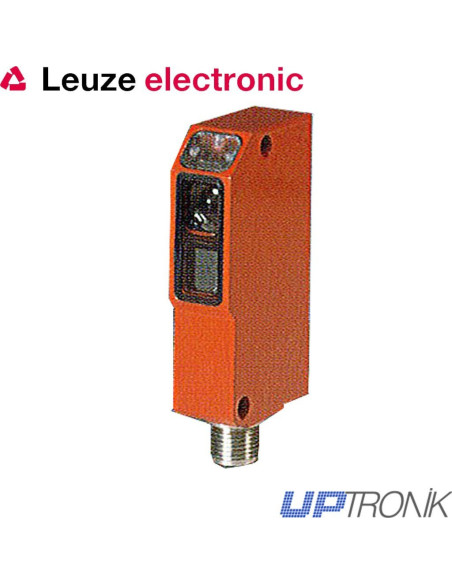

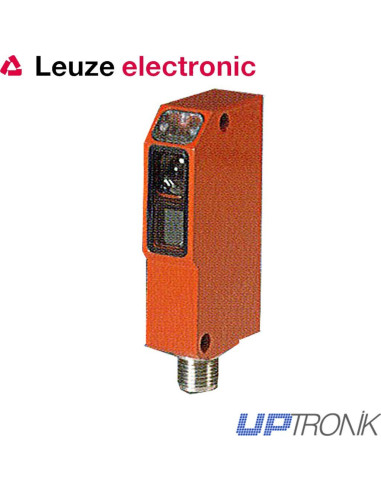

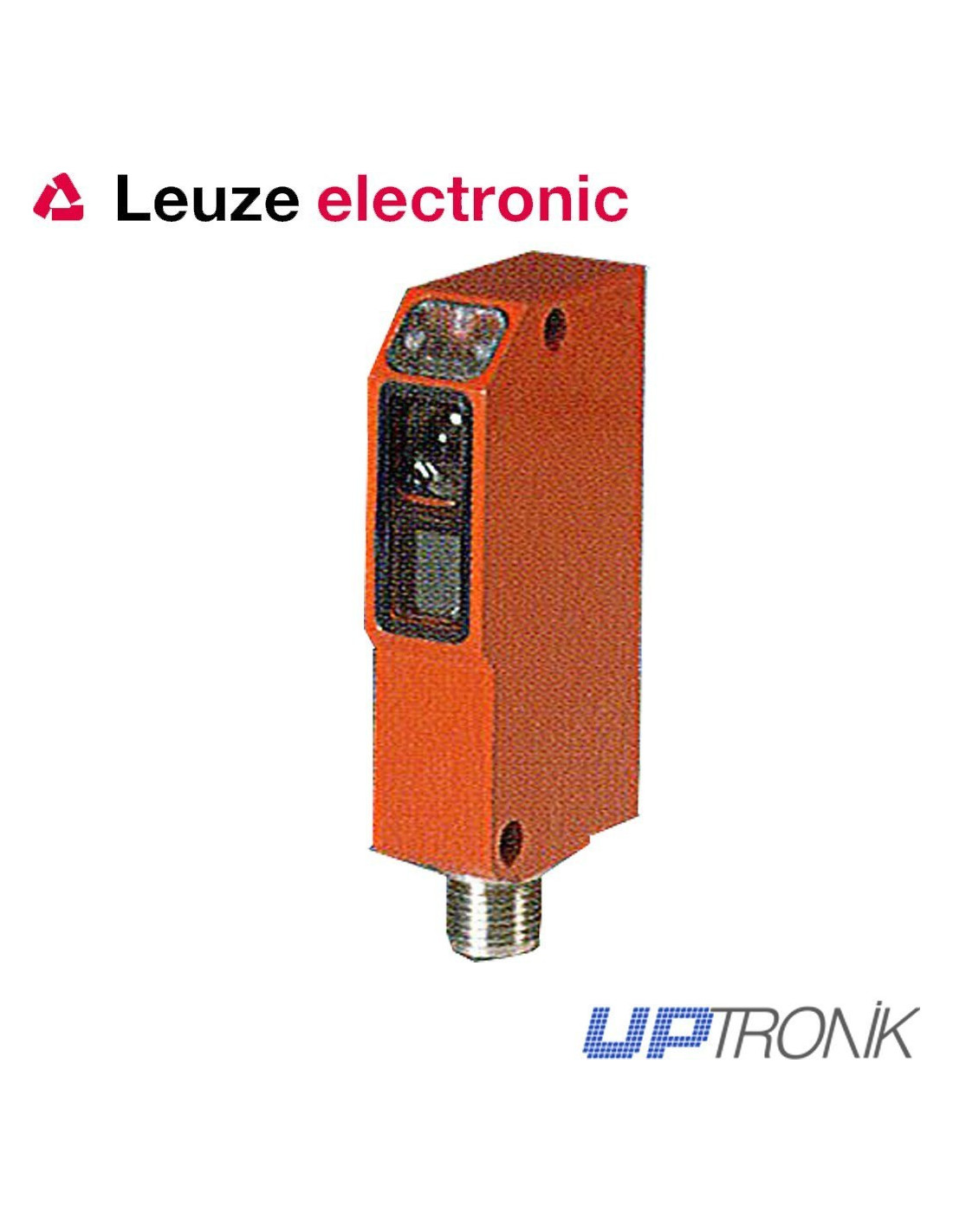

95 Series optoelectronic sensor
95 Series optoelectronic sensor

95 Series optoelectronic sensor

Leuze 95 series is available as photocell barrier photocell selfreflection reflective photocell for detecting versions PET, and glass sheets. Robust metal housings with IP 67 / IP 69K and active ambient light suppression A²LS provide a particularly reliable detection even in harsh industrial environments.



Consultar precio ahora de

Description

FEATURES:

  • IP 67 and IP 69K protection
  • Sensitivity adjustment via multiturn potentiometer
  • Metal housing with glass optics
  • Variants for detection of PET, and glass sheets
  • Increased availability through warning output and trigger input
  • High security against external light by A²LS



Technical data

Dimensions without connector, An x Al x Pr
17 x 66 x 35 mm
Power 10 - 30 V CC/18 - 30 V CC
Departures
PNP, NPN
Connection
 M12
Index of protection
 IP 67, IP 69 K
Housing Metal
Photo electric sensors

Scope
 0 - 18/0 - 20 m
Light source
 Red light/infrared
Commutation
 Antivalent
Switching frequency
 1000Hz
Reflexive photocell

Scope
 0 - 9 m
Light source
 Red light
Commutation
 Clarity, antivalent
Switching frequency
 1000 Hz
Reflective photocells

Scope
 10 - 900/10 - 400 mm
Light source
 Red light/infrared
Commutation
 Antivalent
Switching frequency
 1000 Hz
Self-reflective with background suppression

Scope
 20 - 500 mm
Light source
 Red light/infrared
Commutation
 Antivalent
Switching frequency
 1000 Hz
Additional features

Tranparent objects
 X
Category 2 safety barriers
 X
Signal output
 X
Activation input
 X
A2LS
 X
Features

  Suppression of initiation. User Guide for transparent objects. Bottle detection. Detection of transparent plastic material.
