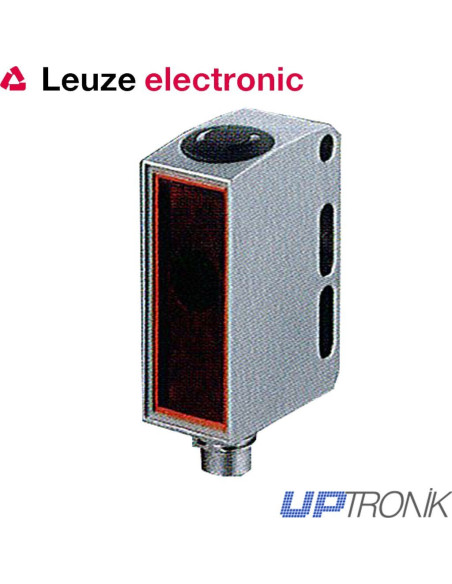

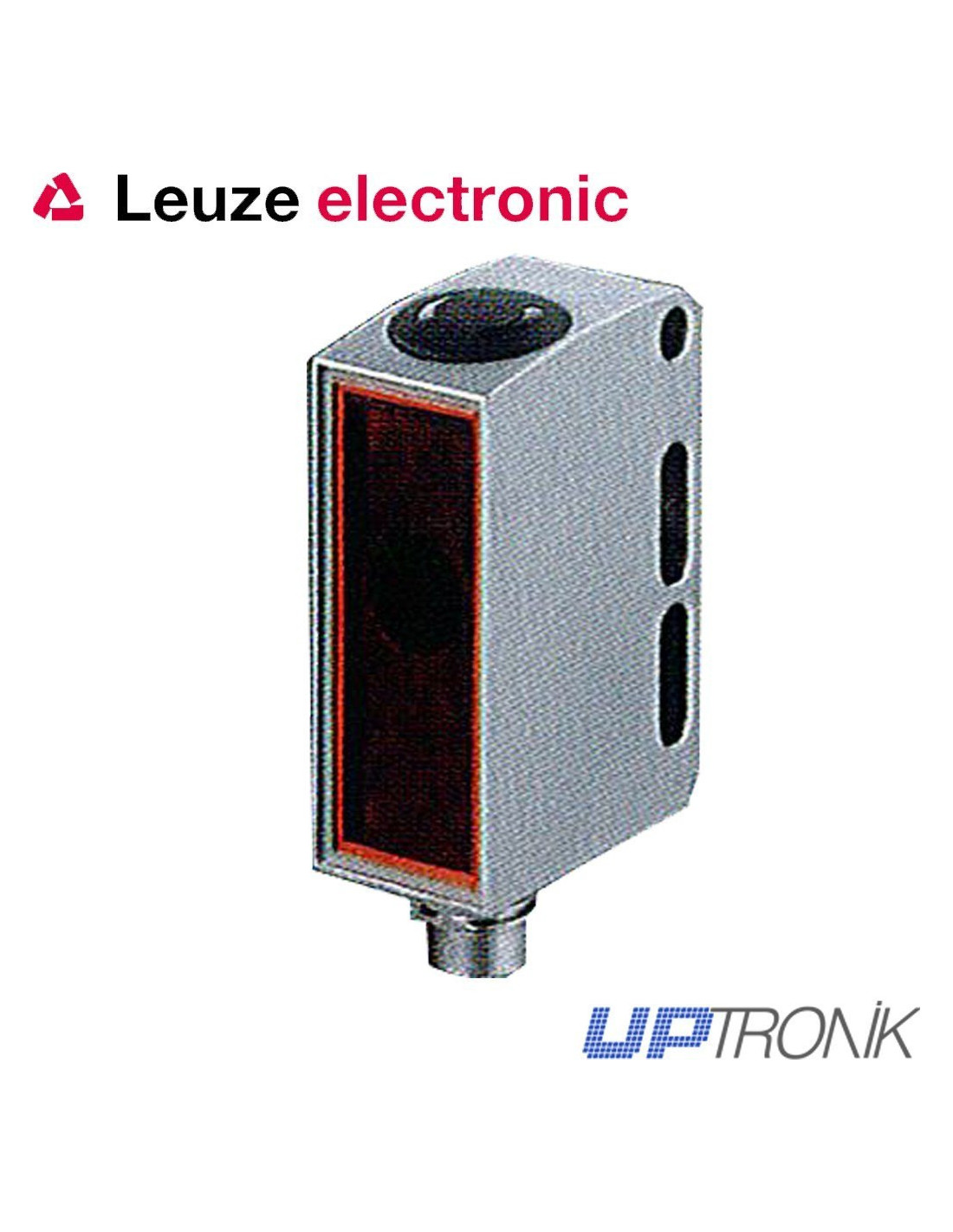

55 Series optoelectronic sensor
55 Series optoelectronic sensor

55 Series optoelectronic sensor

This series of stainless steel sensors Leuze reveals its strength particularly in the wet area of ​​your production line. The innovative design allows WASH-DOWN thoroughly clean installation with all means and usual procedures. The diffusion-tight and chemically resistant materials prevent bacterial transmission and guaranteed for years the functionality of the systems.



Consultar precio ahora de

Description

FEATURES:

  • Board TPV (chemically resistant to cleaning products) smooth, disinfected and diffusion tight
  • Stainless steel housing with WASH-DOWN design V4A (AISI 316L)
  • ECOLAB tested and CleanProof +
  • The technique of gas-tight housing prevents bacterial transmission
  • Optical cover PMMA + with special coating resistant to H2O2 and cleaning by rubbing with alcohol 70%
  • Identification of resistant long-term electrochemical device and desinfectable
  • Fixation in V4A (AISI 316L) prepared for M4 thread
  • Connector / Cable: V4A / PVC disinfectable and non-diffusive




Technical data

Dimensions without connector, An x Al x Pr
14 x 36 x 25 mm
Power 10 - 30 V CC
Departures
Antivalent
Connection
 M8, Cable + M12
Index of protection
 IP 67, IP 69 K
Housing 316L stainless steel
Photo electric sensors

Scope
 0 - 10m
Light source
 Red light
Commutation
 Antivalent
Switching frequency
 1000Hz
Reflexive photocell

Scope
 0 - 5/0 - 3m
Light source
 Red light/Laser
Commutation
 Antivalent
Switching frequency
 1000/2000 Hz
Self-reflective with background suppression

Scope
 5-400 mm
Light source
 Red light
Commutation
 Antivalent
Switching frequency
 1000Hz
Additional features

Tranparent objects
 X
A2LS
 X
Features


Design WASH DOWN. CleanProof +. ECOLAB. EHEDG. Plastic materials detection tranparent <20 uM. Bottle detection. Contrast detecting sensor. Available for Ex zone 2 and 22.
