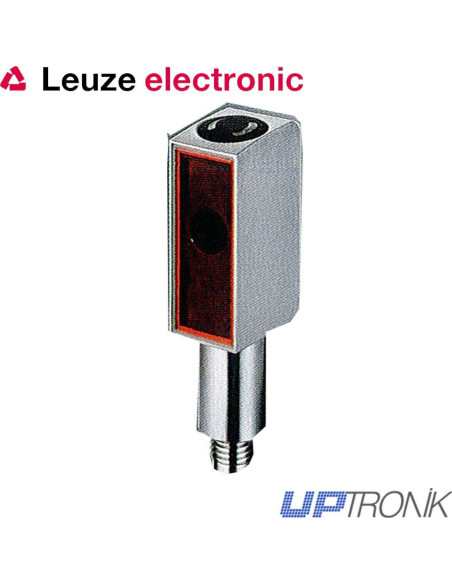

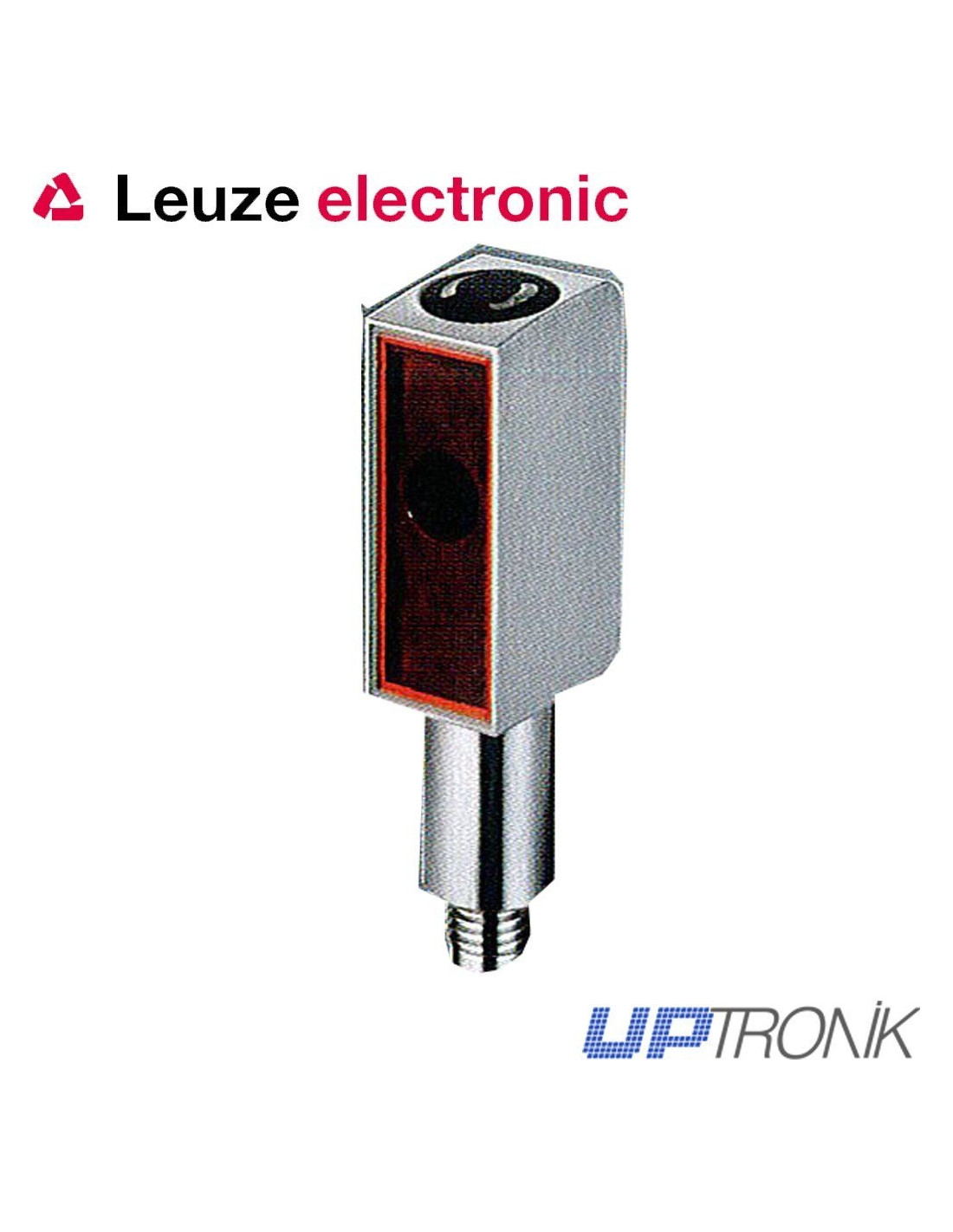

3B Series optoelectronic sensor
3B Series optoelectronic sensor

53 Series optoelectronic sensor

These LEUZE sensors have been specially developed for demanding sanitary areas, for example in the pharmaceutical, cosmetic or food industries. The design of their enclosures is especially focused on preventing bacterial transmission window scratchproof and diffusion-tight plastic.



Consultar precio ahora de

Description

FEATURES:

  • Board TPV (chemically resistant to cleaning products) smooth, disinfected and diffusion tight
  • Stainless steel housing with hygienic design V4A (AISI 316L)
  • ECOLAB tested and CleanProof +
  • The technique of gas-tight housing prevents bacterial transmission
  • Optical cover PMMA + with special coating resistant to H2O2 and cleaning by rubbing with alcohol 70%
  • Identification of resistant long-term electrochemical device and desinfectable
  • Fixation in V4A (AISI 316L) for gas-tight adaptation (diameter 12 mm, G6 setting)



Technical data

Dimensions without connector, An x Al x Pr
14 x 54 x 20 mm
Power 10 - 30 V CC
Departures
Antivalent
Connection
 M8, Cable + M8
Index of protection
 IP 67, IP 69 K
Housing 316L stainless steel
Photo electric sensors

Scope
 0 - 10m
Light source
 Red light
Commutation
 Antivalent
Switching frequency
 1000Hz
Reflexive photocell

Scope
 0 - 5/0 - 3m
Light source
 Red light/Laser
Commutation
 Antivalent
Switching frequency
 1000/2000 Hz
Self-reflective with background suppression

Scope
 5-400 mm
Light source
 Red light
Commutation
 Antivalent
Switching frequency
 1000Hz
Additional features

Tranparent objects
 X
A2LS
 X
Features


Design HYGIENE. CleanProof +. ECOLAB. EHEDG. Plastic materials detection tranparent <20 uM. Bottle detection. Contrast detecting sensor. Available for Ex zone 2 and 22.

Product Details

Attachments
