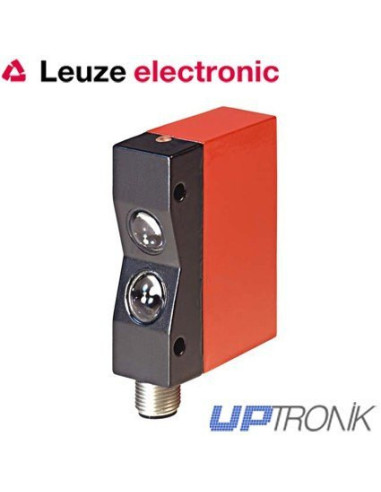

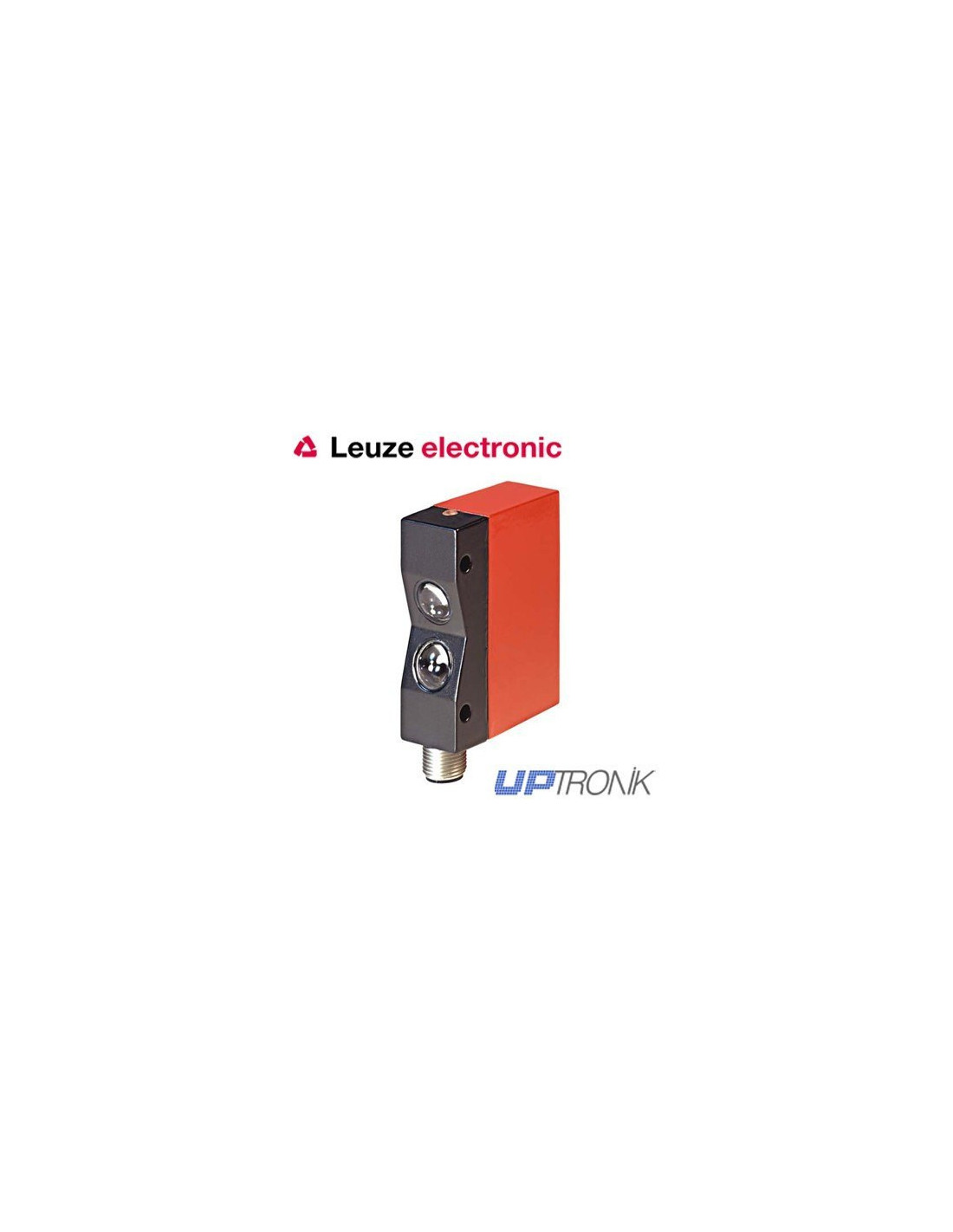

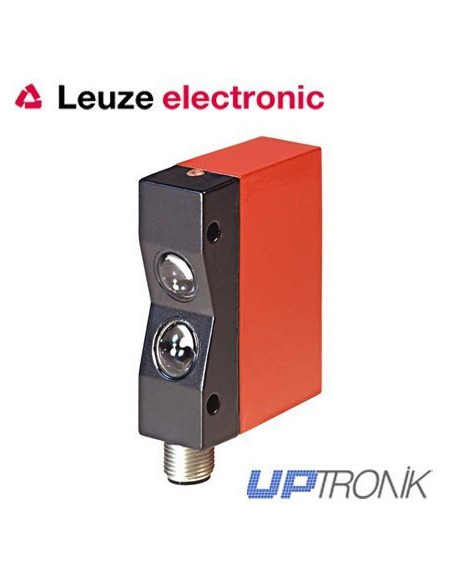

The most outstanding feature of this series of Leuze optical system is V-shaped, which ensures detection of super potent objects and reliable background suppression. This series with metal casing provides optimized solutions, for applications that must be reliably detected by probing bright or transparent and / or delete objects bright backgrounds.
FEATURES:
| Technical data |
|
| Dimensions without connector, An x Al x Pr |
20 x 60 x 44 mm |
| Power | 10 - 30 V CC |
| Departures |
PNP |
| Connection |
M12, cable |
| Index of protection |
IP 65 |
| Housing | Metal |
| Reflexive photocell |
|
| Scope |
0 - 200 m |
| Light source |
Infrared |
| Commutation |
Clarity |
| Switching frequency |
250 Hz |
| Self-reflective with background suppression |
|
| Scope |
5-400 mm |
| Light source |
Red light |
| Commutation |
Antivalent |
| Switching frequency |
1000Hz |
| Additional features |
|
| Alarm output |
X |
| A2LS |
X |
| Features |
|
| Suppression of initiation and background. Added security through the optical detection in a V. |
