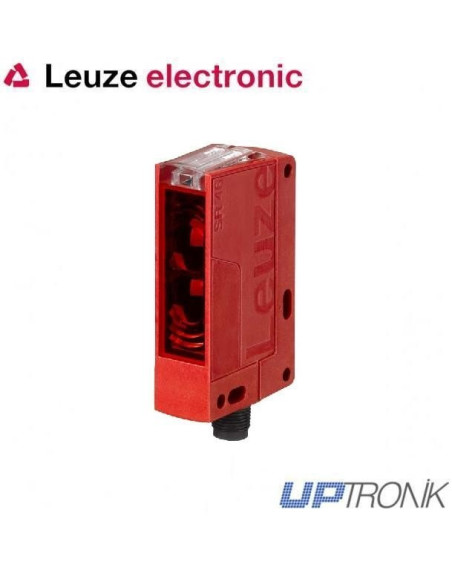

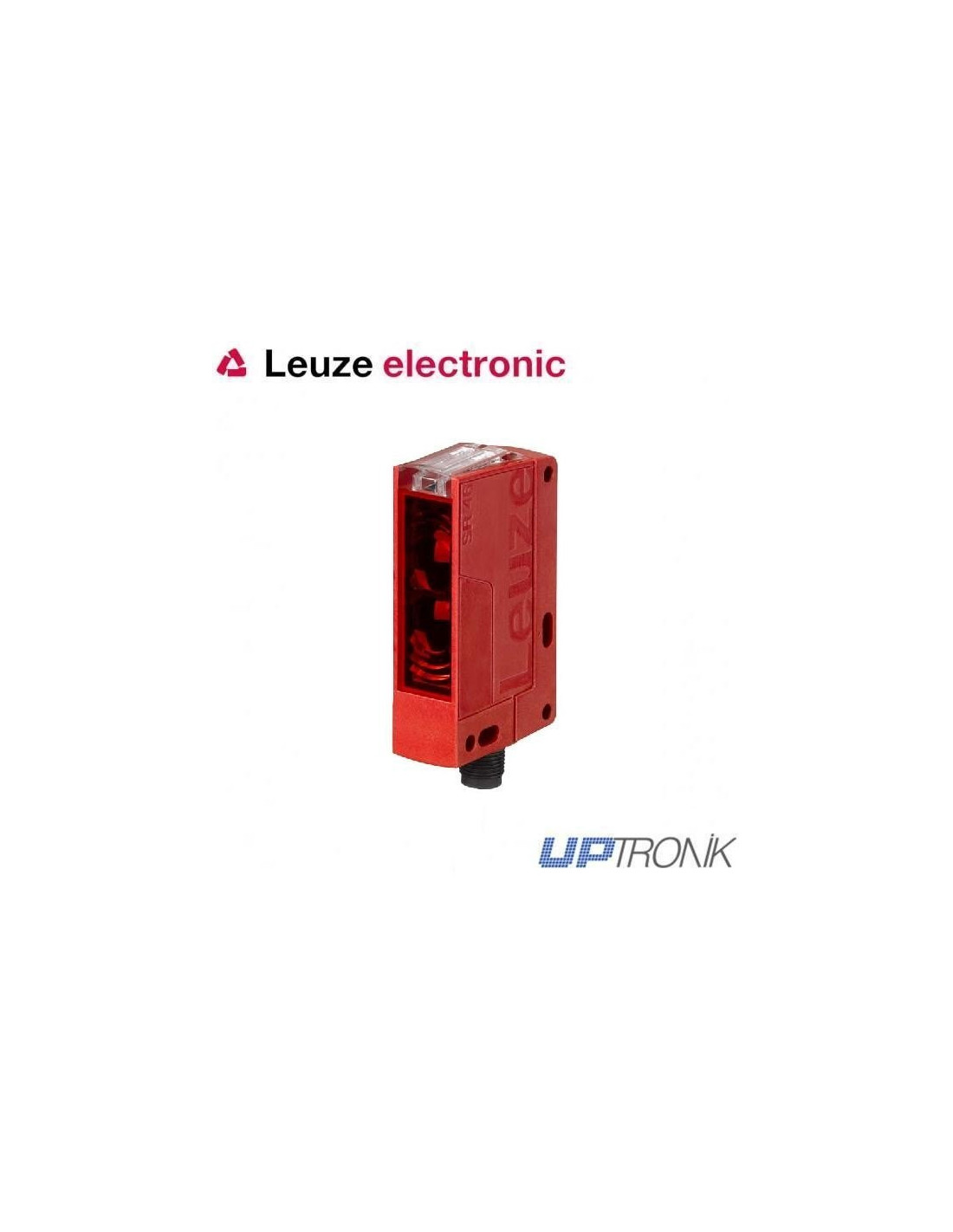

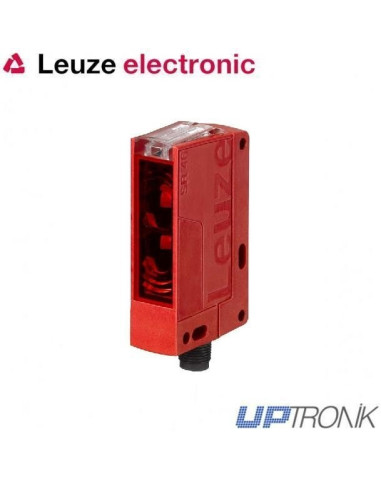

46B Series optoelectronic sensor
46B Series optoelectronic sensor

46C Series optoelectronic sensor

Great potential and power reserves, these Leuze sensors with plastic housing are suitable for use in transportation and storage systems, wood processing industry and special machines. Large optics, IP67 and IP69K protection, and performance reserve warning patented "autocontrol" open many applications this fully developed series.



Consultar precio ahora de

Description

FEATURES:

  • Large reserves of operation
  • Great potential (partially in several ranges)
  • Variants with IO-Link interface for parameterization and instant reformatting via Control
  • Increased availability through warning output
  • IP 67 and IP 69K protection
  • Very robust plastic housing
  • Wide range of working temperature of -40 ° C to + 60 ° C.
  • Point of light visible, or infrared brightVision®
  • High security against external light by A²LS
  • Adaptation by potentiometer or teach



Technical data

Dimensions without connector, An x Al x Pr
18 x 75 x 43 mm
Power 10 - 30 V CC
Departures
PNP, antivalent, relays
Connection
 M12, cable + M12, cable
Index of protection
 IP 67, IP 69 K
Housing Plastic
Photo electric sensors

Scope
 0 - 60 m
Light source
 Red light
Commutation
 Antivalent, clarity
Switching frequency
 500Hz
Reflexive photocell

Scope
 0,05 - 18 m
Light source
 Red light
Commutation
 Clarity, antivalent, darkness
Switching frequency
 500 Hz
Reflective photocells

Scope
 30 - 900
Light source
 Red light
Commutation
 Antivalent
Switching frequency
 500 Hz
Self-reflective with background suppression

Scope
 5 - 1800/0- 2500/50 - 1200 mm
Light source
 Red light/infrared/laser
Commutation
 Antivalent, clarity, darkness
Switching frequency
 200/200/1000 Hz
Additional features

Category 2 safety barriers
 X
Signal output
 X
Activation input
 X
A2LS
 X
Features

  Light sensor point optimized for roller conveyors. Reflective photocell to shrink objects. Available for Ex zone 2 and 22. ECOLAB.
