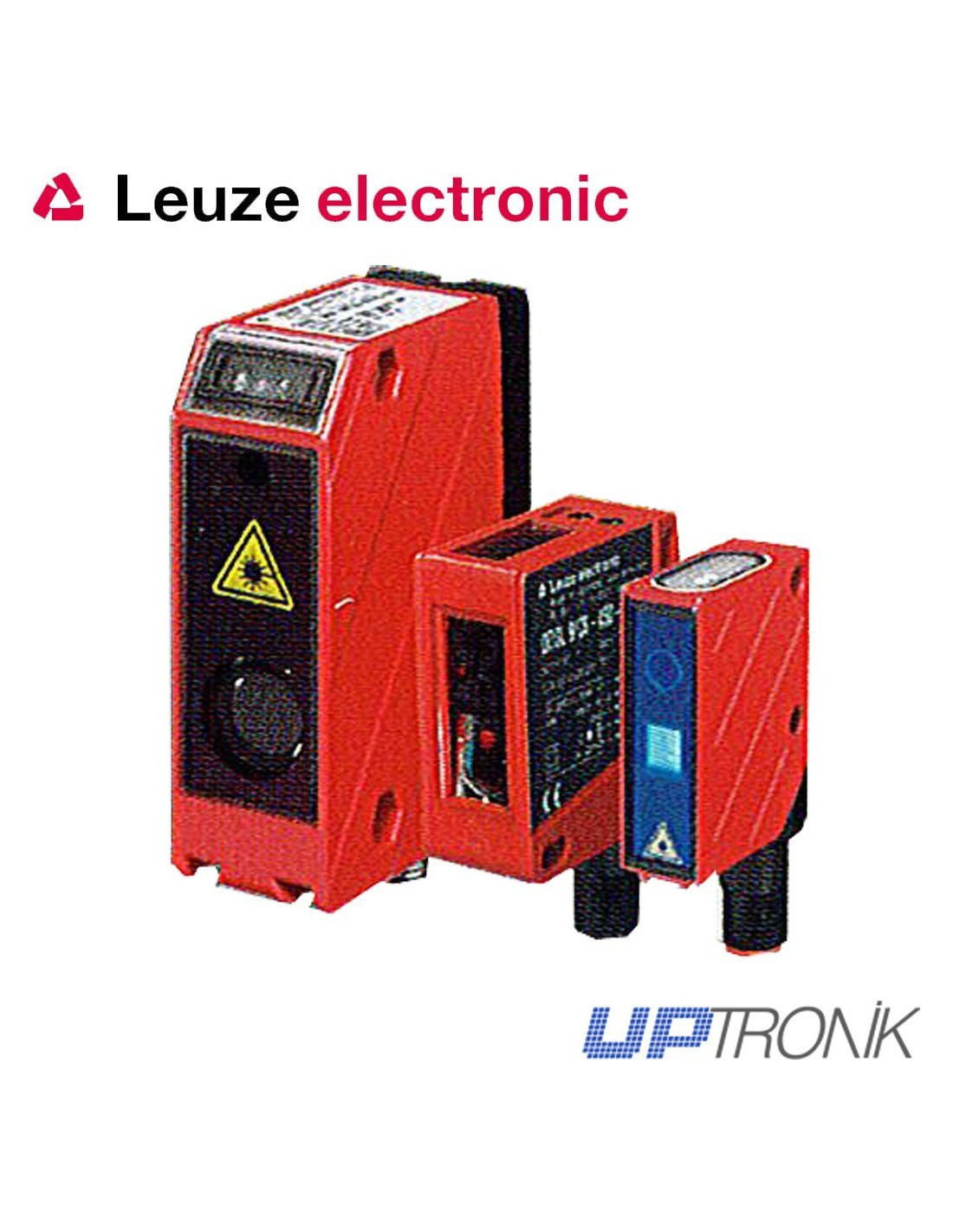

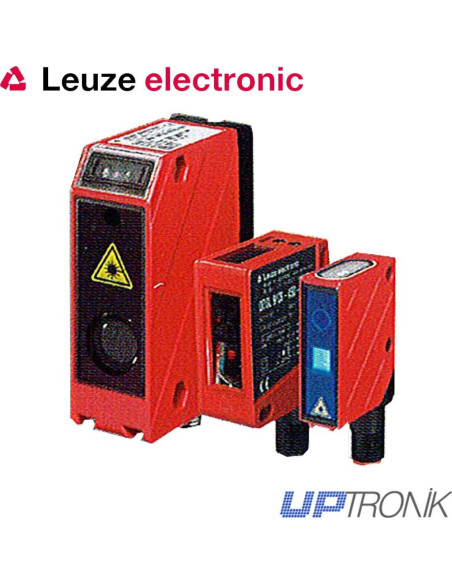

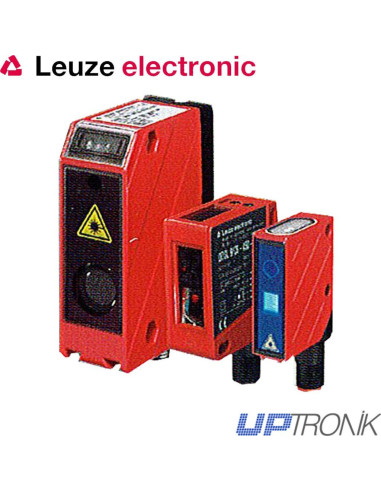

Measuring sensor ODSL 8

Measuring sensor Leuze ODSL 8, simple and robust.

The compact laser distance sensors of this series in compact metal housing provide distance information regardless of referrals. The sensor provides a quick start by Teach-In.



Consultar precio ahora de

Description

FEATURES:

  • Measuring range of 20 mm to 500 mm
  • Robust metal housing
  • Analog, programmable switching outputs
  • M12 rotary connector



echnical data

Function
 Measuring distances, optical
Dimensions without connector, An x Al x Pr
15 x 48 x 38 mm
Power 10 - 30 V CC. 18 - 30 V CC (analógico)
Departures
1 - 10 V
Connection
 M12
Index of protection
 IP 67, IP 69 K
Scope 20 - 500 mm
Measurement method
 Optical/laser/LED
Measuring time
 1 - 5 ms
Resolution
 0,01 - 3 mm
Operation
 Teach-In. Configuration software. OLED display.
Features

  OLED display for the information of measured values ​​and configuration. Versions for Ex zone 1 and 21.
