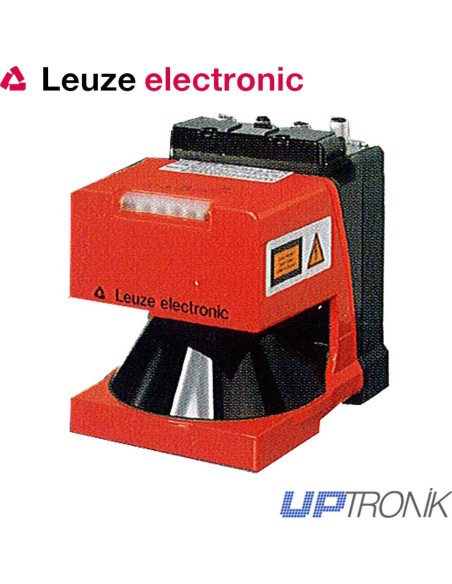

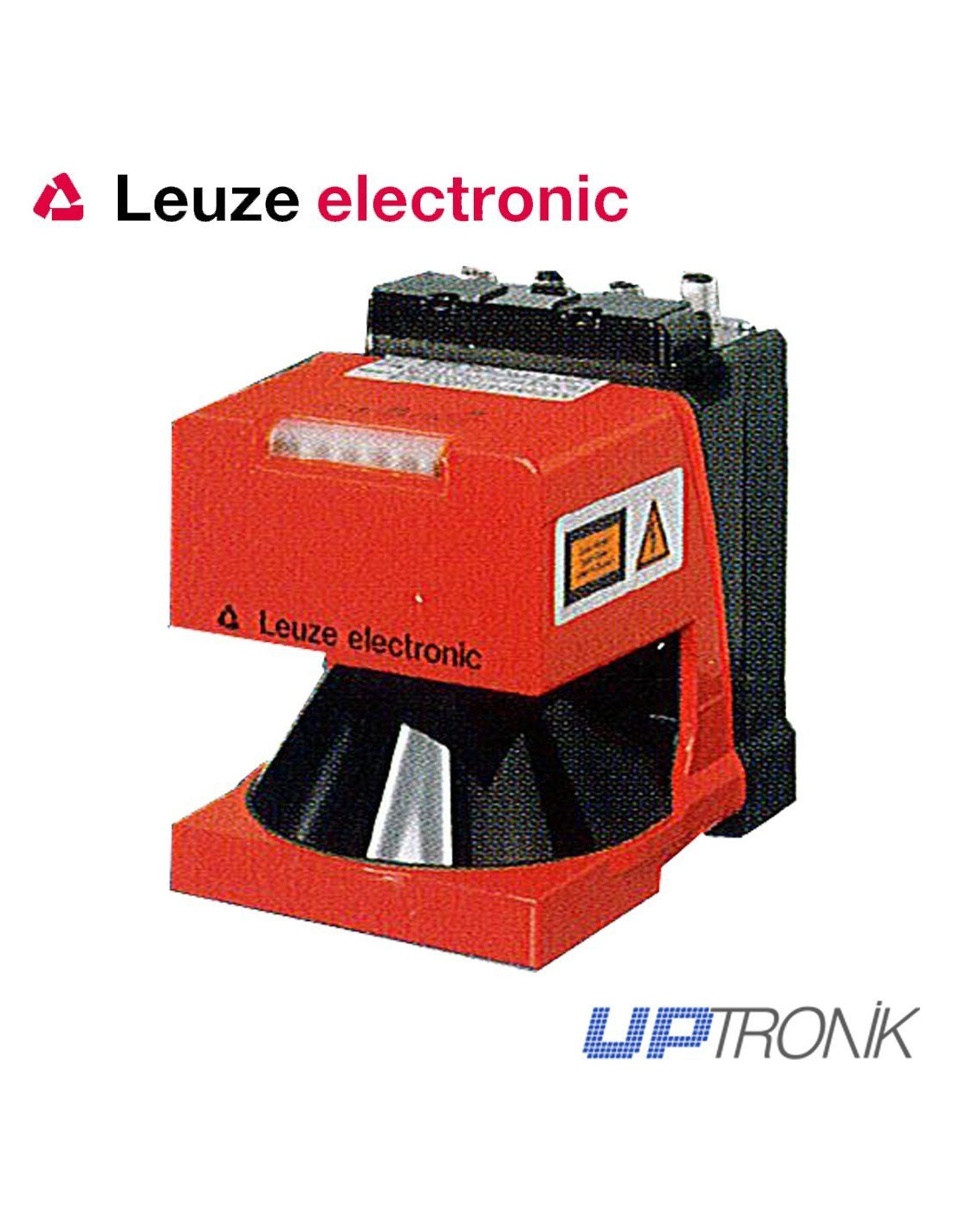

Measuring sensor ROD 4 (plus)
Measuring sensor ROD 4 (plus)

Measuring sensor ROD 4 (plus)

ROD 4 laser sensors Leuze for object detection and measurement of contours without contact. By a rotating mirror a laser beam measurement deviates by capturing an area of 190 ° with a radius of 65 m. In addition there are variants for object detection up to four simultaneous detection fields.



Consultar precio ahora de

Description

FEATURES:

  • Measuring range 0 ... 65 m, radio detection field up to max. 50 m
  • 7 pairs of fields configurable and switchable detection (near and far) for the detection of objects
  • Simple replacement without PC via connector configuration
  • Reference contour for control of presence / absence of objects
  • Independent and simultaneous monitoring of 4 detection fields
  • Interference suppression in case of airborne particles
  • ROD 4-36 with heating and ROD 4-38 with heating, dust-insensitive model



Technical data

Function
 Measuring distances, optical scanner
Dimensions without connector, An x Al x Pr
140 x 148 x 133 mm. 141 x 167 x 168 mm
Power 24 V CC
Departures
Ethernet / RS 232 / RS 422 4 x PNP, 8 pairs of detection areas switched
Connection
 Sub-D, M12, M16
Index of protection
 IP 65
Scope 0 - 65000 mm
Measurement method
 Optical/laser
Measuring time
 20 - 40 ms/scan
Detection field width/Angular resolution
 190º
Resolution
 5 mm
Operation
 Configuration software
Features

  Optionally with heating. Dust suppression. Teach-In.
