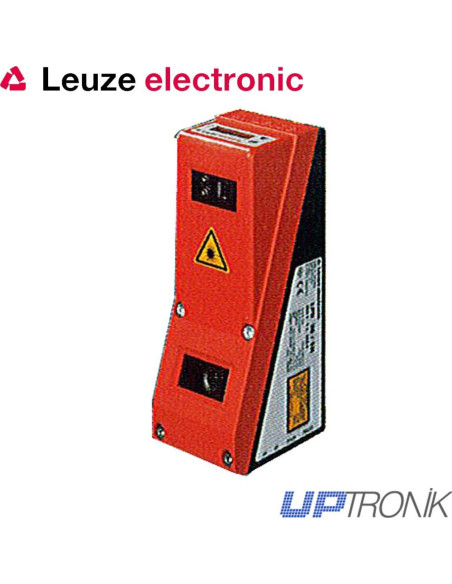

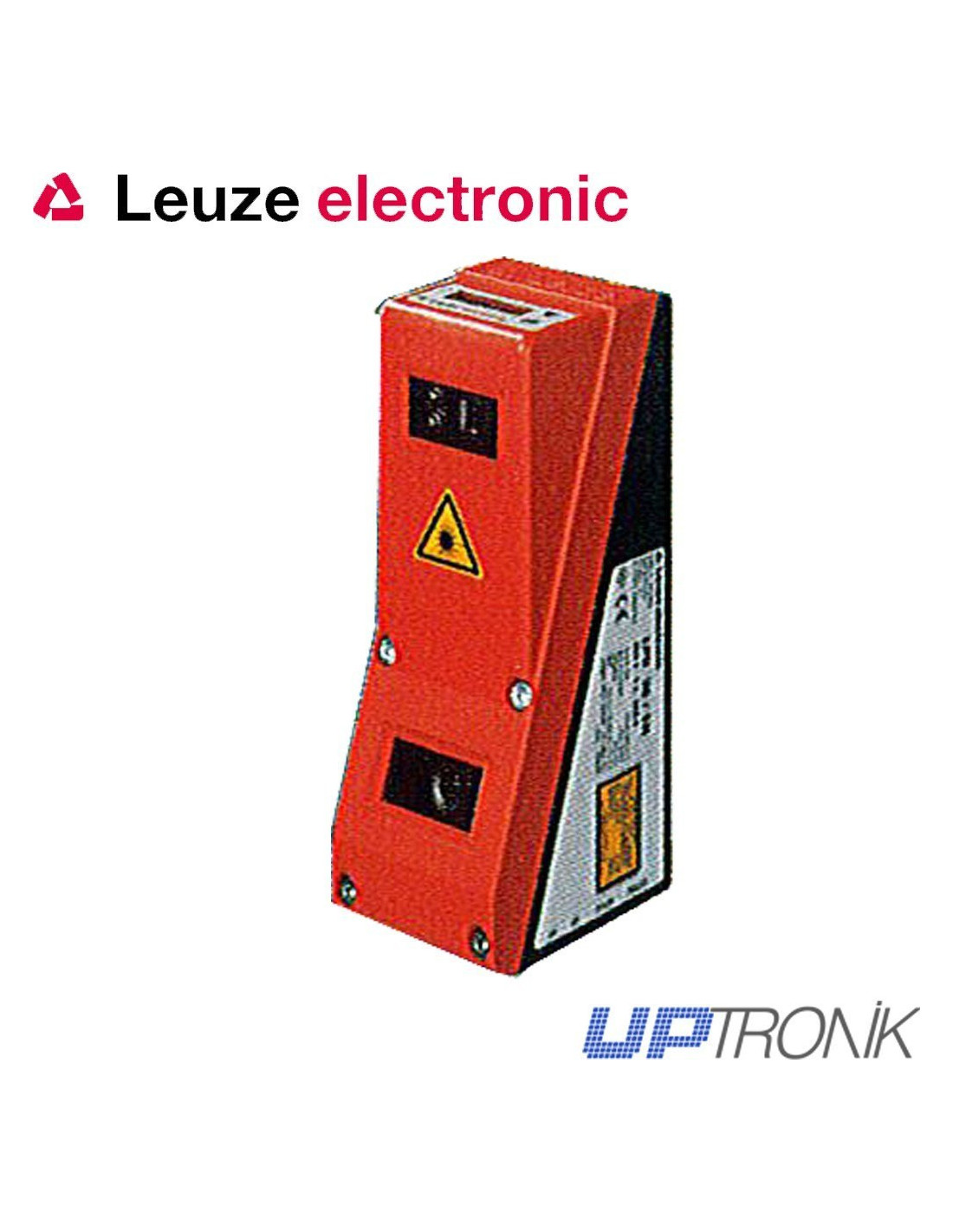

LRS measuring sensor 36

The Line Range Leuze sensors allow bidimensional detection by scanning objects along a laser line. With a sensor 16 can be detected objects maximum. Through the parameter detection complex tasks are solved with a single sensor. A perfect solution, for example to transport several lines or integrity checks.



Consultar precio ahora de

Description

FEATURES:

  • Laser detection with type optical section
  • Up to 16 detection windows 16 inspection tasks
  • Measuring time: 10 ms
  • Detection range: 200-800 mm
  • Calculation and data processing directly on the sensor
  • Compact size: 160 x 74 x 56 mm
  • Interface: Ethernet, I / O or fieldbus




Technical data

Function
 Distance measurement, optical
Dimensions without connector, An x Al x Pr
56 x 74 x 160 mm
Power 10 - 30 V CC
Departures
Ethernet. 4 x counterphase
Connection
 M12
Index of protection
 IP 67
Scope  200 - 800 mm
Measurement method
 Optical/laser
Measuring time
 10 ms
Detection field width/Angular resolution
 Max. 600 mm
Resolution
 1 mm
Operation
 Configuration software
Features

  Connecting the optional encoder.
