Measuring sensor ODSL 9

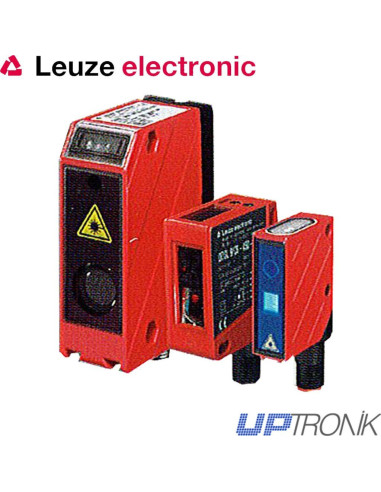

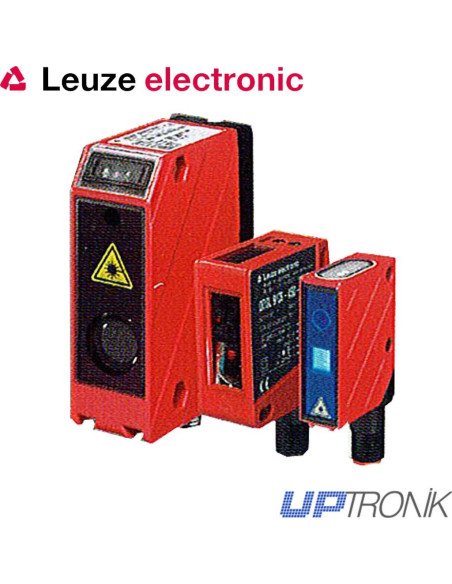

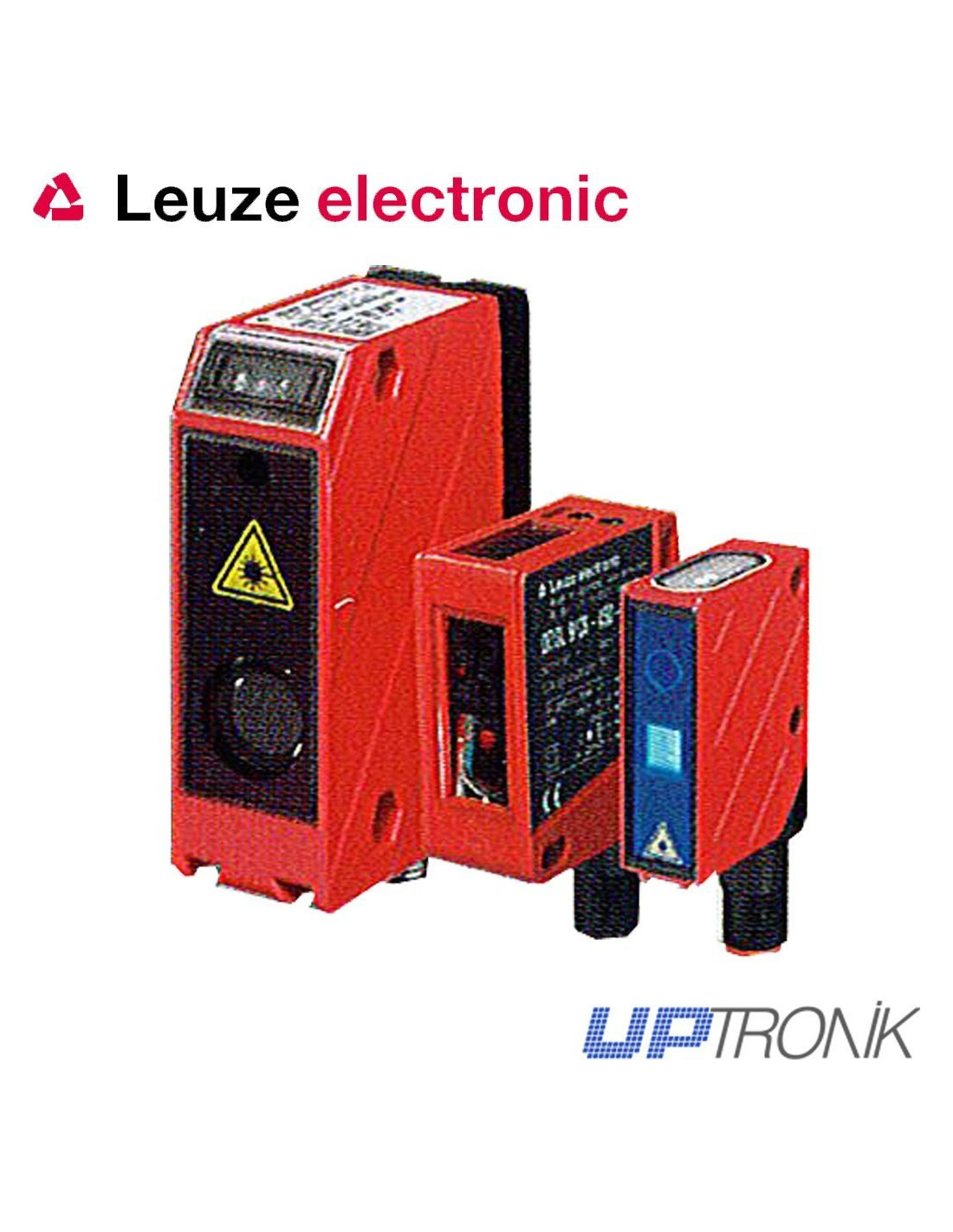

Measuring sensor Leuze ODSL 9 high-tech walking distance.

With optical sensors ODSL 9, the sensor allows accurate even in difficult measurement conditions. The integrated display shows the measured values and can easily adjust the sensor. Distance sensors show the highest possible accuracy when digital interfaces are used.



Consultar precio ahora de

Description

FEATURES:

  • Measured value in millimeters in a visible display
  • Parameterisation and configuration with membrane keyboard
  • Different operating modes (speed, accuracy, standard)
  • M12 rotary connector




Technical data

Function
 Measuring distances, optical
Dimensions without connector, An x Al x Pr
21 x 50 x 50 mm
Power 10 - 30 V CC. 18 - 30 V CC (analógico)
Departures
RS 232/RS 485
Connection
 M12
Index of protection
 IP 67, IP 69 K
Scope 50 - 450 mm
Measurement method
 Optical/laser/LED
Measuring time
 1 - 5 ms
Resolution
 0,01 - 3 mm
Operation
 Teach-In. Configuration software. OLED display.
Features

  OLED display for the information of measured values ​​and configuration. Versions for Ex zone 1 and 21.
