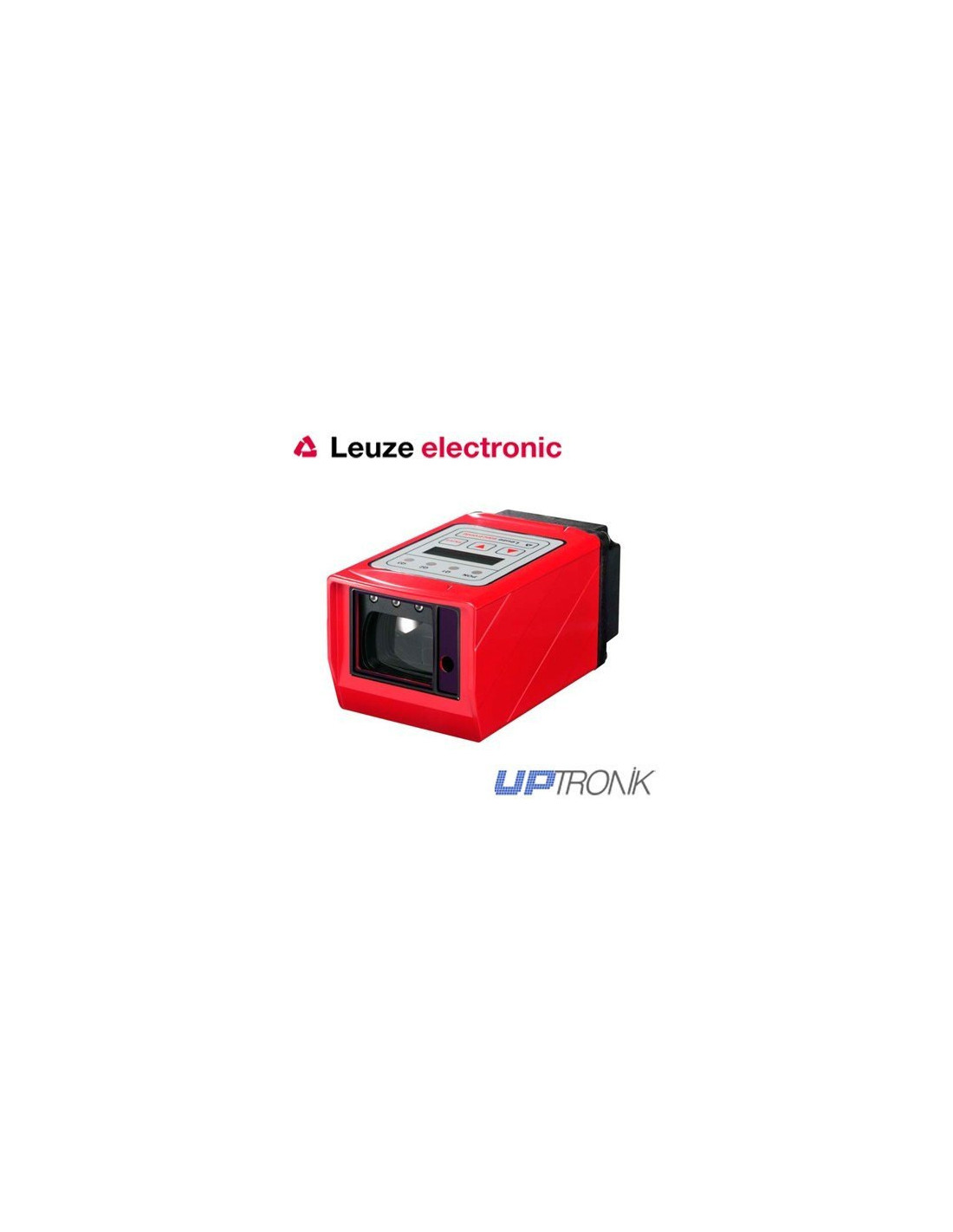

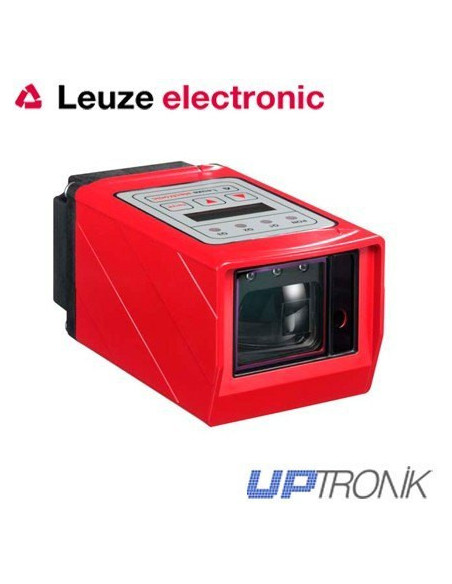

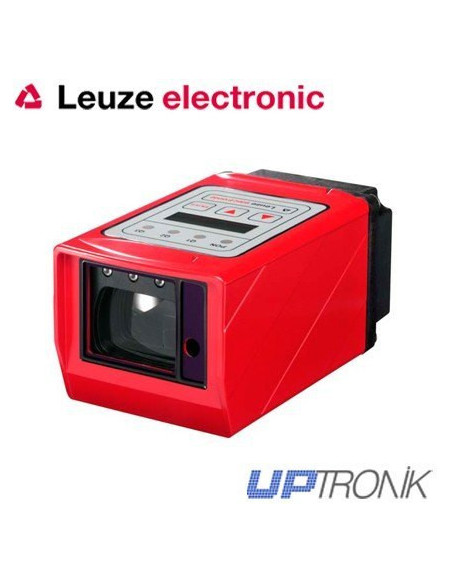

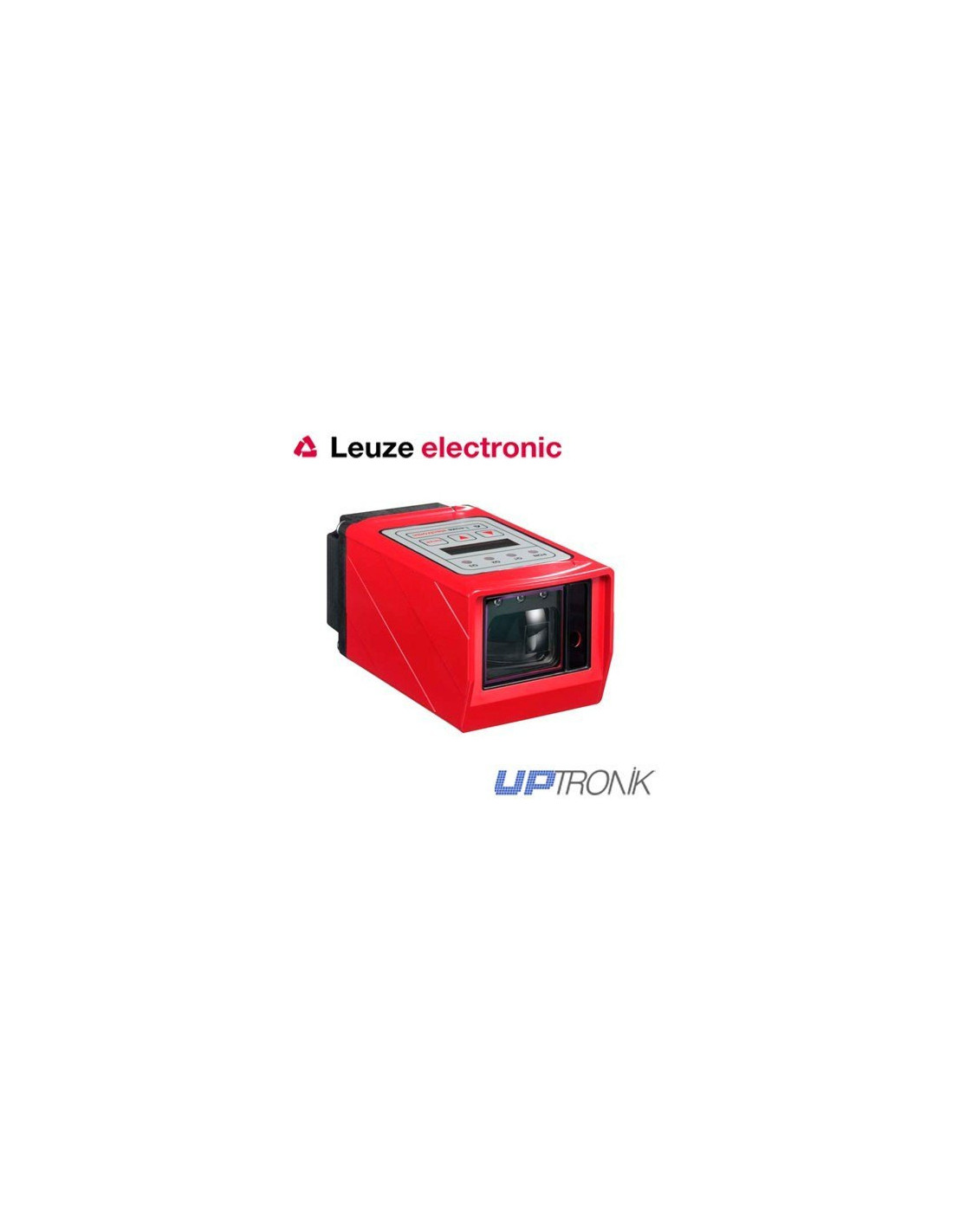

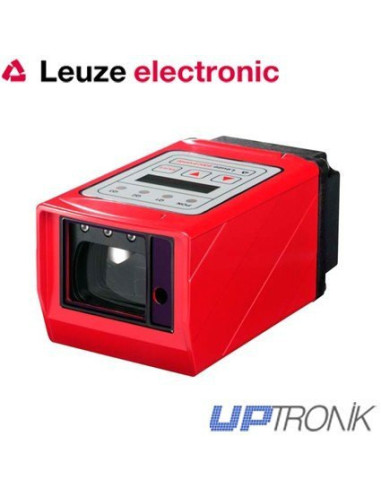

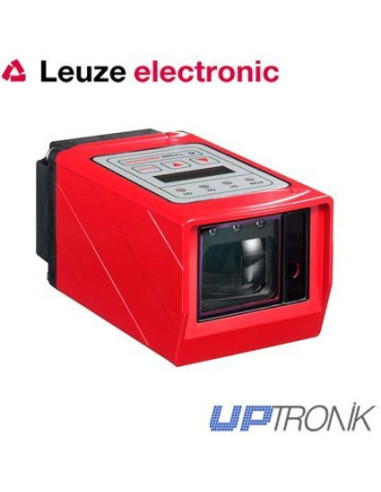

In black objects, the ODSL 30 Leuze measuring sensor measures distances up to 30 m wide and light objects, even up to 65 m. The resolution of 1 mm sensor can measure very precisely how the entire measurement range. The integrated display shows the measured values and can easily adapt the sensor to the measurement task.



Consultar precio ahora de

Description

FEATURES:

  • Absolute measurement accuracy of +/- 2 mm around the measurement range
  • Distances of 0.2-30 m in black and light objects
  • Referenced function to avoid fluctuations in the measured values
  • Display for indicating measured values and configuration
  • Ex variants available




Technical data

Function
 Measuring distances, optical
Dimensions without connector, An x Al x Pr
79 x 69 x 149 mm
Power 10 - 30 V CC. 18 - 30 V CC (analógico)
Departures
4 - 20 mA. 1 - 10 V. RS 232/RS 485. 3 x PNP/NPN
Connection
 M12
Index of protection
 IP 67
Scope 200 - 30000 mm
Measurement method
 Optical/laser/LED
Measuring time
 30 - 100 ms
Resolution
 0,1 - 1 mm
Operation
 LCD display.
Features

  LCD display for displaying measured values ​​and parameter settings.
