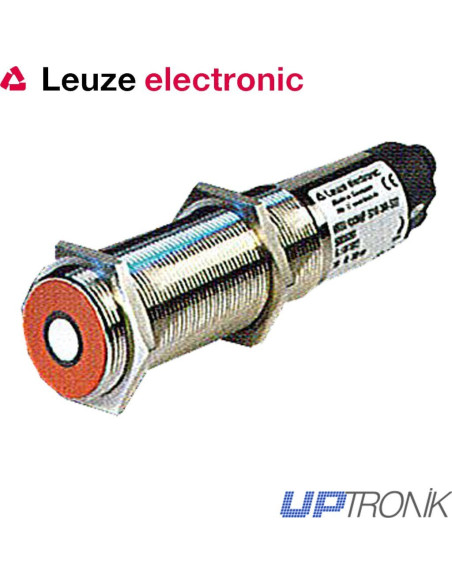

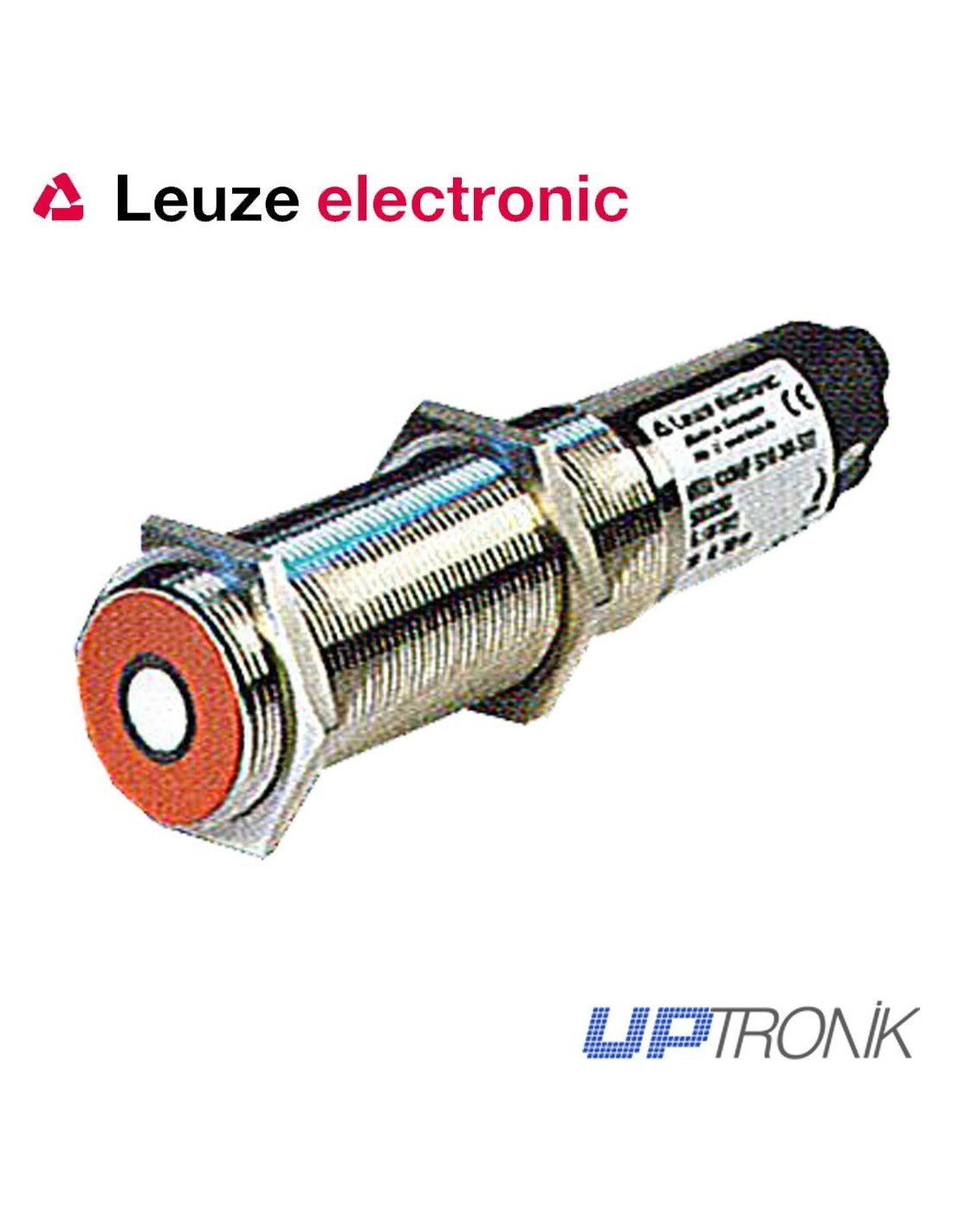

Measuring sensor series UDS 430

Leuze USDS measuring sensor 430 Series, the most versatile for great distances.

New types M30 with metal casing are much more compact, and are ideal for detecting fluid levels and bulk. High accuracy for temperature compensation.



Consultar precio ahora de

Description

FEATURES:

  • Ideal for record levels of liquids, bulk product, highly transparent objects and objects bright
  • Information largely independent from the surface
  • Output current or voltage parameterisable with PC software and a switched output
  • To avoid mutual interference, they can be synchronized easily max. 10 sensors with a cable
  • Sensitivity, formation of mean values, reducing response time and programmable outputs IO-Link
  • Teach key




Technical data

Function
 Measuring distances, ultrasound
Dimensions without connector, An x Al x Pr
M18 x 104 mm. M30 x 150 mm
Power 20 - 30 V CC.
Departures
4 -20 mA. 0 - 10 V. 1 x PNP, 2 x PNP
Connection
 M12
Index of protection
 IP 67, IP 65
Scope 0 - 6000 mm
Measurement method
 Ultrasound
Measuring time
 100 ms - 1 s
Resolution
 1 - 9 mm
Operation
 Potentiometer, optional. Configuration software.
Features

  Temperature compensation.
