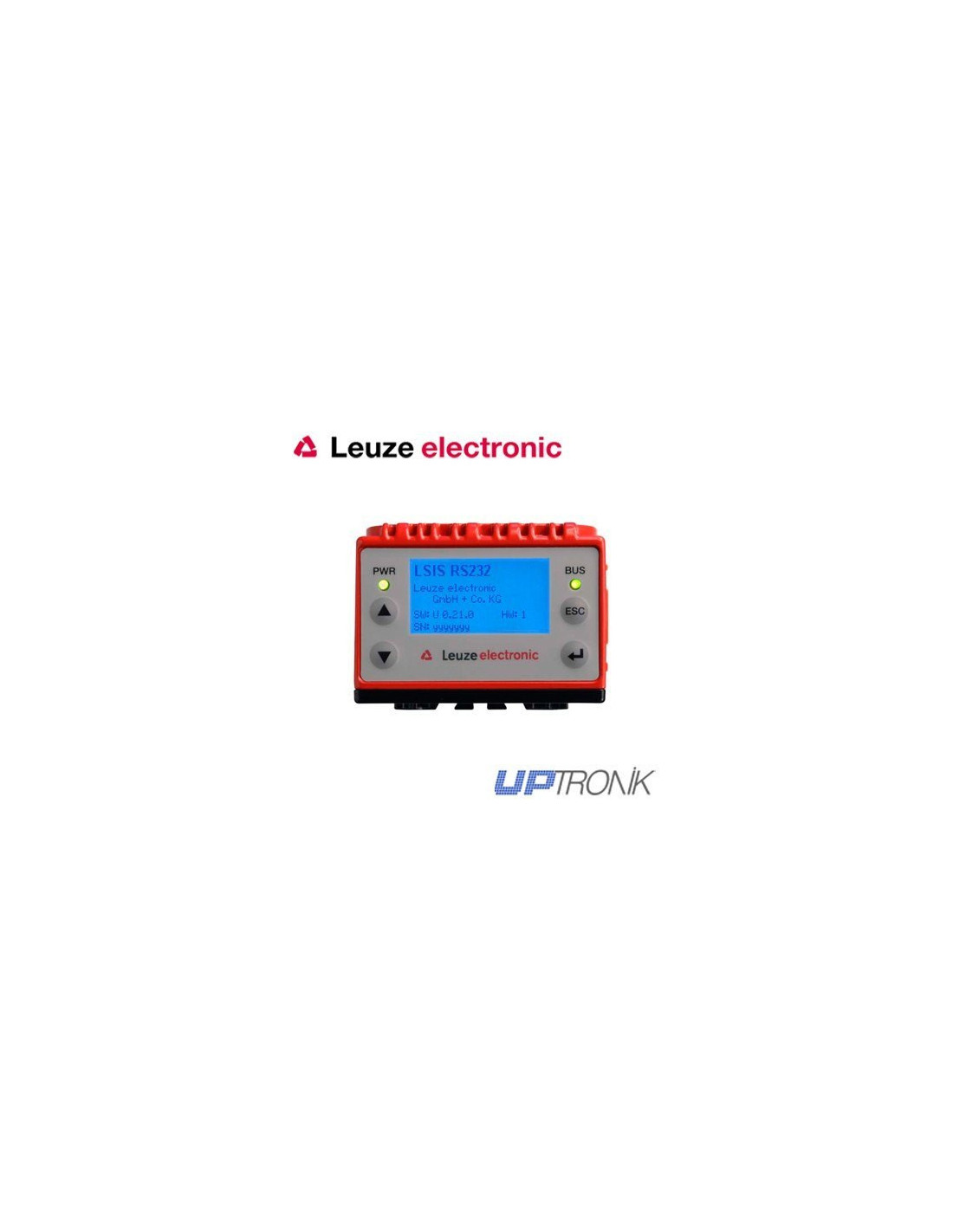

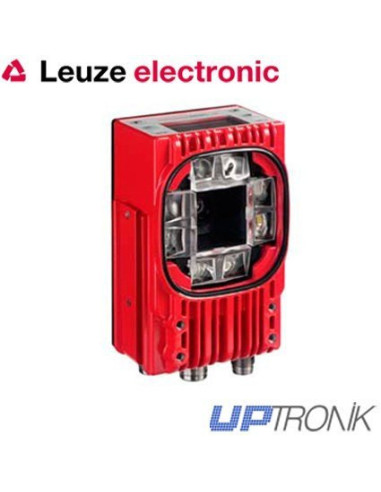

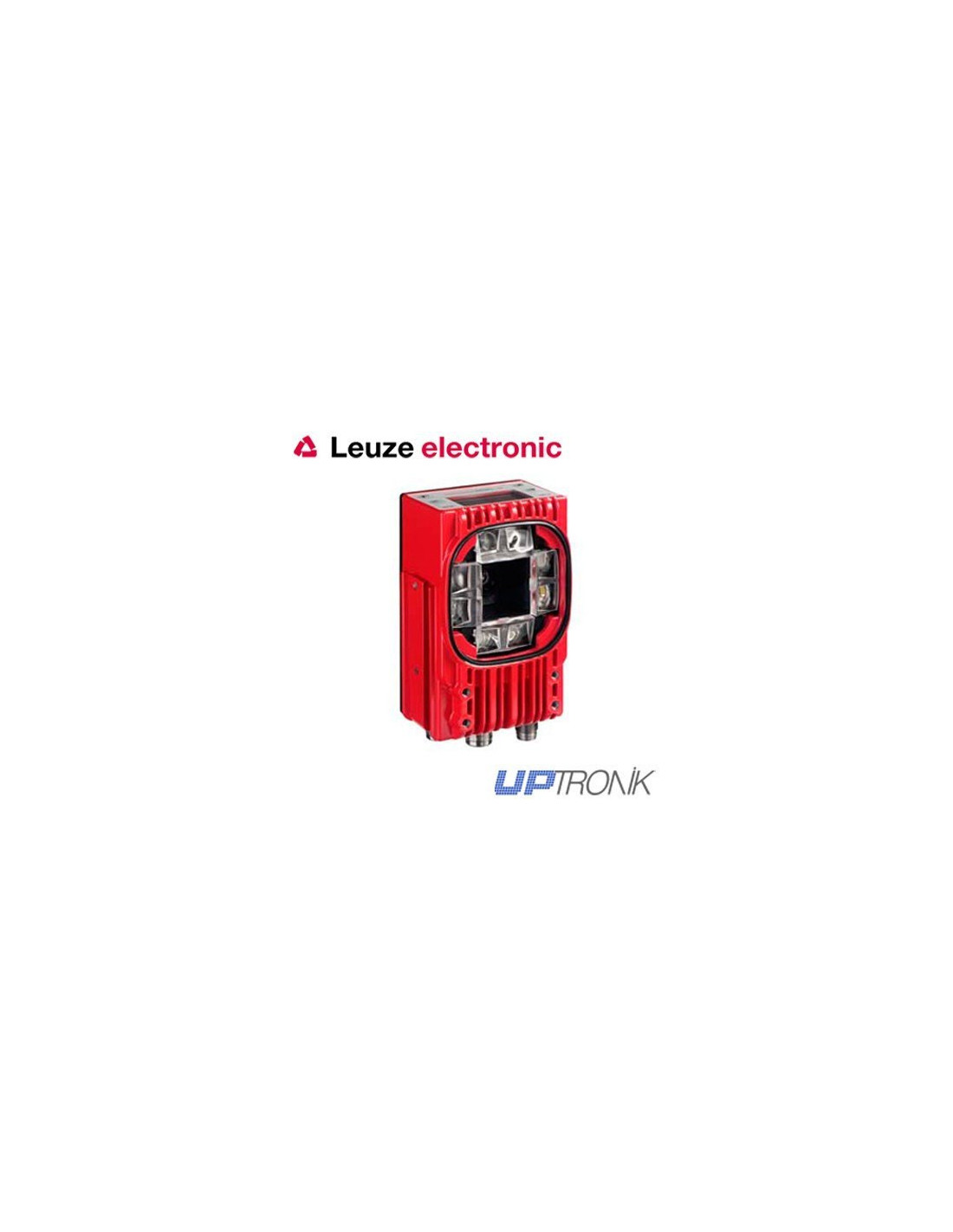

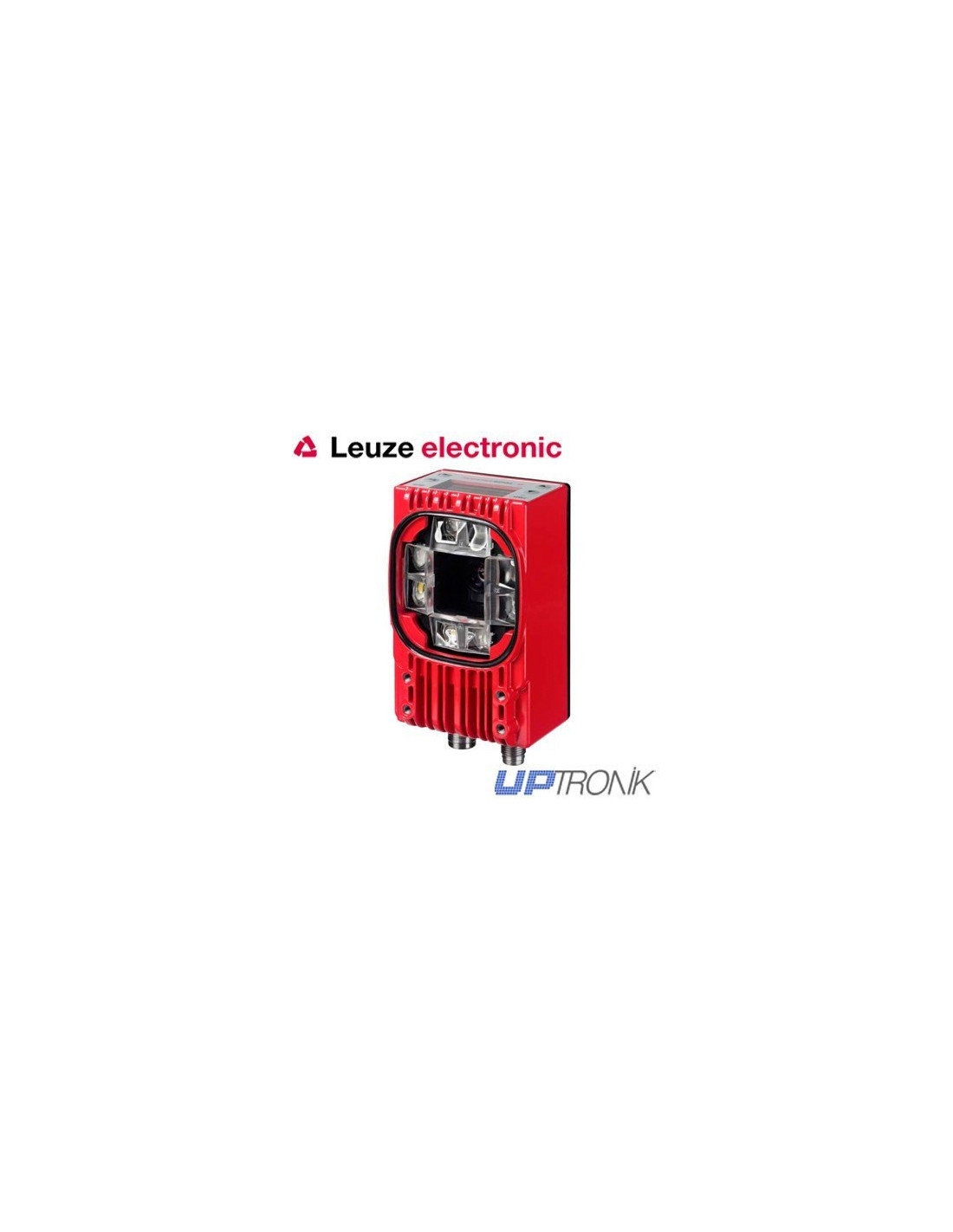

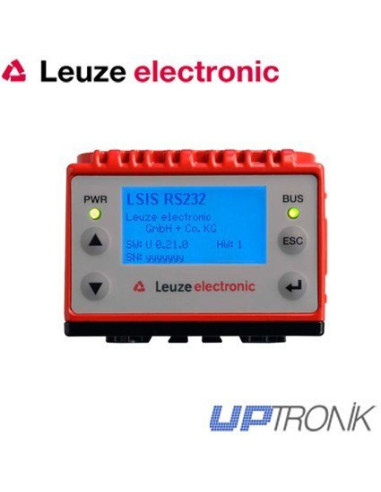

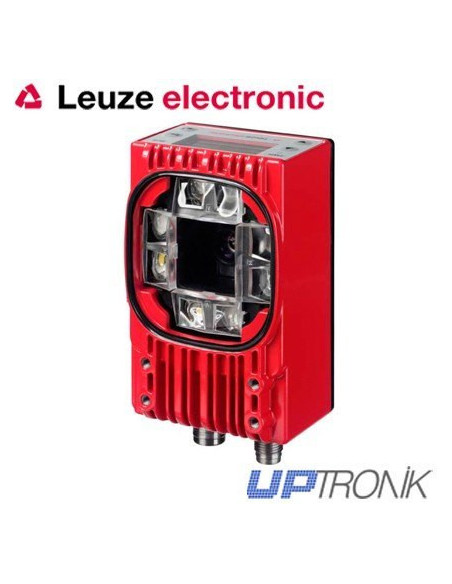

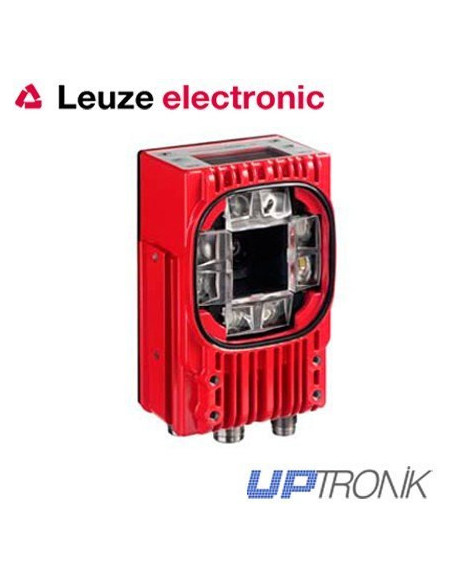

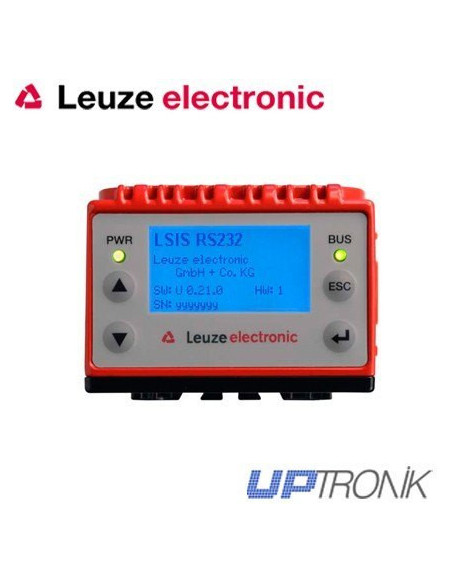

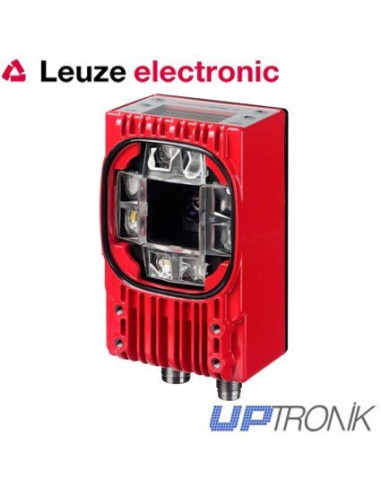

Fixed code reader 2D LSIS 422i Leuze, the best of two worlds
This device combines innovative camera technology with some developed special skills for decades in reading 1D codes. It works omnidirectionally, fast moving and even with low contrast.
FEATURES:
| Technical data |
|
| Barcode | Data Matrix code, bar code, Pharmacode |
| Sensor / Camera |
CMOS (Global Shutter) |
| Pixel resolution |
752 x 480 |
| Focal point |
50 mm ... ∞ (dist. focal 8 mm). 75 mm ... ∞ (dist. 16 mm focal length) |
| Interfaces | Integrated: Ethernet, RS 232 |
| Network Connection |
With connector unit MA 21: Multinet. With 200i/MA connector unit MA 40: PROFINET IO / RT, PROFIBUS DP, INTERBUS |
| Digital inputs / outputs |
8, configurable |
| Number of control programs |
300 than in the memory of the camera. |
| Setup / OS |
Parameterization via PC using standard web browser (tool webConfig) |
| Additional features |
Data Matrix code reading directly labeled. Reading multiple codes (up to 99 codes), display the contents of the code display, evaluation of code quality (ISO / IEC 15416, 15415 and 16022), comparison of reference codes, graphics memory. |
| Dimensions, An x Al x Pr |
75 x 113 x 55 mm |
| Features |
|
| Camera system for omnidirectional reading of 2D codes and bar codes (also moving fast). Compact housing. Lighting and decoder integrated. IP Rating 65/67. Great thanks to motorized flexibiliad targeting. |
