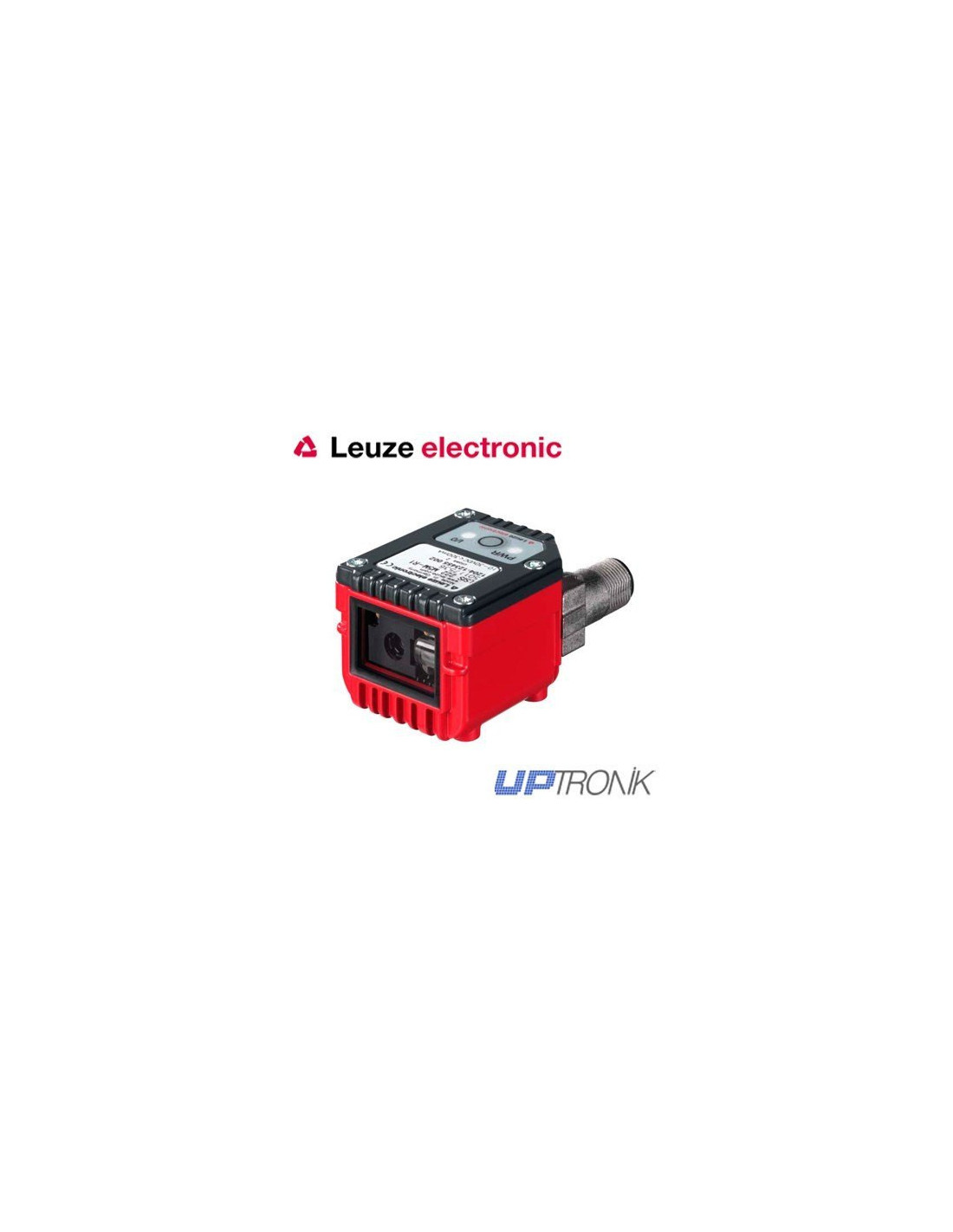

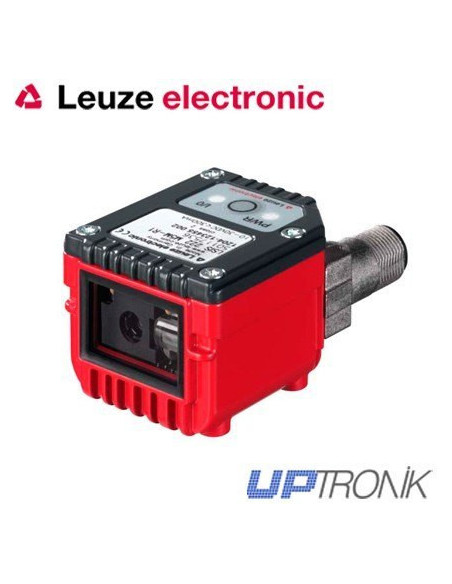

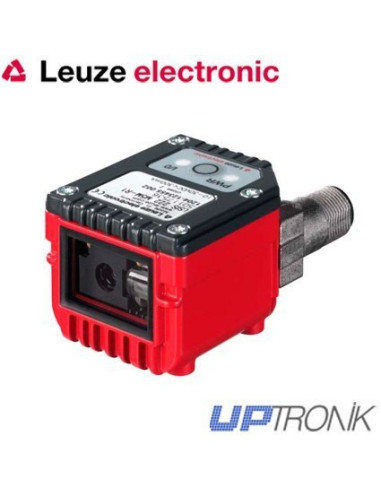

Fixed code reader 2D LSIS 220 Leuze, small, fast and very intelligent

With its optimized optics and resolution, the LSIS 220 offers great performance reserves for reliable reading of codes even in movement. Reliably and quickly detect barcodes and 2D codes Stacked Codes.



Consultar precio ahora de

Description

FEATURES:

  • Improved optical reading with a field larger and detection accuracy to marginal areas, optimized resolution of 844 × 640 pixels for quick reading codes
  • Detection of 2D codes Stacked Codes and barcodes
  • RS 232 or USB interface
  • switching input (trigger)
  • Shutter button for activation and manual parameterization
  • Excellent performance for industrial applications thanks to the design without mechanical moving parts, rugged metal housing with glass and protection class IP 65
  • Design of extremely small dimensions for easy installation also under unfavorable conditions



echnical data

Barcode Data Matrix barcode, QR-Code, PDF 417, Aztec, RSS etc
Sensor / Camera
 CMOS (rolling shutter)
Pixel resolution
 1280 x 960
Focal point
 100 mm
Interfaces Integrated: RS 232, USB
Network Connection
 With connector unit MA 2/4: Multinet. With 200i/MA connector unit MA 40: PROFINET IO / RT, PROFIBUS DP, INTERBUS, Ethernet TCP / IP, UDP
Digital inputs / outputs
 1/1
Number of control programs
 1 set of parameters in the camera memory
Setup / OS
 Parameterization via PC setup program or barcode.
Additional features
Dimensions, An x Al x Pr
 47 x 40 x 32 mm
Features

  Camera system for omnidirectional reading of 2D codes and bar codes (static). Compact housing. Lighting and decoder integrated. Protacción index IP 65.
