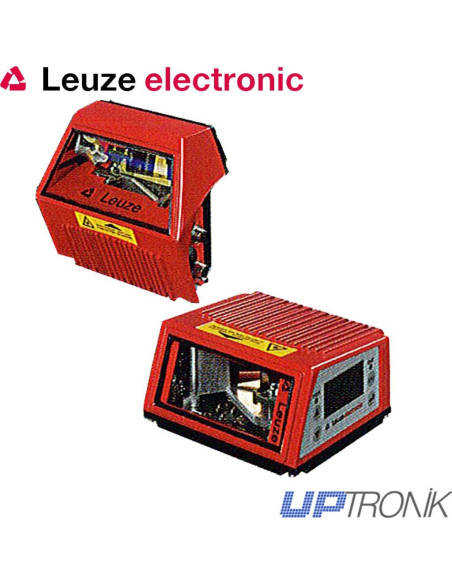

Barcode reader fixed BCL 500i
Barcode reader fixed BCL 500i

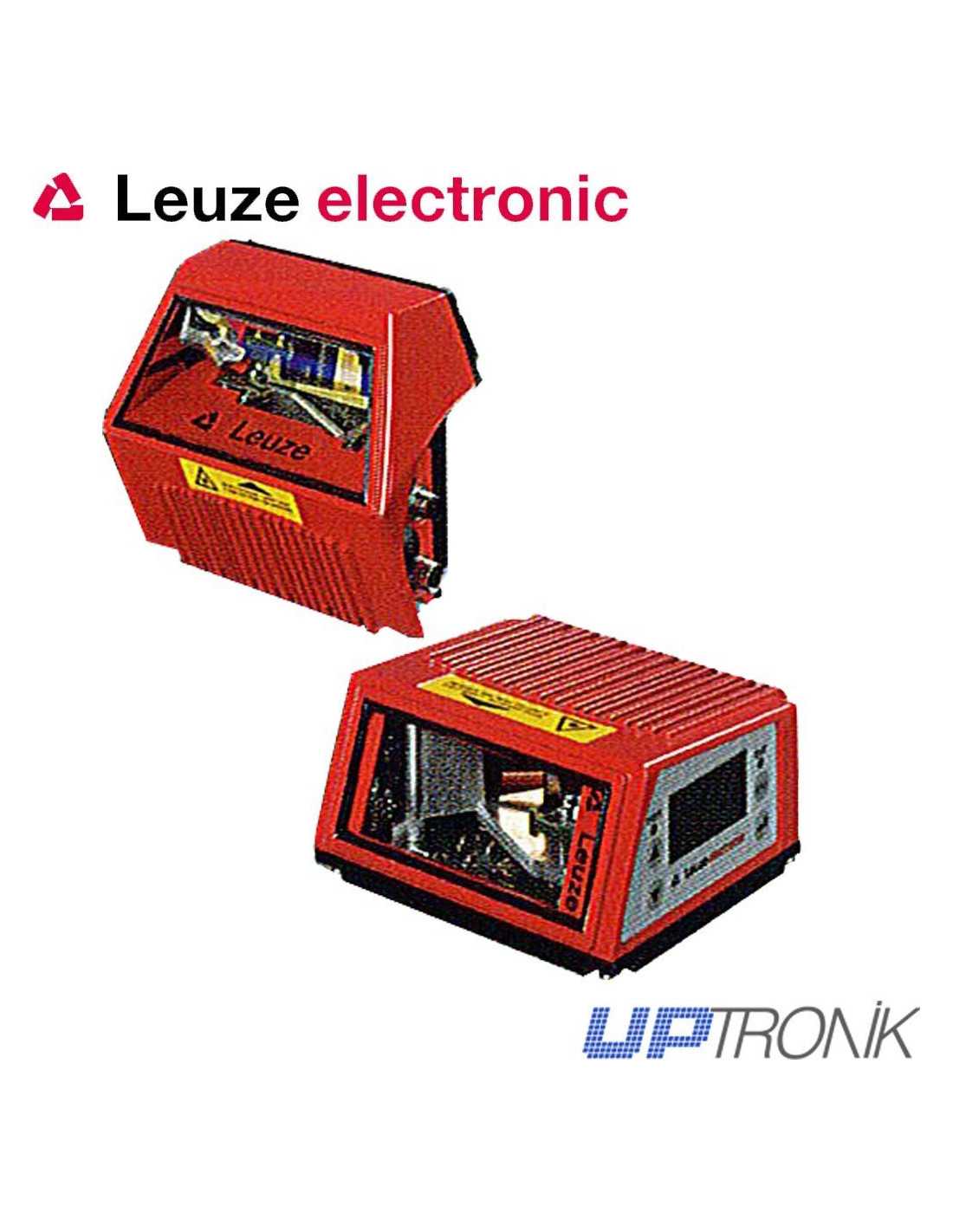

Fixed barcode reader BCL 300i

Fixed barcode reader BCL 300i Leuze bars, with code reconstruction technology

Readers fixed bar code distinguished by their modular connection system. Also they incorporate the function code reconstruction and a large number of equipment features. It is also unique in its kind modular system connection.



Consultar precio ahora de

Description

FEATURES:

  • Connectivity integrated fieldbus (PROFIBUS, PROFINET, EtherNet / IP, TCP / IP, multiNet, RS 232/422/485) with Ethernet Switch function (for linear topology)
  • Full CRT (Code Fragment Technology - code reconstruction technology) also detects heavily damaged or soiled codes
  • WebConfig tool configuration and parameterization independent web-based operating system
  • High quality optics with great depth of field and wide opening angle
  • Compact shape of the housing to a location without problems directly on the conveyor line
  • Box connectors, terminal module, modular connection box and graphic display
  • All versions of optics offer also optionally heated




Technical data

Reading distance (depending on model) 200 -2400 mm
Minimum resolution
 0,2 mm
Reading speed
 1000 scans/s adjustable, (800 - 1200 scans/s)
Type of optical
 N, M, F, L,
Reading format Laser single beam, oscillating mirror, mirror deflector, CRT - Code Reconstruction technology.
I / O
 2/2
Interfaces
 Integrated: RS 232/485/422. PROFIBUS DP, MultiNet,PROFINET IO/RT,ETHERNET TCP/IP, UDP
Power
 10 - 30 V CC
Index of protection
 IP 65
Teacher Network
 Integrated
Accessories

Mounting systems
 BT 56, BT 59
Features

  Connect with integrated fieldbus. CRT - Code Reconstruction technology. Software <<webConfig >>  integrated into the equipment allows parameterization without additional software. Patalla readable menu in multiple languages. M12. Fieldbus connection with the convenient integrated fieldbus coupling and interconnection network. Code rescontrucción Technology (CRT) for secure identification codes deteriorated. Optionally heated to -35 ° C.
