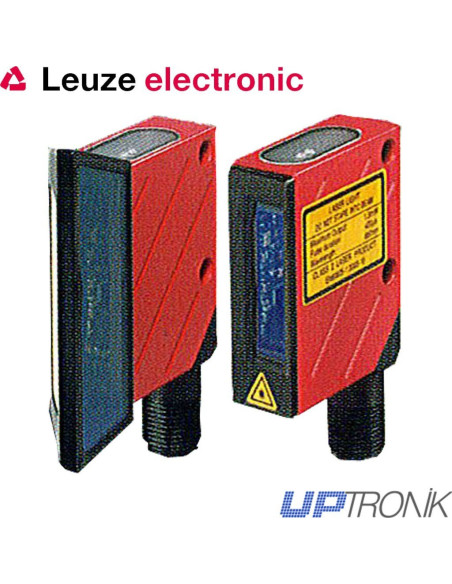

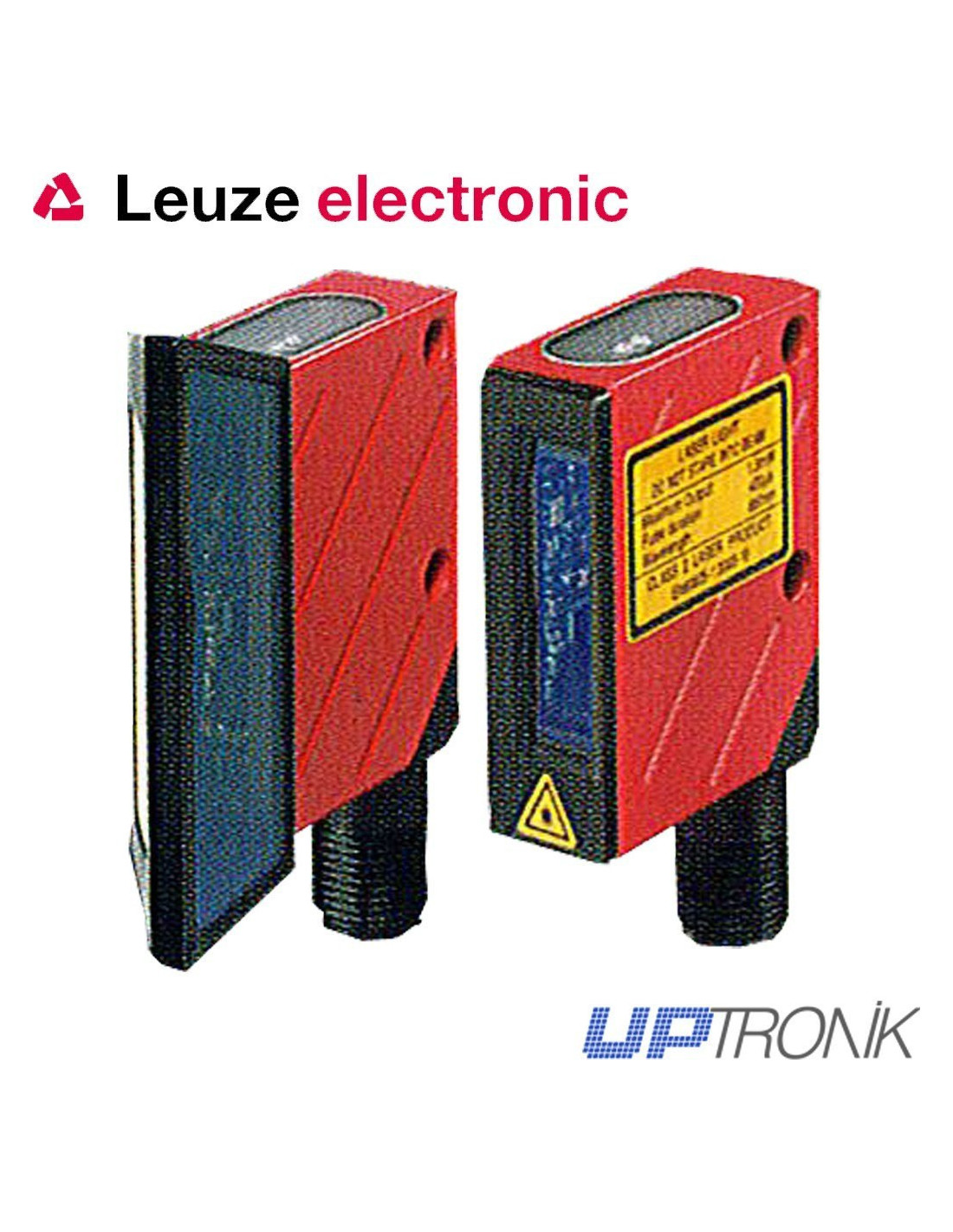

Barcode reader fixed BCL 8
Barcode reader fixed BCL 8

Fixed barcode reader BCL 8

Fixed barcode reader BCL 8 Leuze

The barcode reader BCL 8 has an integrated system for all commonly used barcodes, including pharmaceutical codes decoder. Made of metal casing for use in the most demanding industrial environments.



Consultar precio ahora de

Description

FEATURES:

  • Ultracompact design when there is little mounting space, eg printers or packaging systems / packaging
  • Great reading field with great depth of field module resizable
  • autoConfig automatically detects the type of code to read
  • autoReflAct allows automatic shooting without additional photocell
  • M12 connection system and pre-assembled cables
  • Numerous connection units MA 8 / MA 200i series for all bus systems (PROFIBUS, PROFINET, DeviceNet, Ethernet TCP / IP, Ethernet / IP, Ethercat or CANopen).
  • RS 232 interface (with the ability to switch to integrated Daisy Chain)




Technical data

Reading distance (depending on model) 40 -160 mm
Minimum resolution
 0, 125 mm
Reading speed
 600/500 scans / s
Type of optical
 N, M
Reading format Laser single beam
I / O
 1/1
Interfaces
 Integrated: RS 232
Network Connection
 With connector unit MA 8: RS 485. With 200i/MA connector unit MA 40: PROFINET IO / RT, PROFIBUS DP, INTERBUS, Ethernet TCP / IP, UDP
Power
 5 V DC (10 - 30 V DC via MA 8.1)
Index of protection
 IP 67
Teacher Network
 MA 31
Accessories

Mounting systems
 BT 8
Features

  Reads all 1D codes including Pharmacode normally used. Industrial version with metal housing - IP 67. M12 connector or cable. Comparing the reference code.
