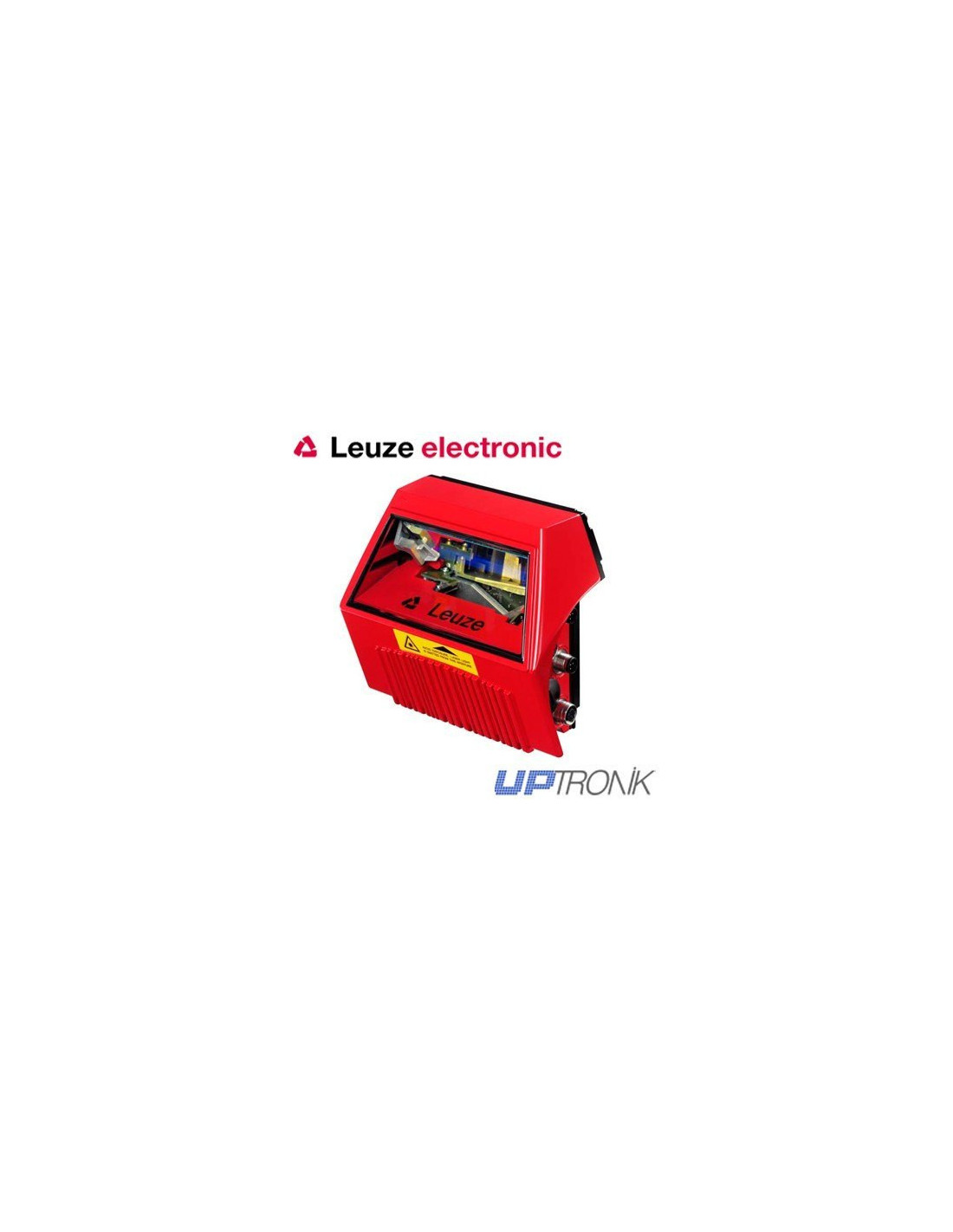

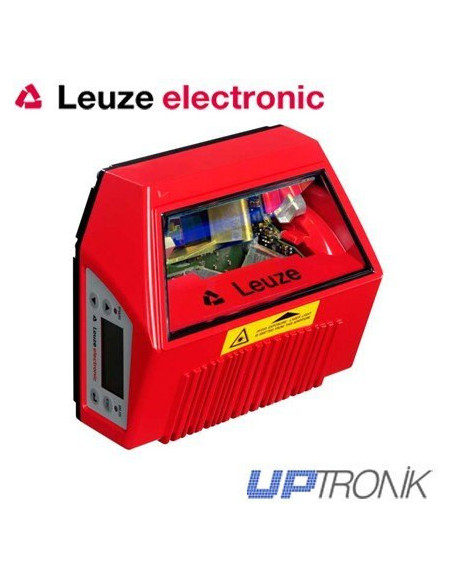

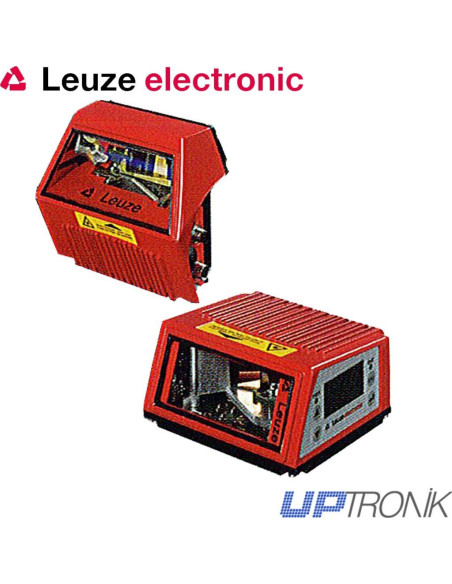

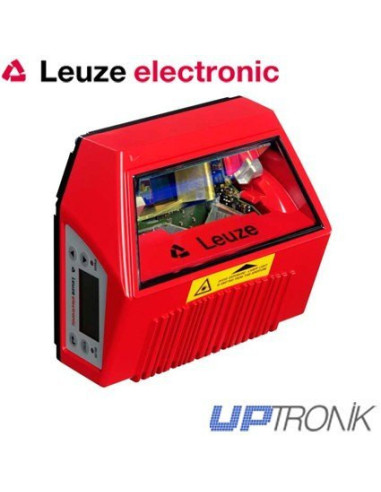

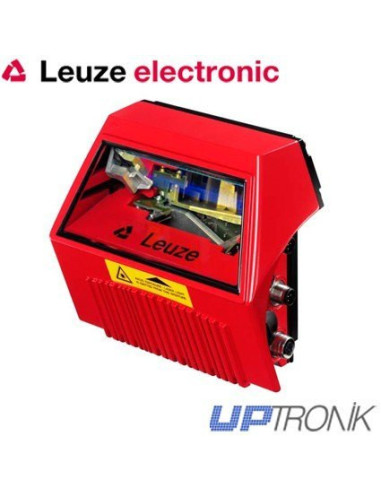

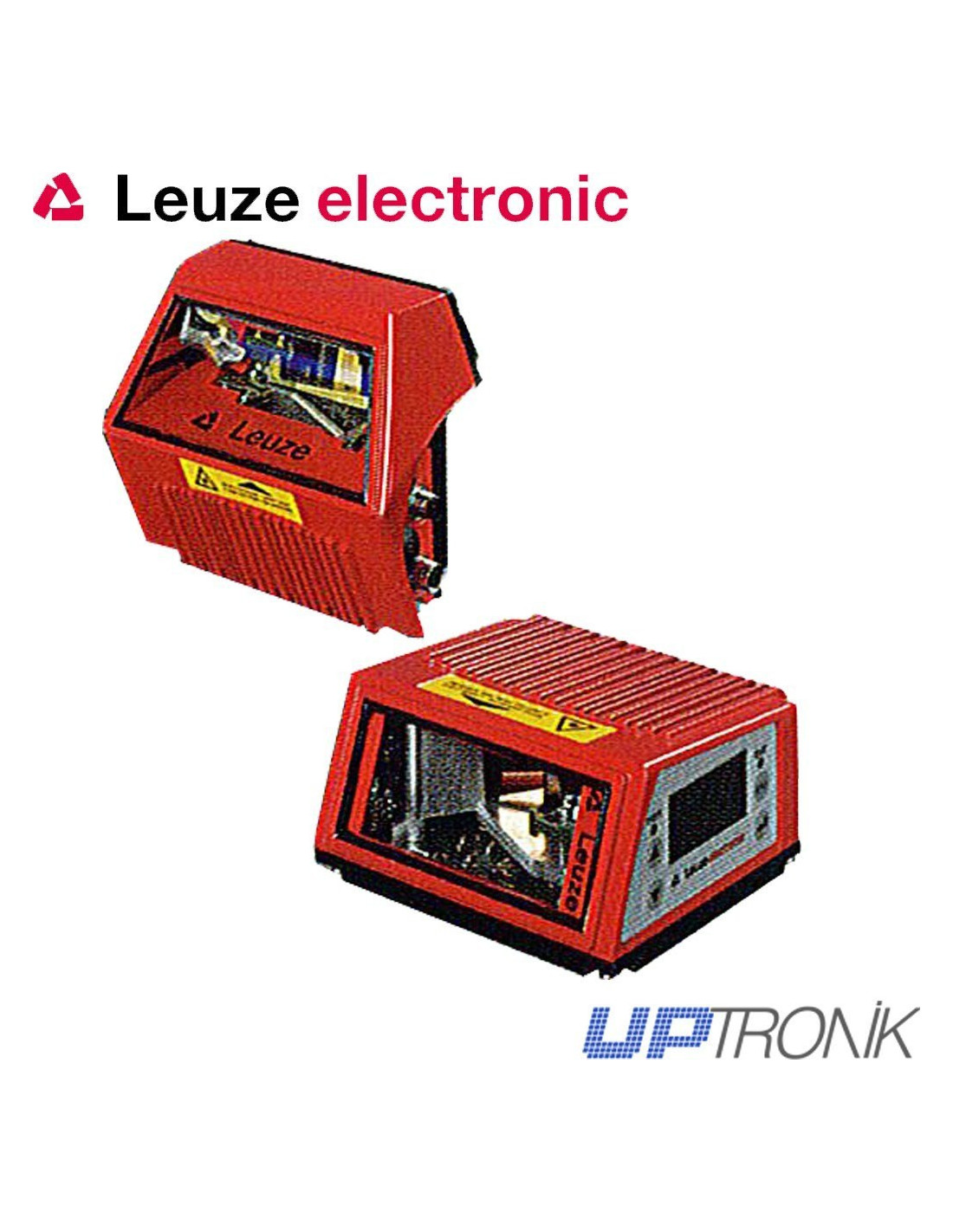

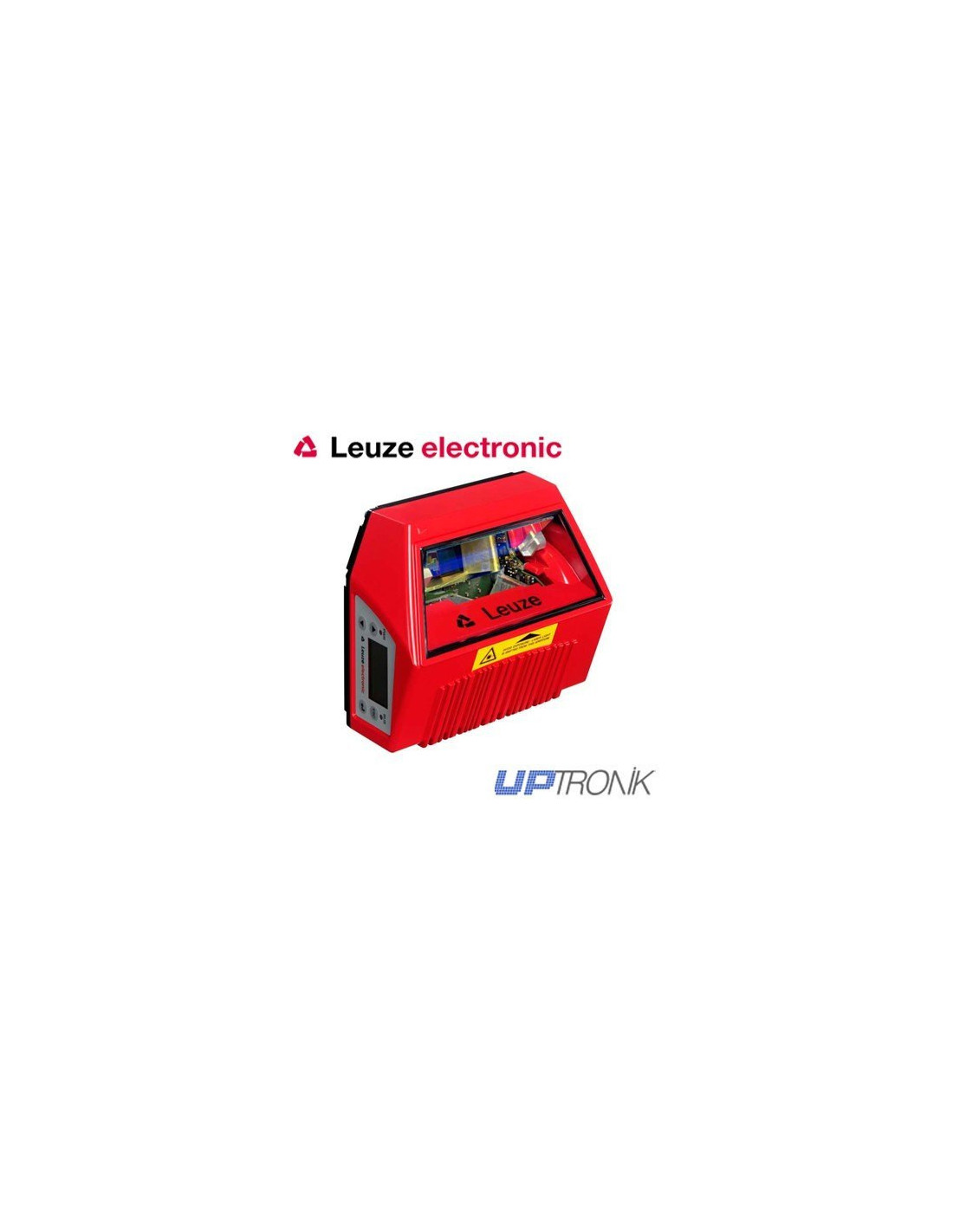

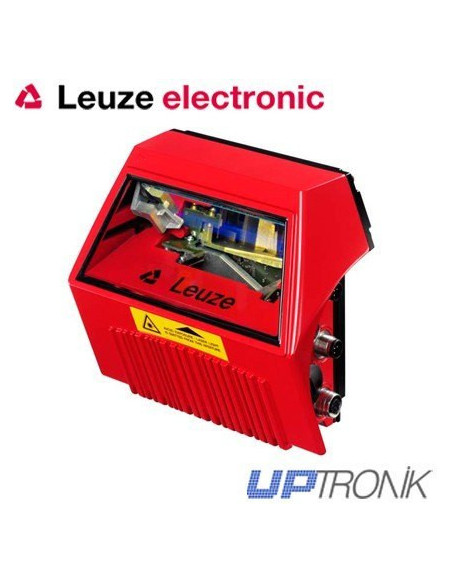

Fixed barcode reader BCL 500i Leuze, Optimal connectivity

The integrated fieldbus connectivity is one of the main features of this series of bar code readers focused on the future. The configuration is done with a graphical user interface based on Web technology.




Consultar precio ahora de

Description

FEATURES:

  • Integrated Industrial Ethernet and fieldbus (PROFIBUS, PROFINET, EtherNet, EtherNet / IP and MULTINET) Connectivity
  • Full CRT (Code Fragment Technology - code reconstruction technology) also detects heavily damaged or soiled codes
  • High quality optics with great depth of field and wide opening angle, also in optic heated to -35 ° C
  • Commissioning and easy connection with M12 connection system Ultra-Lock ™ and intelligent fastening concept
  • Intuitive multi-language display with menu guide
  • WebConfig tool configuration and parameterization independent web-based operating system




Technical data

Reading distance (depending on model) 200 -2400 mm
Minimum resolution
0,2 mm
Reading speed
1000 scans/s adjustable, (800 - 1200 scans/s)
Type of optical
N, M, F, L,
Reading format Laser single beam, oscillating mirror, mirror deflector, CRT - Code Reconstruction technology.
I / O
2/2
Interfaces
Integrated: RS 232/485/422. PROFIBUS DP, MultiNet,PROFINET IO/RT,ETHERNET TCP/IP, UDP
Power
10 - 30 V CC
Index of protection
IP 65
Teacher Network
Integrated
Accessories

Mounting systems
BT 56, BT 59
Features

  Connect with integrated fieldbus. CRT - Code Reconstruction technology. Software <<webConfig >>  integrated into the equipment allows parameterization without additional software. Patalla readable menu in multiple languages. M12. Fieldbus connection with the convenient integrated fieldbus coupling and interconnection network. Code rescontrucción Technology (CRT) for secure identification codes deteriorated. Optionally heated to -35 ° C.
