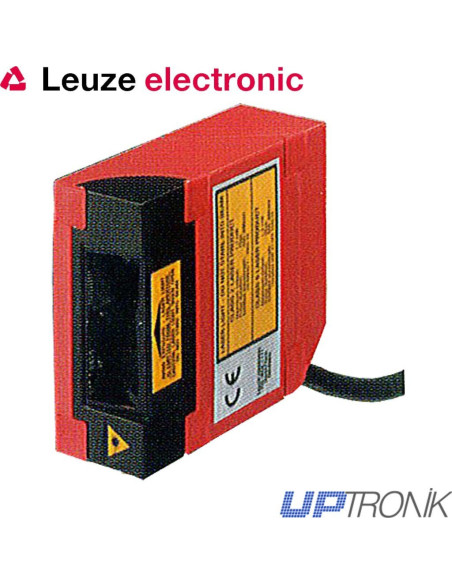

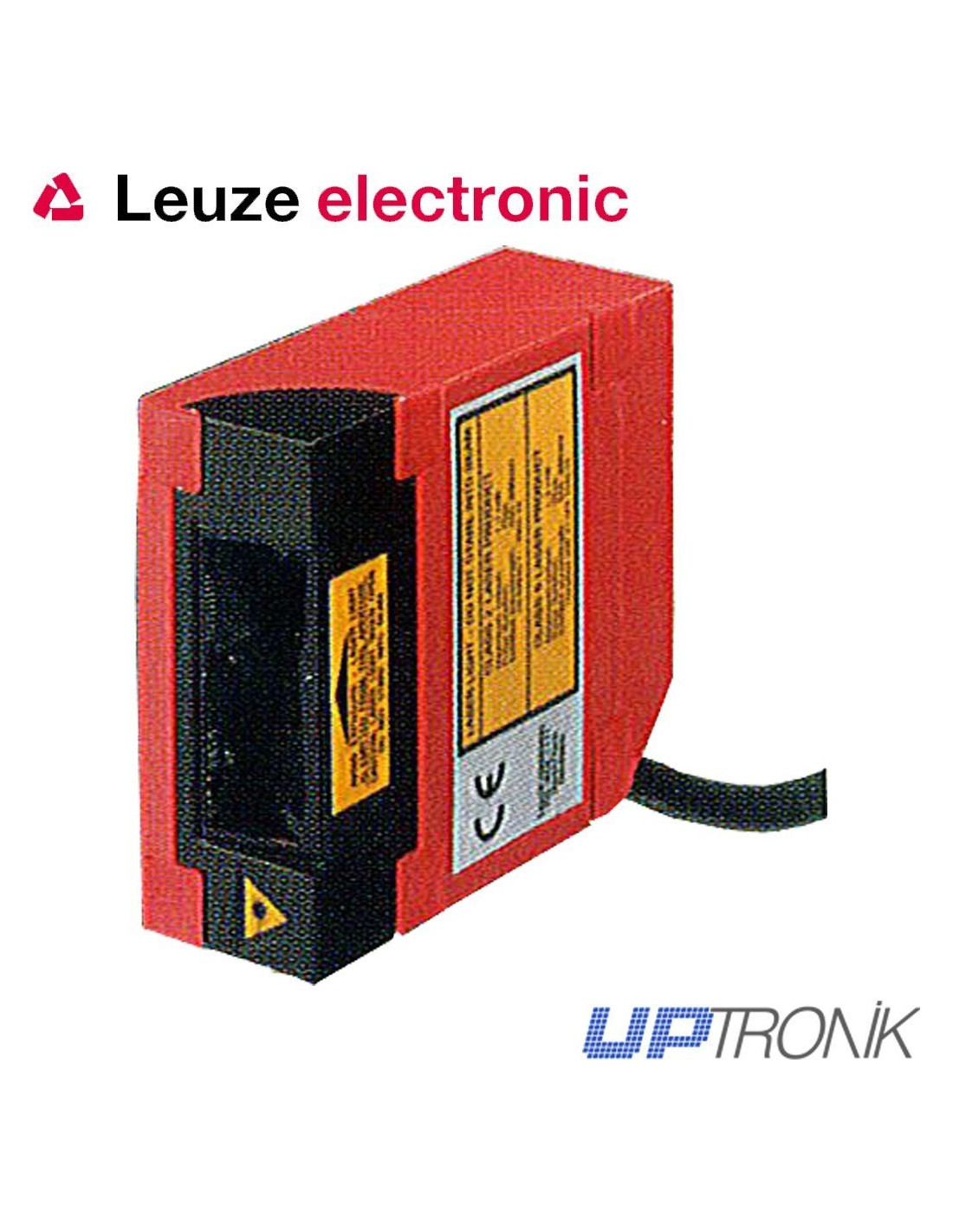

Fixed barcode reader BCL 21/22 Leuze, high-Speed
Reader fixed bar code high-speed connection more likely suitable for industrial environments, and also has memories failsafe parameters.
FEATURES:
| Technical data |
|
| Reading distance (depending on model) | 50 -450 mm |
| Minimum resolution |
0,15 mm |
| Reading speed |
1000/800 scans / s |
| Type of optical |
N, M, F |
| Reading format | Single-beam laser, multibeam scanning (raster) |
| I / O |
1/1 o 2/2 |
| Interfaces |
Integrated: RS 232, RS 485 |
| Network Connection |
With connector unit MA 2/4: MultiNet. With 200i/MA connector unit MA 40: PROFINET IO / RT, PROFIBUS DP, INTERBUS, Ethernet TCP / IP, UDP |
| Power |
10 - 30 V CC |
| Index of protection |
IP 65 |
| Teacher Network |
MA 31 |
| Accessories |
|
| Mounting systems |
BT 20, BT 21 |
| Features |
|
| Automatic detection of the type and quality of the code. Safe storage of parameters. |
