SLSR 46B light beam safety devices
SLSR 46B light beam safety devices
SLSR 46B light beam safety devices
SLSR 46B light beam safety devices

SLSR 46B light beam safety devices

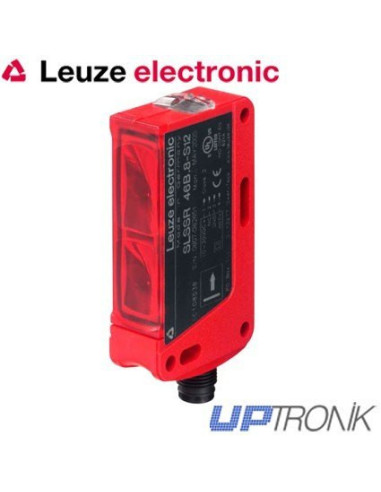

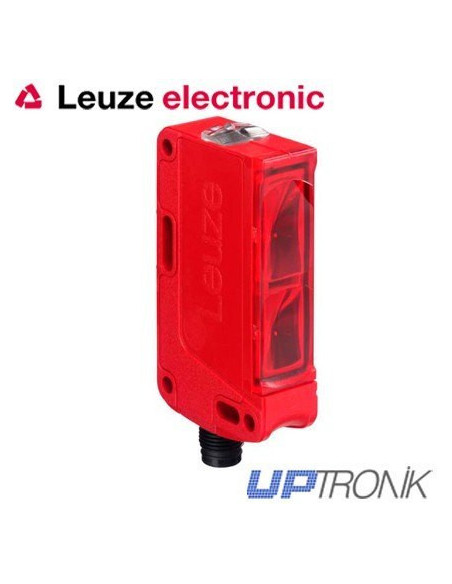

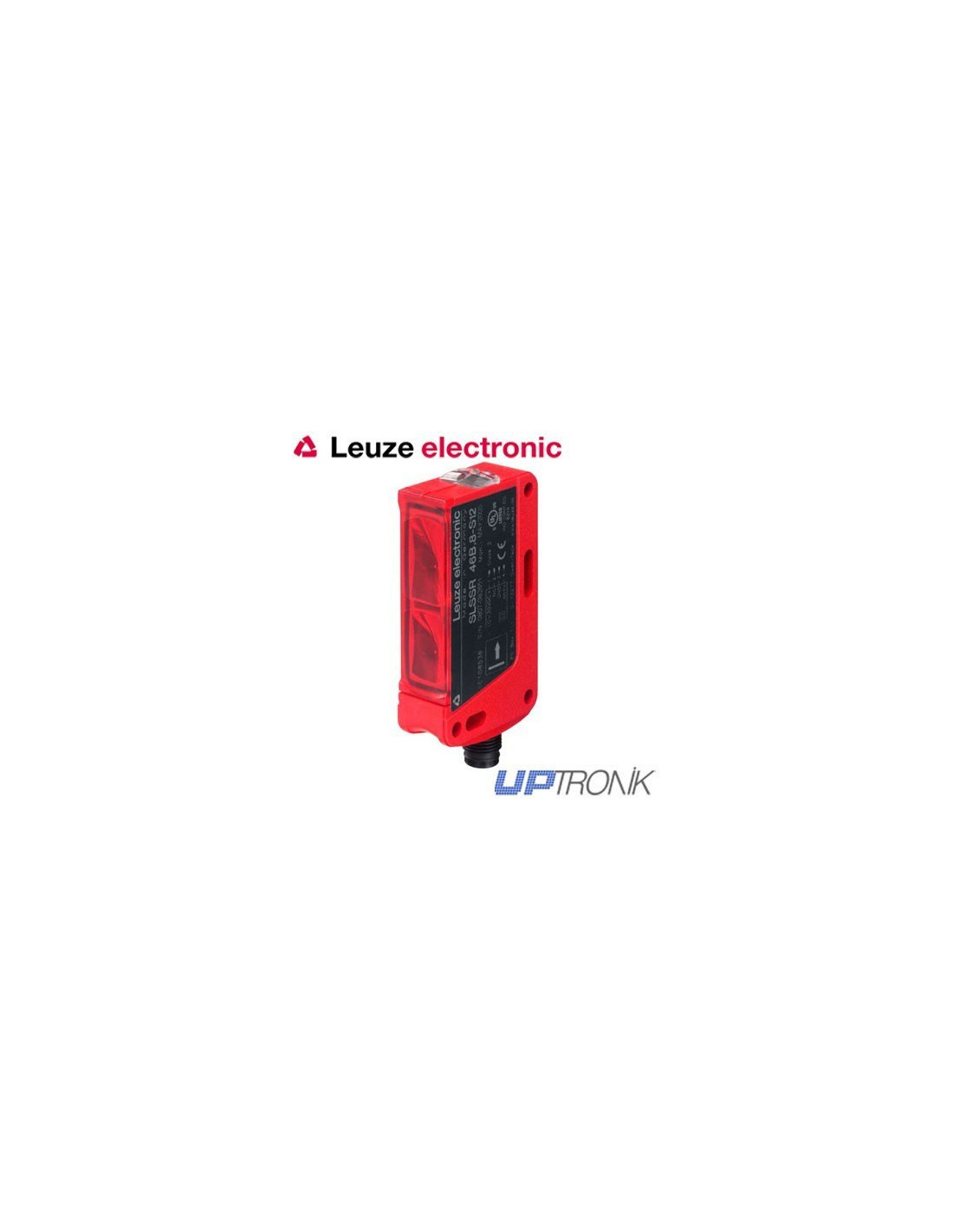

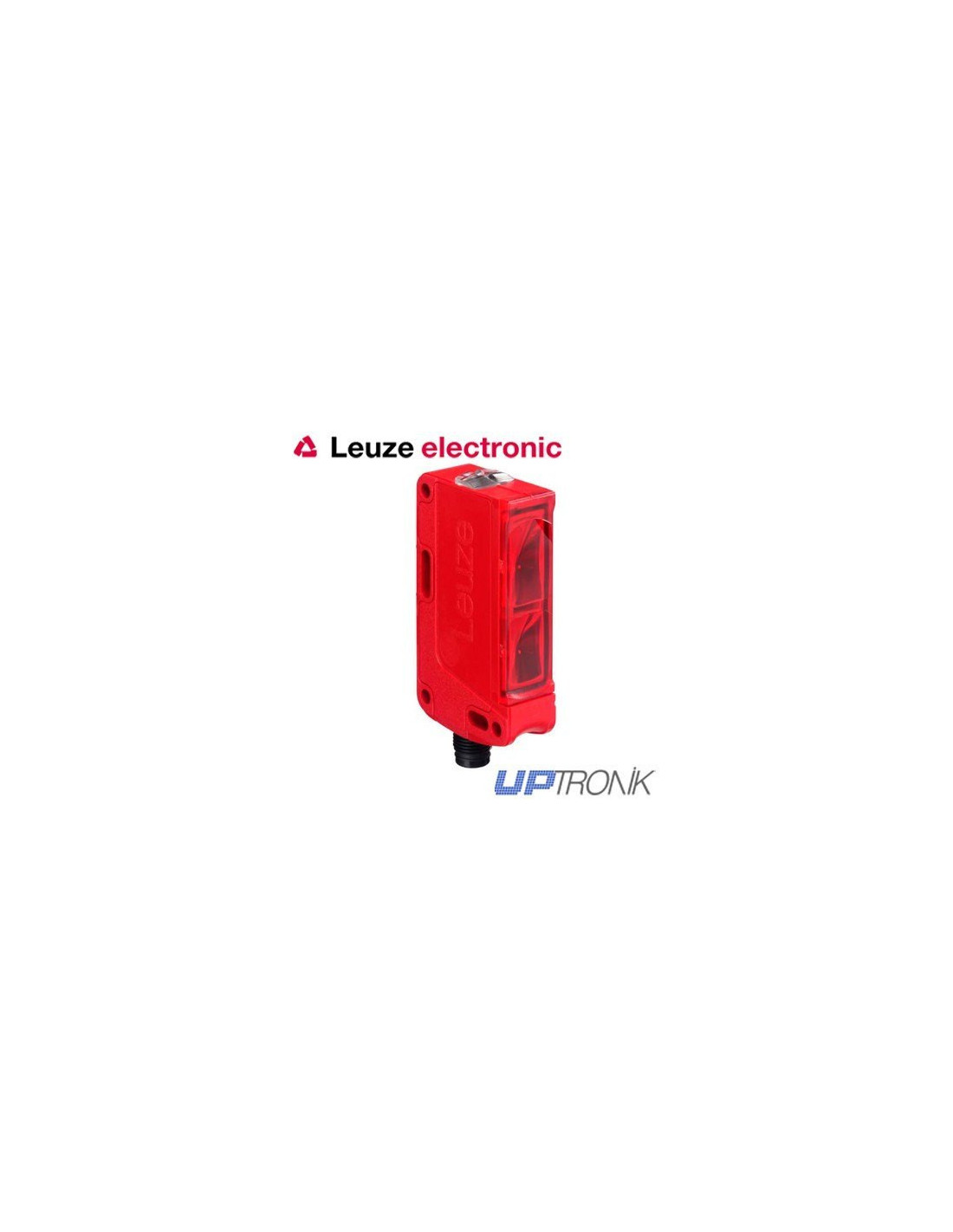

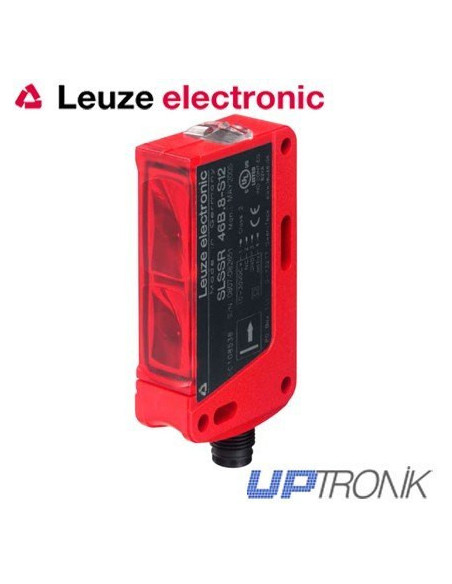

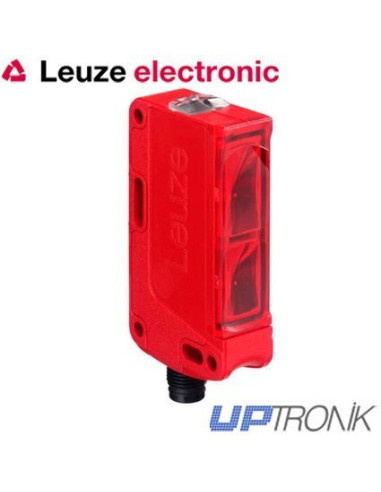

The SLSR 46B Leuze light beam safety device convinces with ranges of up to 40 m at an attractive price. With the aid of the LED on the receiver, it can very easily be aligned and adjusted. Its status display is highly visible over the entire range for reliable operation.

Consultar precio ahora de

Description

FEATURES:

  • Single Light Beam Safety Device with visible red light and high functional reserve
  • Solid plastic housing with degree of protection IP 67 for industrial use
  • Wide voltage range from 10 to 30 V with pnp transistor output for PLC applications
  • Clearly visible alignment indicator in the front screen



Technical data

Type in accordance with IEC / EN 61496 Type 2 with unit test
Scope
 0,5 ... 40 m
Power UB
 10 ... 30 V DC (including ripple)
Operating temperature
 -30 ... + 55 ºC
Dimensions, An x Al x Pr 18,5 x 77 x 43 mm
Housing Plastic
Departures
 Push-Pull 2 outputs (opti)
Connection system
 Cable 2 m. M12
Functions

  Display LED test trigger input and serial connection, active suppression of ambient light (A2LS).
Features

  Single beam safety barriers with high reserve function. Caracasa solid plastic IP 67 protection rating. Wide voltage range from 10 to 30 V with output PNP transistor. Alignment signal LED visible in front window.
