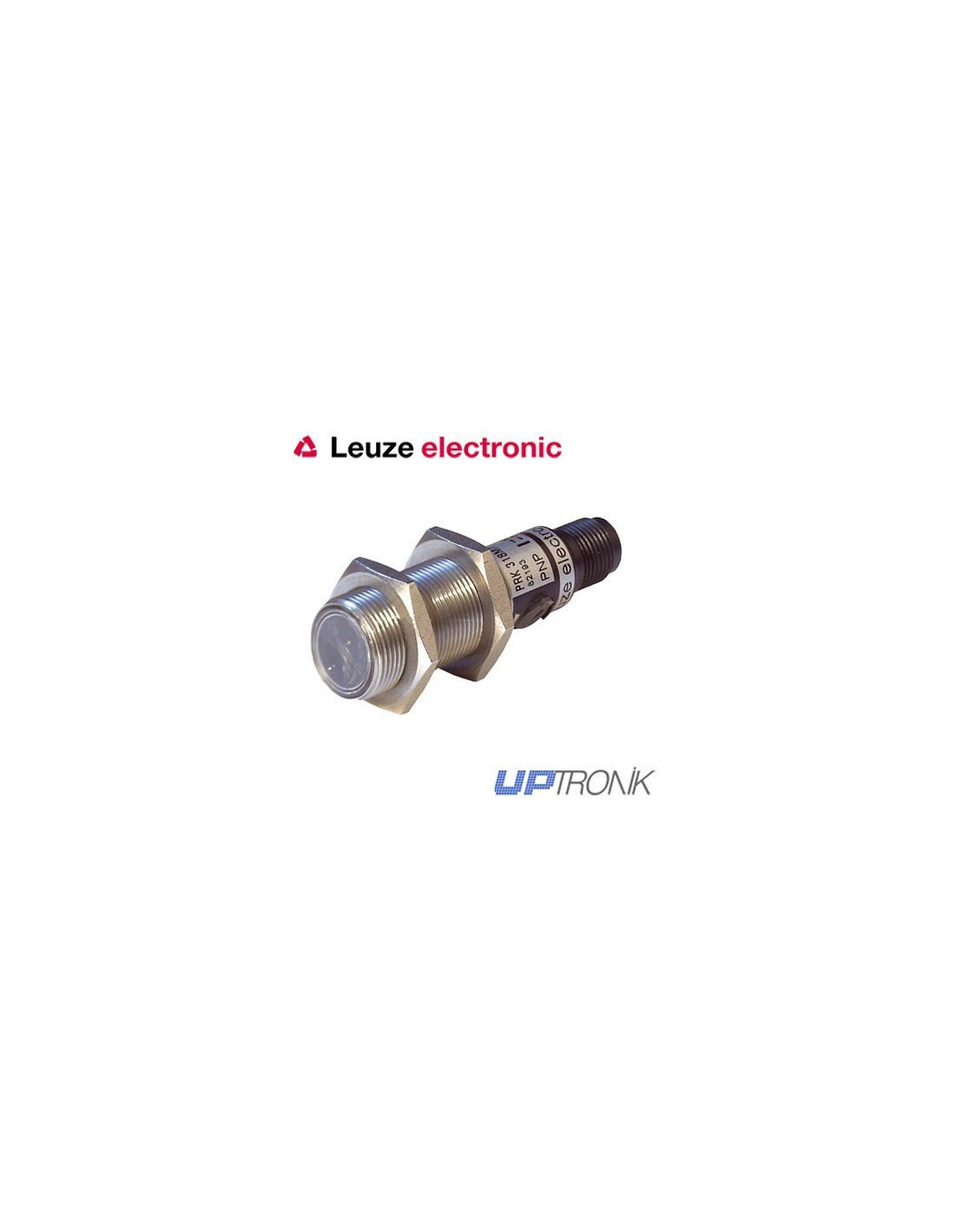

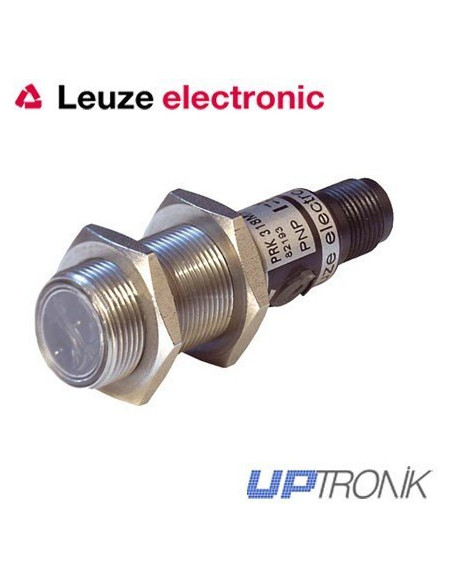

Leuze SLS 318 light beam safety devices, when space is tight

The case often arises in which single beam safety devices have to be integrated into very tight installation areas. In this instance, SLS 318 protective sensors are the preferred choice. Because of their slender cylindrical construction they can be mounted quickly and easily, even in areas where space is restricted.



Consultar precio ahora de

Description

FEATURES:

  • Protective throughbeam photoelectric sensors with high performance reserve in visible red light and straight optics
  • Sturdy stainless steel or plastic housing with cylindrical M18 design
  • Degree of protection IP 67 for industrial application
  • Activation input for testing and interlinking of the sensor
  • Complementary switching outputs for light/dark switching or as a control function
  • Very short construction for application in limited spaces
  • LED display in transmitter and receiver




Technical data

Type in accordance with IEC / EN 61496 Type 2 with unit test
Scope
 0 ... 10 m
Power UB
 10 ... 30 V CC
Operating temperature
 -25 ... + 65 ºC
Dimensions, An x Al x Pr Cylindrical design M18 x 1
Housing Plastic. Metal housing, to consult.
Departures
 PNP output transistor
Connection system
 Cable, 2 m. M12
Functions

  Display LED test trigger input and serial connection.
Features

  Protection rating IP 67. 2 switching outputs for opti-light / dark or control function. Red light visible in optical line. Switching frequency 1000 Hz Sensitivity adjustment.
