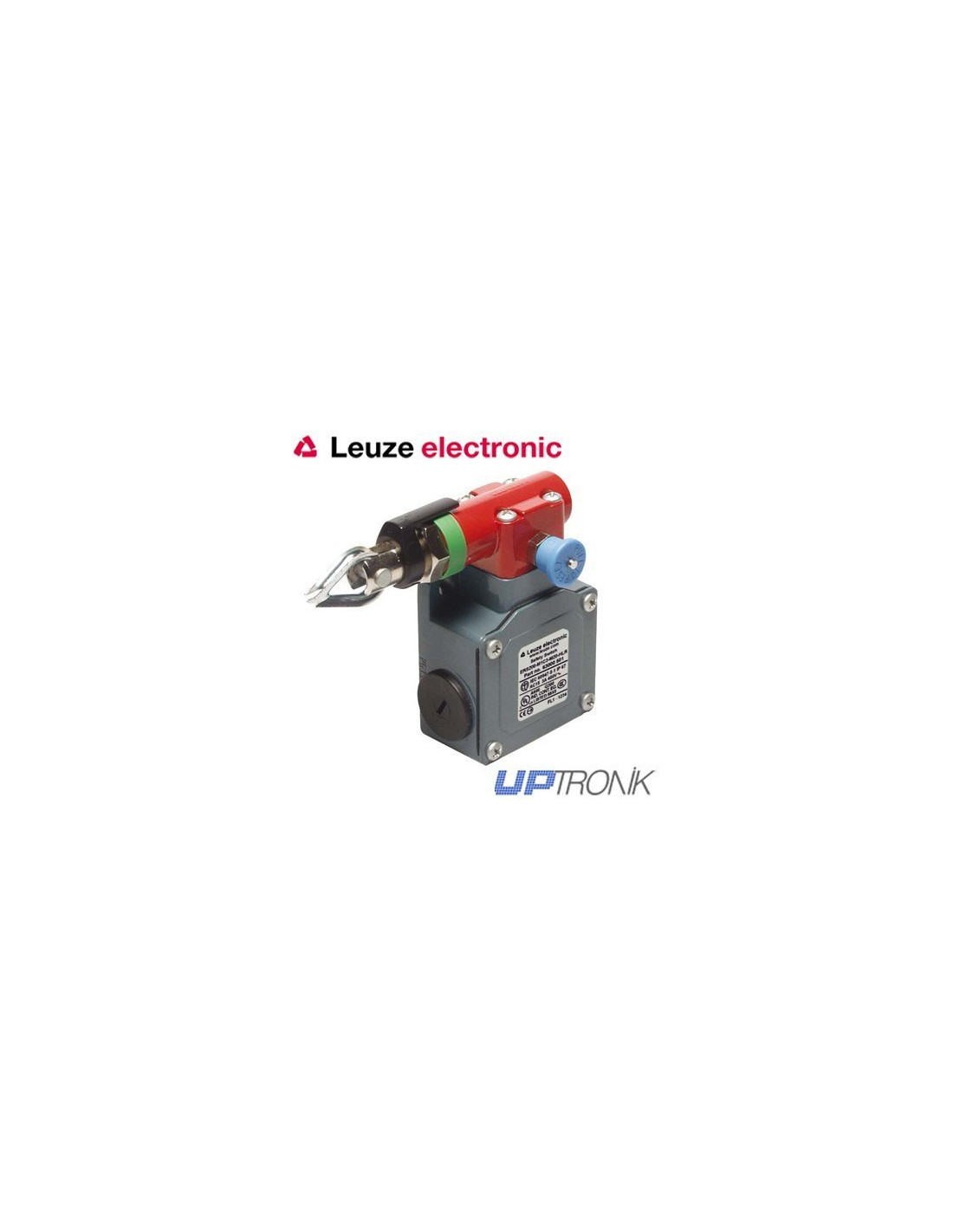

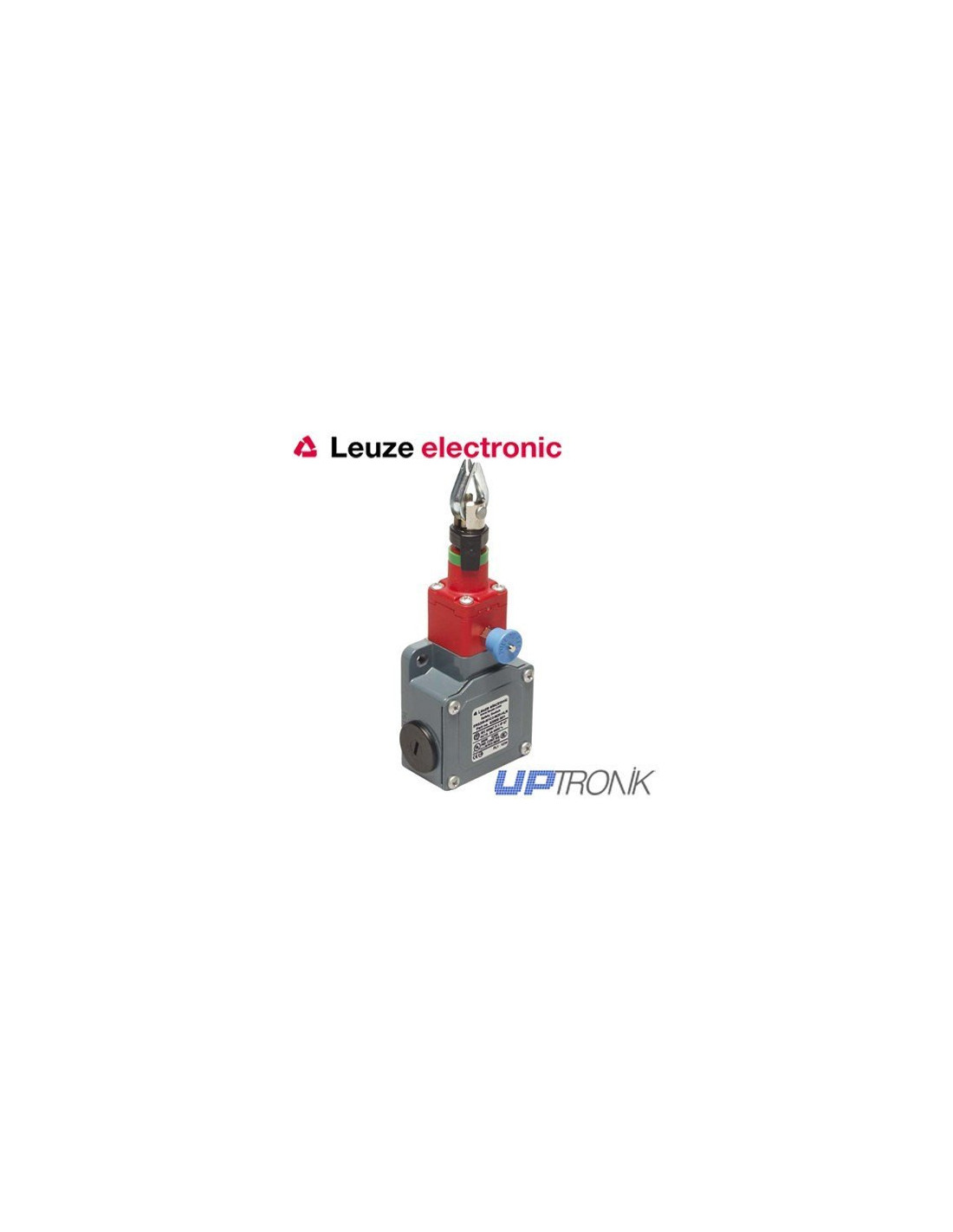

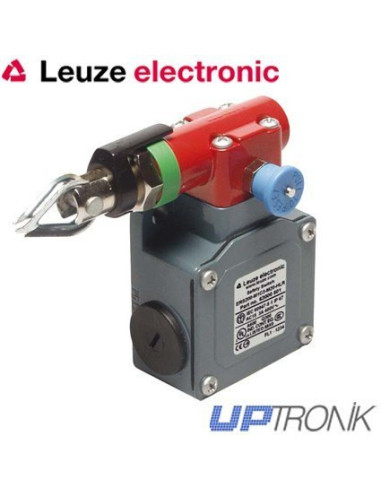

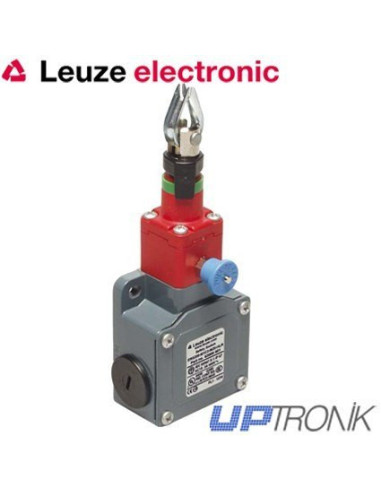

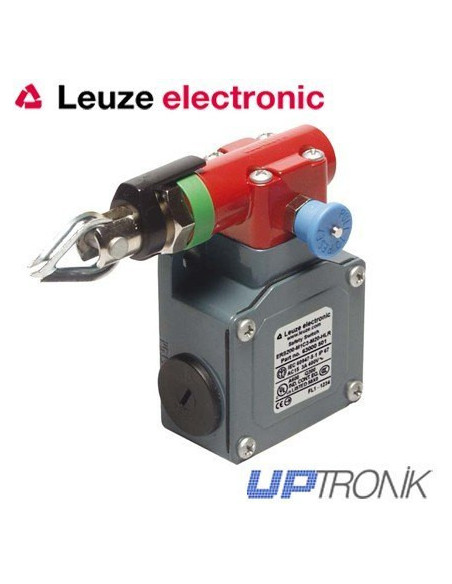

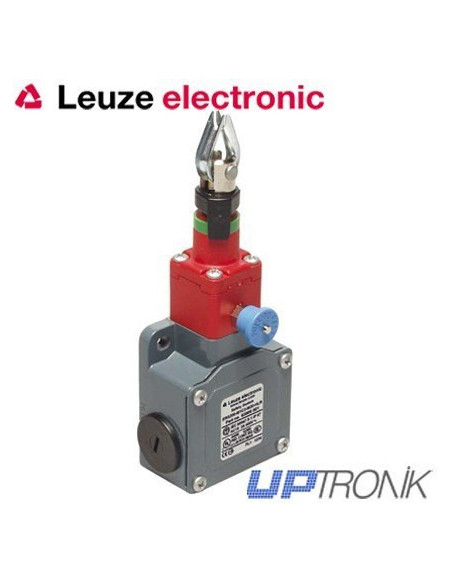

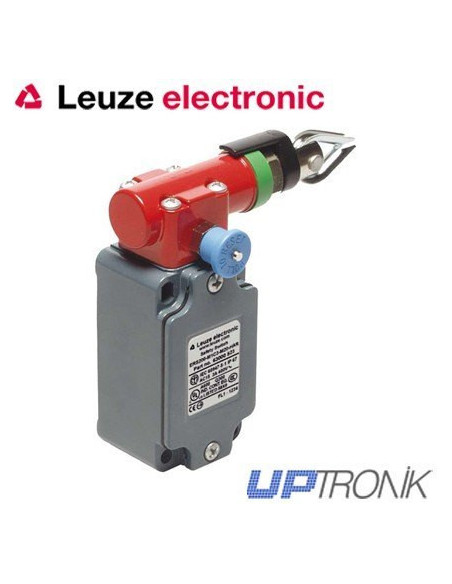

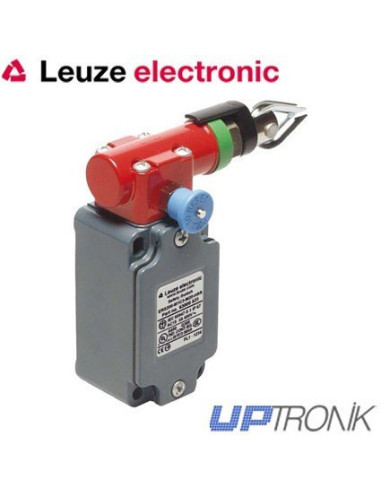

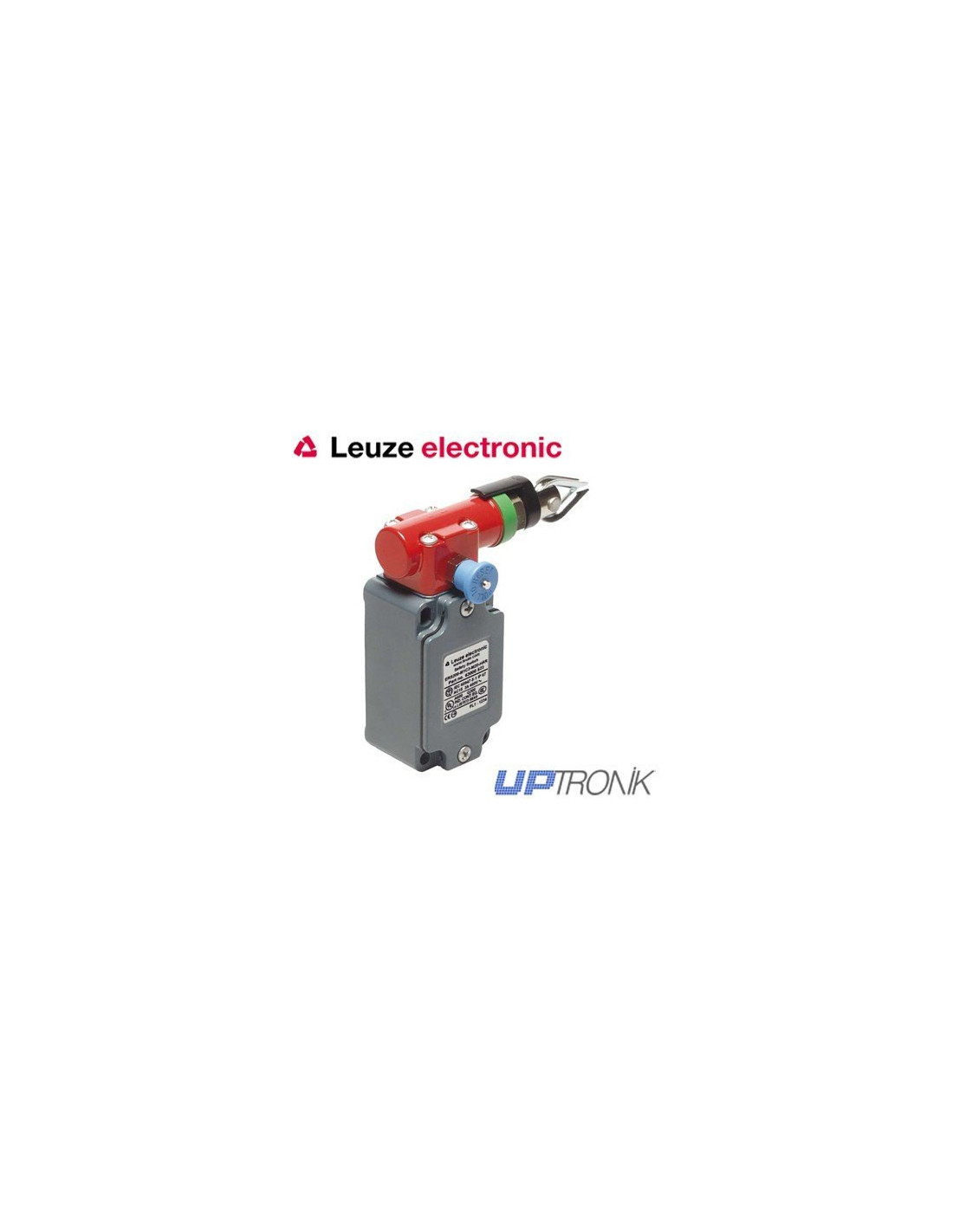

The Leuze ERS200 E-Stop rope switch is a safety command device in accordance with EN ISO 13850 and EN 60947-5-5 and is used with preference with expansive points of operation. The rope-pull activation guarantees that it is easy to reach all along the point of operation.

Consultar precio ahora de

Description

FEATURES:

  • Pulling the rope or rope fracture safely stops the machine
  • Clicks in on both sides with friction-locking contacts
  • Easy alignment with switching point indicator
  • Easy integration with 3 cable approach directions
  • Compact metal housing, degree of protection IP 67
  • Reset button with status display
  • Temperature compensation for longer rope lengths



Technical data

Type Control unit emergency stop cable according to EN 60947-5-5
Housing / Protection Index
 Metal, IP 67
Actuator
 Emergency stop switch cable internally.
Direction of action
 Via cable (removed: 83 N, lower: 63 N, extract - mandatory separation: 90 N)
Connection system Cable entry type M20 x 1.5 (3 times)
Functions

  Integration in control systems up to Category 4 to EN ISO 13849 or EN 954-1, orderly introduction of independent emergency stop position, function reset (reset button with indicator), Head of cable adjustment indicator.
Features

  Pulling or break the cable is a clean shutdown of the machine. Simple adjustment by means of the switch point indicator. Integrating easily with 3-way cable. Biteral interlock with positive opening contacts. Compact metal housing.
