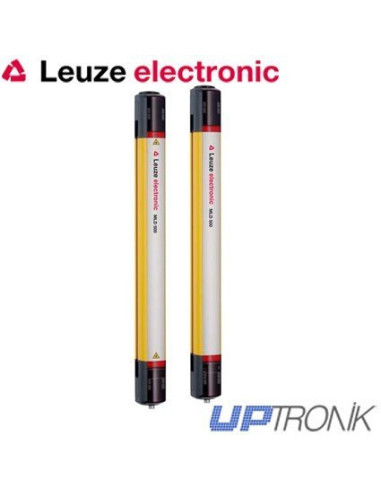

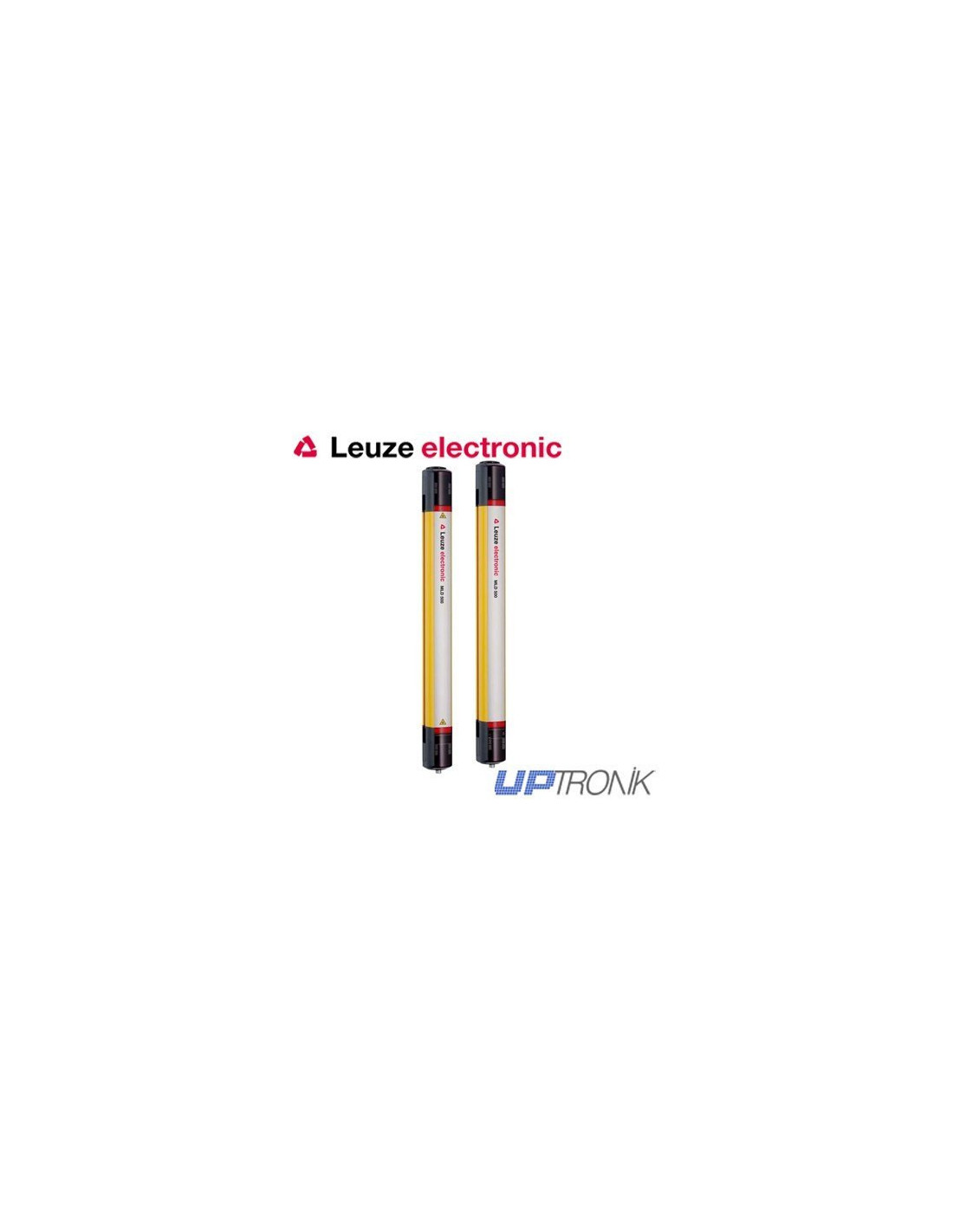

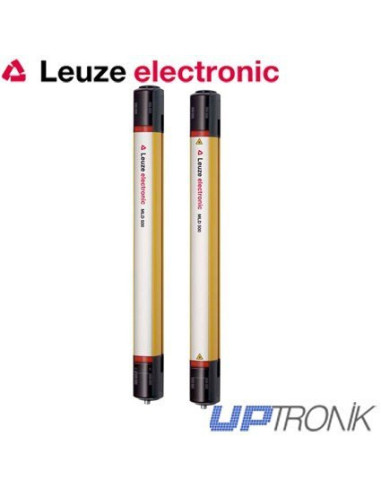

Leuze Multiple light beam safety devices MLD 500, cost-effective alternative

This series of type 4 can be used both as access protection and muting applications. Thanks to the different classes of operation (MLD 510, 520, 530, 535) can always select the optimum version. No need for a parameterization with PC or DIP switch.

Consultar precio ahora de

Description

FEATURES:

  • Version available as 3-beam transceiver
  • Interface optionally with integrated AS-i Safety
  • Built muting function, no additional muting modules are required
  • The parameterization is effected simply by wiring, ie no software required, PC or DIP switches
  • Changing simple equipment via Plug & Play without programming
  • Can be used with low temperatures down to -30 ° C

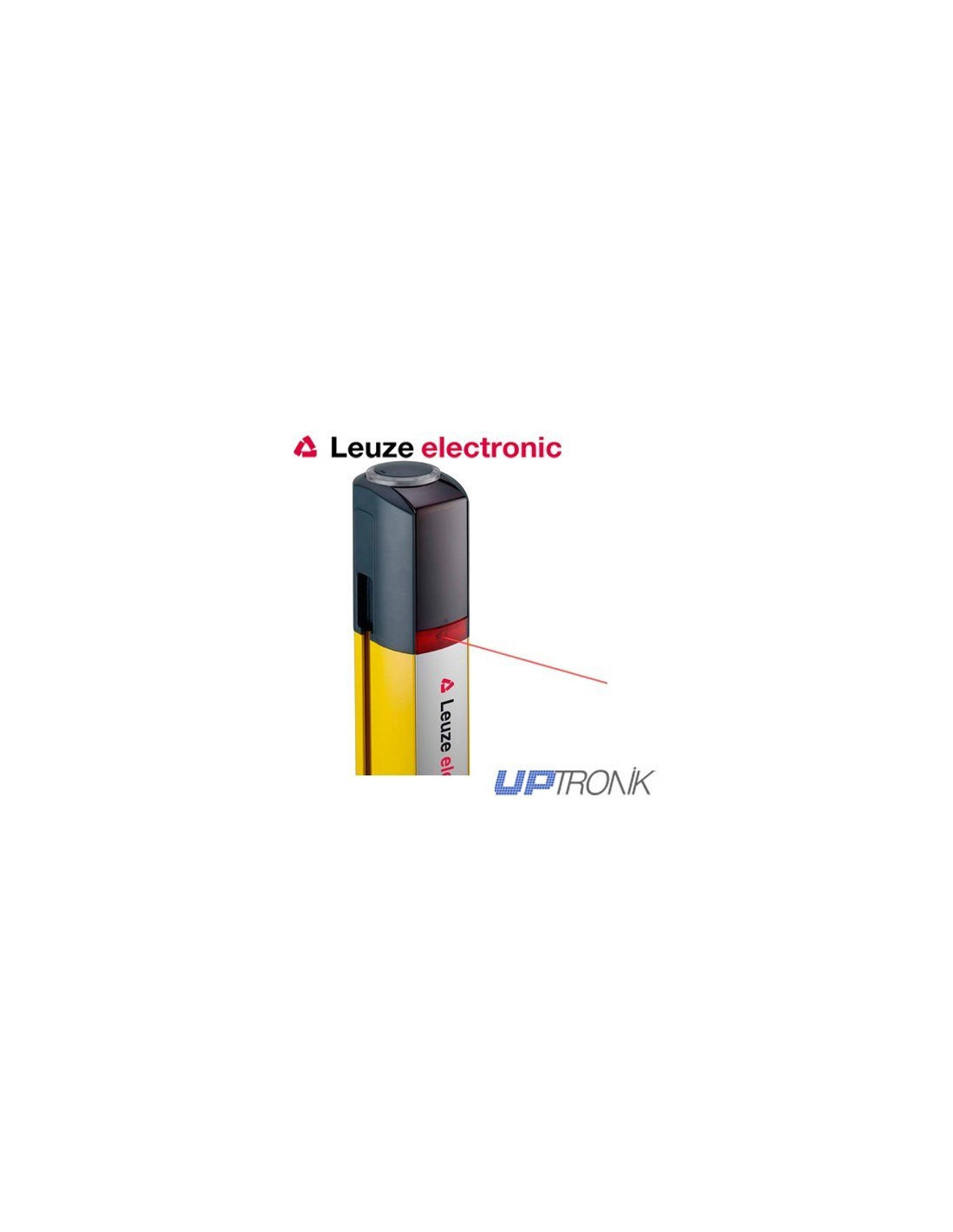

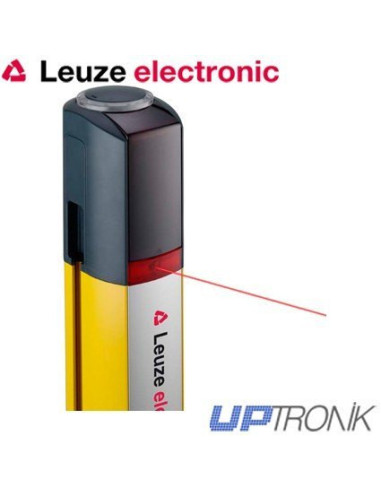

  • Options: device integrated laser alignment aid, integrated muting lamp, 7-segment display




Technical data

Type in accordance with IEC / EN 61496 Type 4
SIL in accordance with IEC 61508 and IEC / EN 62061 (SILCL)
 SIL 3
Presentation Level (PL) according to EN ISO 13849-1
 PL e
Número de haces
 2/3/4 mm
Beam distance 500/400/300 mm
Height of protection (model dependent)
 0.5 ... 50 m (transceiver system). 20 ... 70 m (transceiver system). 0.5 ... 6 m (transceiver system, 3-beam). 0.5 ... 8 m (transceiver system, 2-beam)
Cross section profile
 52 x 65 mm
Safety outputs (OSSDs)
 2 PNP transistor outputs.
Connection system
 Connector. M12
Functions

  Automatic reset, manual reset selectable Contactor monitoring (EDM), selectable with 2 muting sensors (parallel, sequential), programmable operation modes, Laser Alignment (optional transceiver systems).
Features

  Version available as a transceiver with 3 beams. Muting function built in, does not require additional modules Muting. The parameters are set simply by wiring, ie no software required, PC or DIP switches. Possibility of use with low ambient temperatures to -30 ° C. Options: Laser Alignment Integrated Muting lamp integrated 7-segment display.
