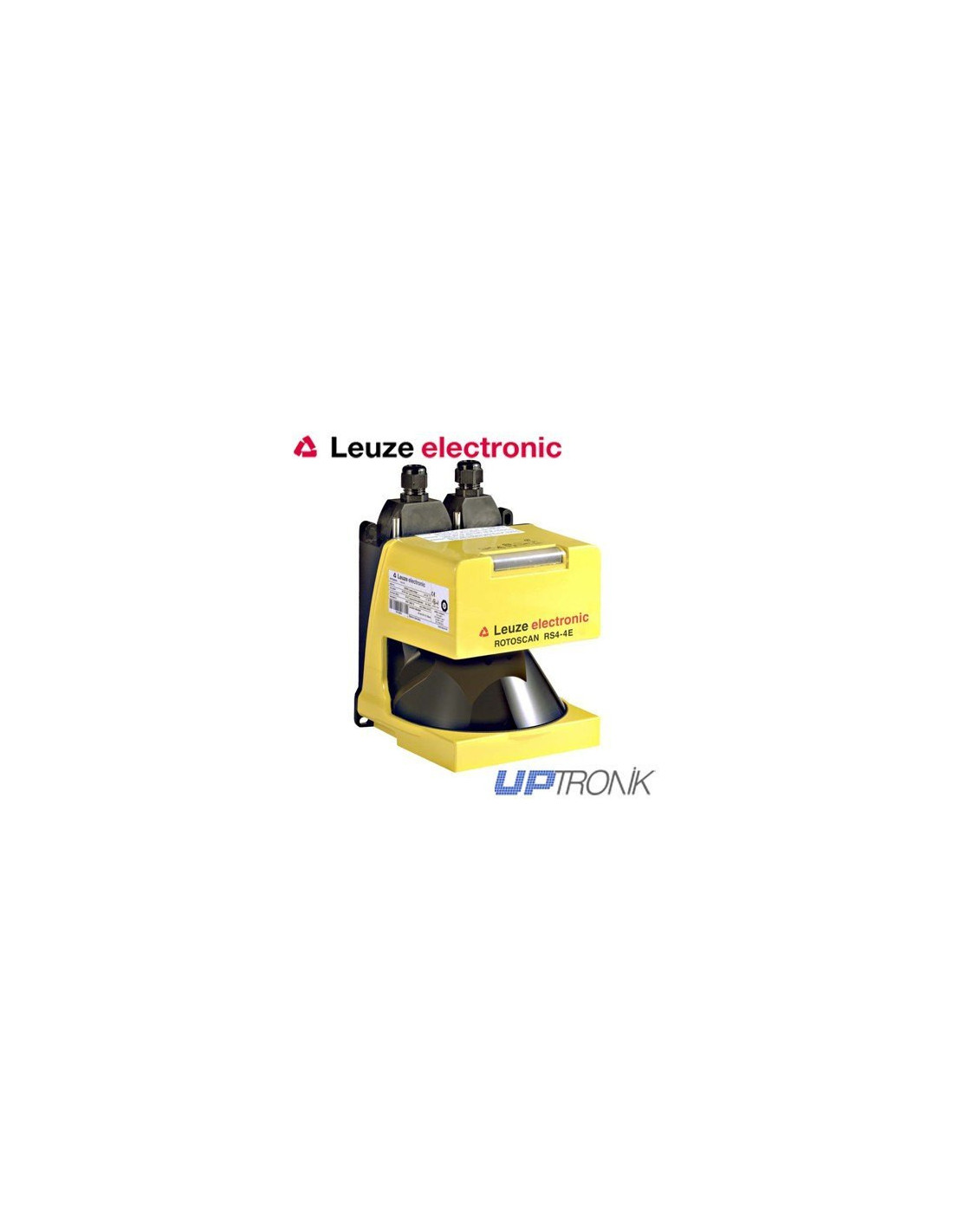

RS4-4E safety laser scanner (Extended) Leuze, for vertical access protection and hazardous points

This feature pack provides great flexibility in protecting access and hazardous points with 8 pairs of protective fields / Switchable notice.



Consultar precio ahora de

Description

FEATURES:

  • Contours protective field / warning freely configurable
  • Start / restart interlock (RES), selectable
  • Supervised switching between protective fields
  • Monitoring warning zone
  • Resolution, selectable
  • Reference contour monitoring
  • Additional alarm output
  • Test Start




Technical data

Type in accordance with IEC / EN 61496 Type 3
SIL in accordance with IEC 61508 and IEC / EN 62061 (SILCL)
 SIL 2
Presentation Level (PL) according to EN ISO 13849-1
 PL d
Resolution (adjustable)
 30/40/50/70/150 mm
Scope 1, 6/2, 2/2, 8/4, 00 m
Number of zones (switchable)
 8
Dimensions, An x Al x Pr
 140 x 155 x 135 mm
Safety outputs (OSSDs)
 2 PNP transistor outputs SO Safety and PROFIsafe interfaces
Connection system
 Sub-D15, Sub-D9 for configuration, security system bus: M12, IR interface for configuration.
Functions

  Start / restart interlock selectable switching between protacción fields monitored, Monitoring field notice, additional alarm output. Extended function package. Access control in monitoring vertical reference contours.
Features

  Point and area surveillance, access control. Automatic configuration with intelligent parameters ConfigPlug connector (external). Free design of the protective / warning. Exchange pairs zpnas dynamic. Compact and easy to use software.
