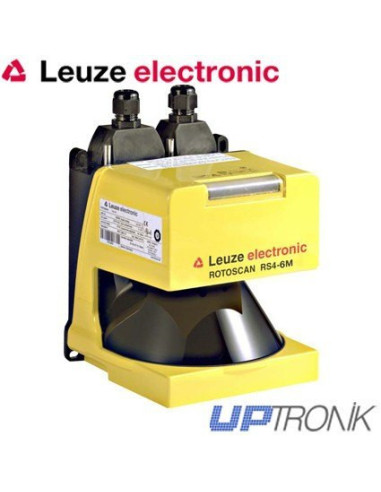

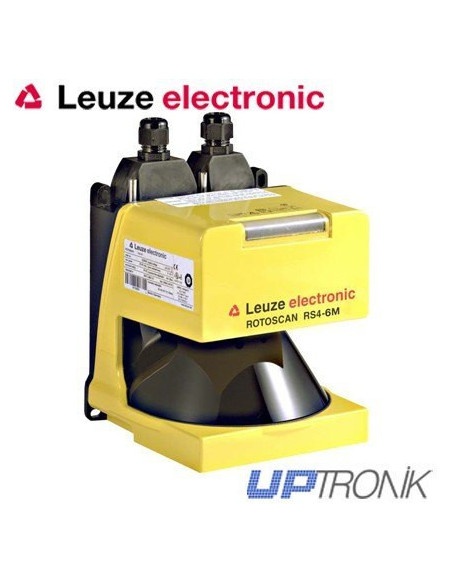

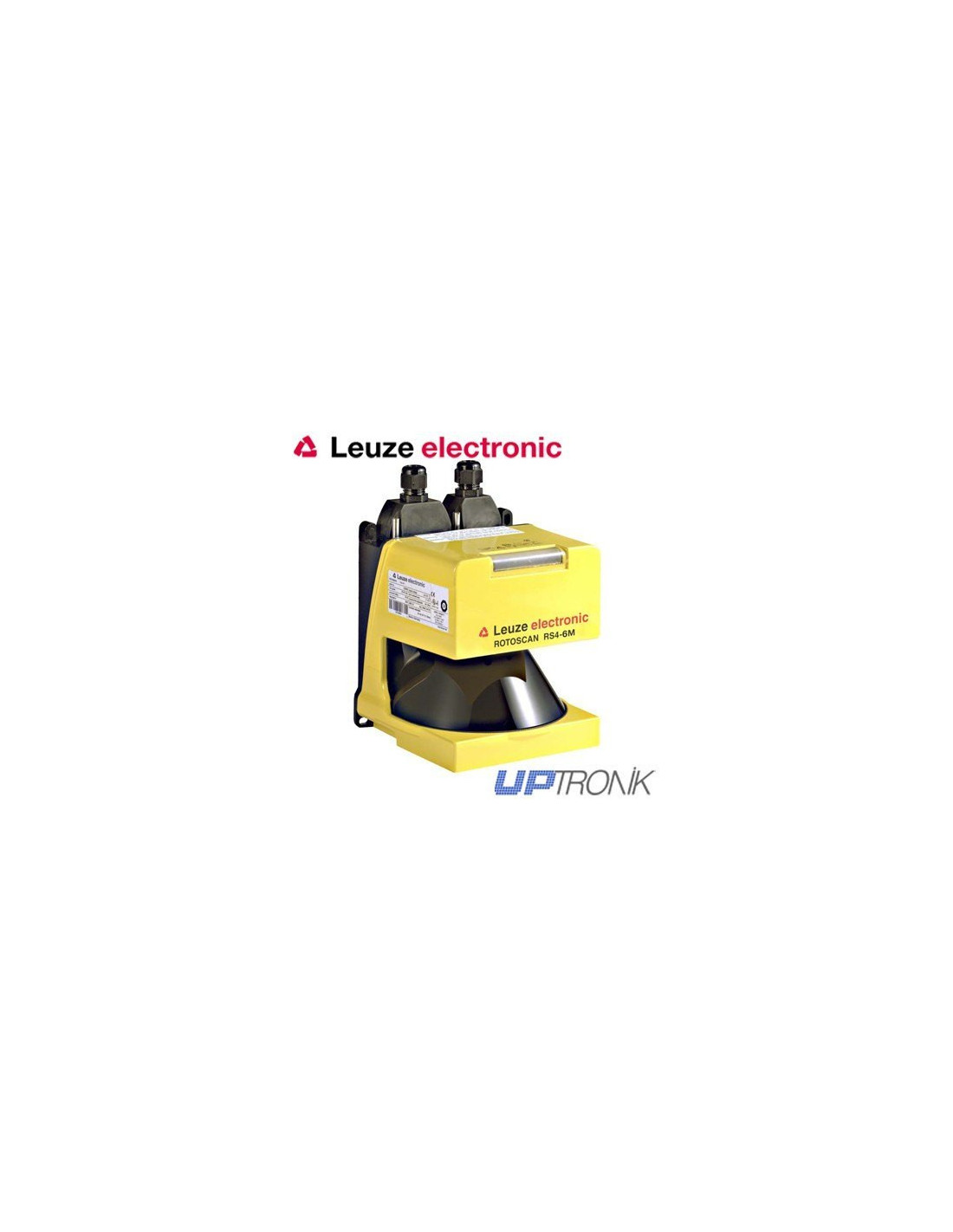

Leuze Safety Laser Scanner RS4-6M (MotionMonitoring) to protect paths manual systems

With this package of functions you can perform a speed monitoring with distance measurement in the field of protection, without being interfered see trafficking.



Consultar precio ahora de RS4-6M - 520045

Description

FEATURES:

  • Monitoring mobile carts
  • Reliable distance measurement for positioning
  • Contours protective field / warning freely configurable
  • Start / restart interlock (RES), selectable
  • Supervised switching between protective fields
  • Monitoring warning zone
  • Resolution, selectable
  • Reference contour monitoring
  • Additional alarm output
  • Test Start




Technical data

Type in accordance with IEC / EN 61496 Type 3
SIL in accordance with IEC 61508 and IEC / EN 62061 (SILCL)
 SIL 2
Presentation Level (PL) according to EN ISO 13849-1
 PL d
Resolution (adjustable)
 30/40/50/70/150 mm
Scope 1, 6/2, 2/2, 8/6, 25 m
Number of zones (switchable)
 8
Dimensions, An x Al x Pr
 140 x 155 x 135 mm
Safety outputs (OSSDs)
 2 PNP transistor outputs SO Safety and PROFIsafe interfaces
Connection system
 Sub-D15, Sub-D9 for configuration, security system bus: M12, IR interface for configuration.
Functions

  Start / restart interlock selectable switching between protacción fields monitored, Monitoring field notice, additional alarm output. Function package. Monitoring movement. Transferter motion tracking.
Features

  Protection of large areas of danger and broad access. Automatic configuration with intelligent parameters ConfigPlug connector (external). Free design of the protective / warning. Exchange pairs of dynamic zones. Compact and easy to use software.

Product Details

RS4-6M - 520045
