RF-IDent HFM System 35xxD (3500, 3520)
RF-IDent HFM System 35xxD (3500, 3520)

RF-IDent HFM System 3500 D

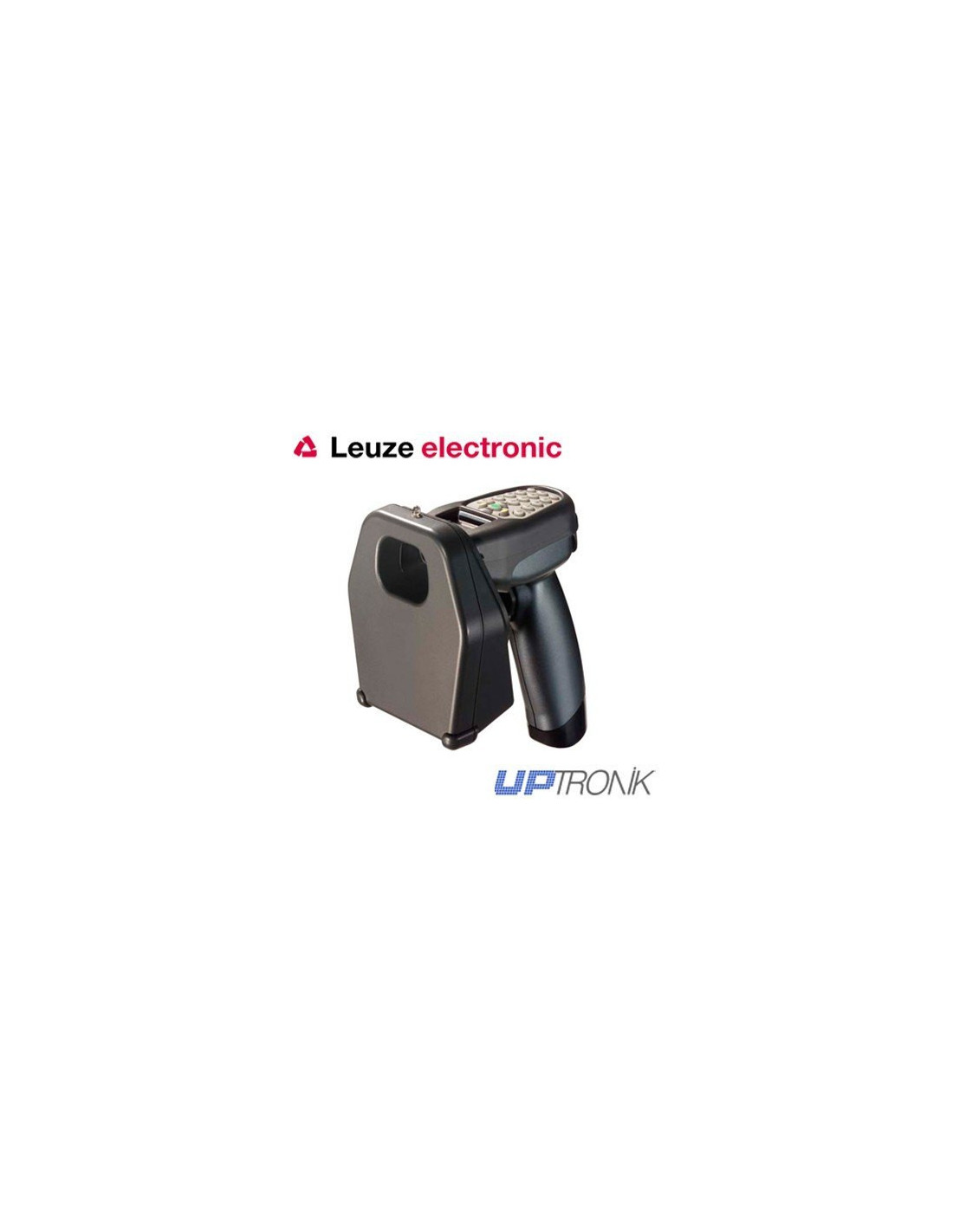

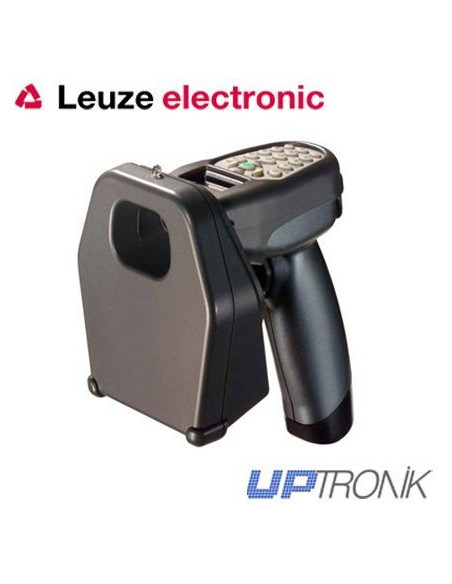

RF-Ident system HFM 3500 D Leuze, Radiant

combined manual equipment for RFID transponders (high frequency 13.56 MHz) and barcodes, specially designed to read bar code information and then write that information into a transponder.



Consultar precio ahora de

Description

FEATURES:

  • Portable reading and writing unit ergonomically designed for short ranges in combination with barcode
  • With appropriate stable trigger button for industrial use
  • RS 232
  • Display and selectable output data (Hex / ASCII)
  • Function selection by keyboard or PLC and simple answer on display




Technical data

Working frequency 13,56 MHz
Max. reading distance RFID
 30 mm
Max. lectrua distance barcode
 450 mm
Maximum speed
 -
Interfaces Integrated: RS 232
Network Connection
 With connector unit MA 21: MultiNet. With 200i/MA connector unit MA 40: PROFINET IO / RT, PROFIBUS DP, INTERBUS, Ethernet TCP / IP, UDP.
Function
 RFID writing/read-only. Bar code reading only.
Types of transponders (TAGS) to choose
 Disc. High temperatures up to 200 ° C. Smartlabel
Power
 5 V CC/230 V CA (Akku 6 V CC)
Index of protection
 IP 54
Features

  Compact handheld transponders (TAGS) and bar code to read the bar code type it in the next step to a transponder (TAG). Wireless version available via Bluethooth.
