System RF-IDent RFI 32
System RF-IDent RFI 32

RF-IDent System RFI 32

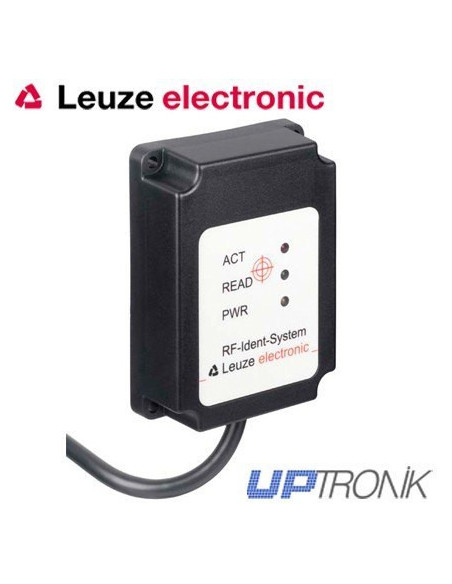

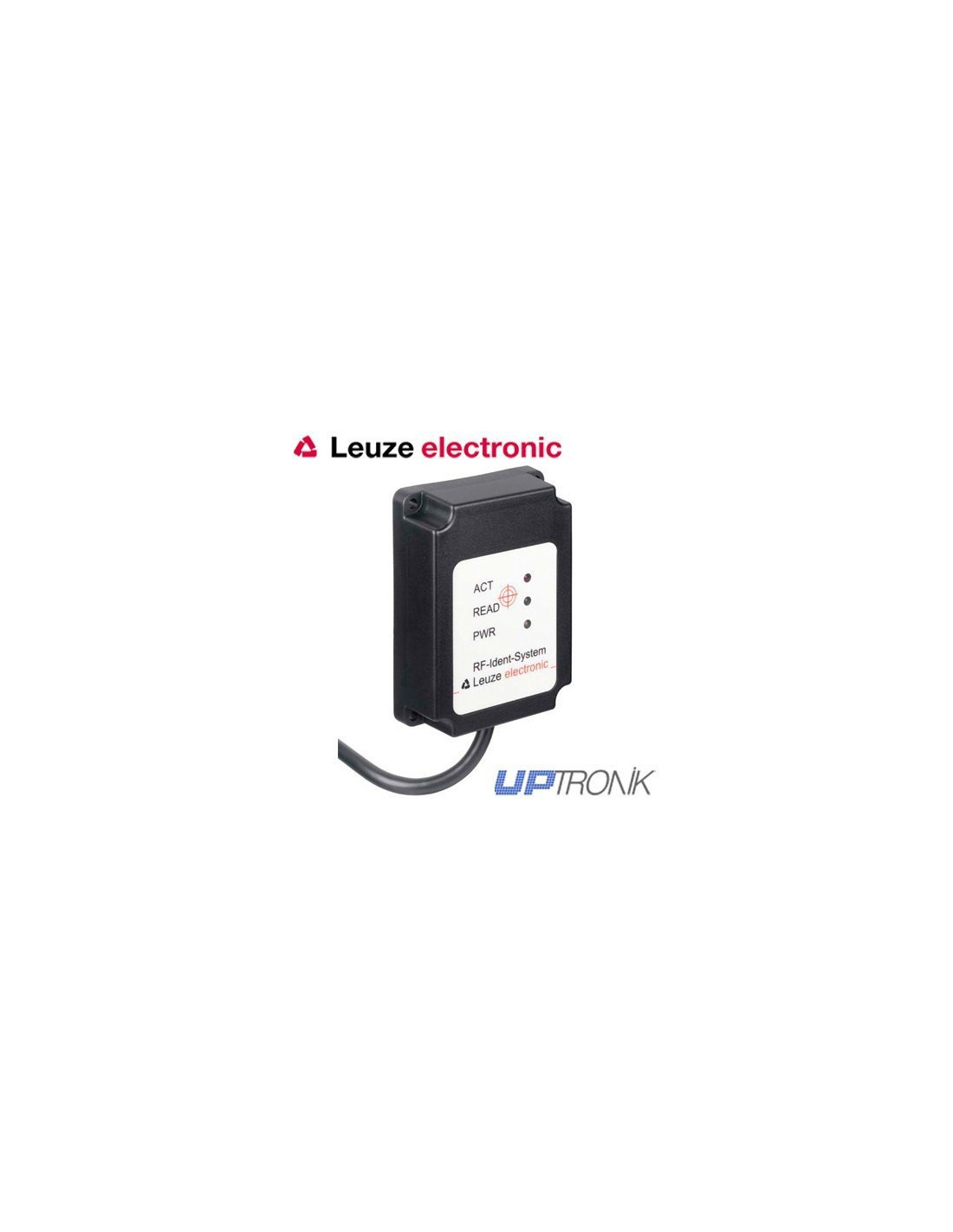

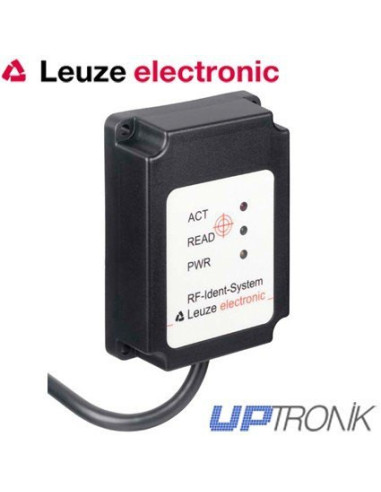

RF-Ident system RFI 32 Leuze, is patient

This fixed reader for transponders fixed code is universally applicable for reading assignments, also at high ambient temperatures.



Consultar precio ahora de

Description

FEATURES:

  • Max. reading speed up to 0.6 m / s
  • Reliable detection in harsh environments up to 200 ° C
  • Max. reading distance up to 80 mm
  • LEDs clearly visible state, CI connector
  • Selection of Industrial transponders
  • RS 232 with trigger input and switching output




Technical data

Working frequency 125 KHz
Max. reading distance RDIF
 80 mm
Max. lectrua distance barcode
 -
Maximum speed
 0.06 m / s
Interfaces Integrated: RS 232
Network Connection
 With connector unit MA 21: MultiNet. With 200i/MA connector unit MA 40: PROFINET IO / RT, PROFIBUS DP, INTERBUS, Ethernet TCP / IP, UDP.
Function
 RFID read-only.
Types of transponders (TAGS) to choose
 Disc. High temperatures up to 200 ° C.
Power
 10 to 30 V DC
Index of protection
 IP 67
Features

  Compact RFID reading unit. High degree of protection IP 67. Suitable for mounting between roller conveyors.
