KRT contrast sensor 20 (B)
KRT contrast sensor 20 (B)

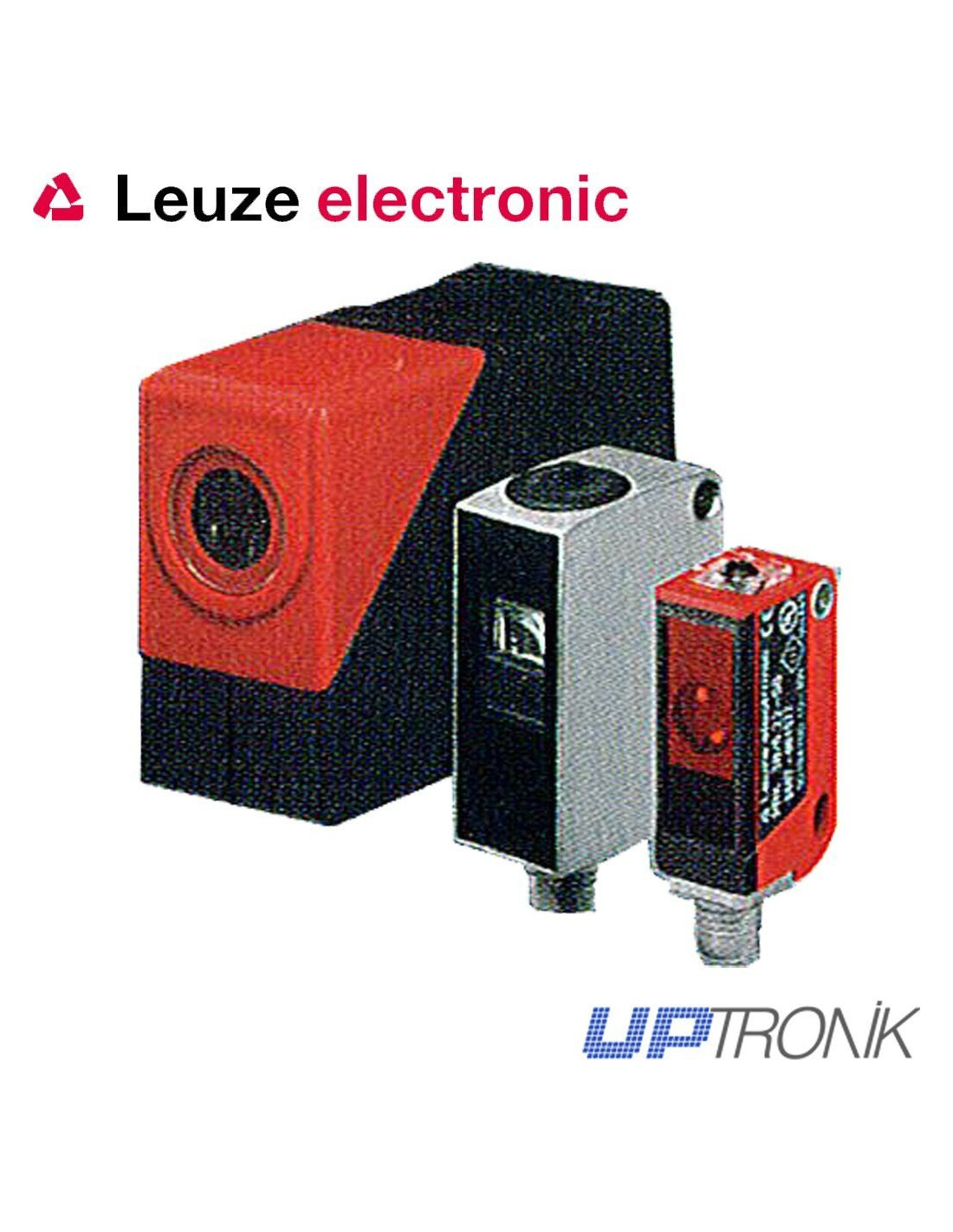

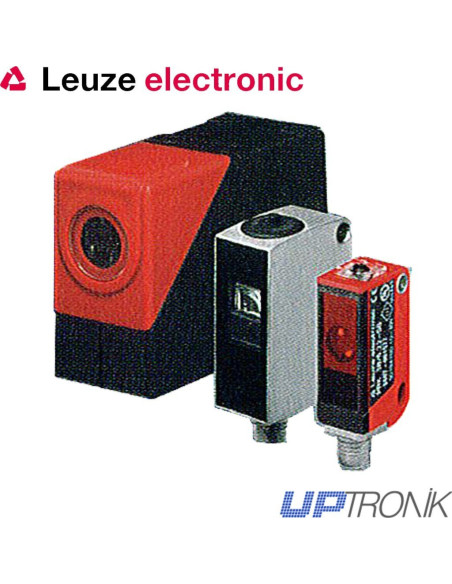

Contrast sensor KRT 55

Contrast sensor Leuze KRT 55 in WASH-DOWN design

The hygienic design is one of the essential requirements where they are manufactured, processed or packaged foods, beverages, pharmaceuticals or cosmetics. These sensors contrast to WASH-DOWN design also resist the most intensive cleaning and disinfection cycles.



Consultar precio ahora de

Description

FEATURES:

  • Stainless steel housing AISI 316L
  • Sensing range 13 mm
  • RGB or white light
  • Different procedures Teach-In
  • Switching threshold correction via EasyTune
  • Response time 50 ms
  • Switching frequency 10 kHz
  • Pulse stretching
  • IO-Link interface




Technical data

Function
 Contrast detection
Dimensions without connector, An x Al x Pr
14 x 36 x 25 mm
Power 12 to 30 V DC.
Departures
PNP, NPN, antivalent. analog
Connection
 M12, M8, cable
Index of protection
 IP 67, IP 69 K
Scope 10 - 80 mm
Light source
 LED, Laser
Switching frequency
 32000/6000/10000 Hz
Color emitter
 RGB / white / red laser light
Light output
 Side or front.
Dot-shaped light
 4 points / single
Position of the light
 Longitudinal, transverse
Operation
 Teach-In, EasyTune
Features

  Temperature compensation. Wide dynamic range. Pulse stretching. Switching light / dark. Selectable switching threshold. ECOLAB. IO-Link.

Product Details
