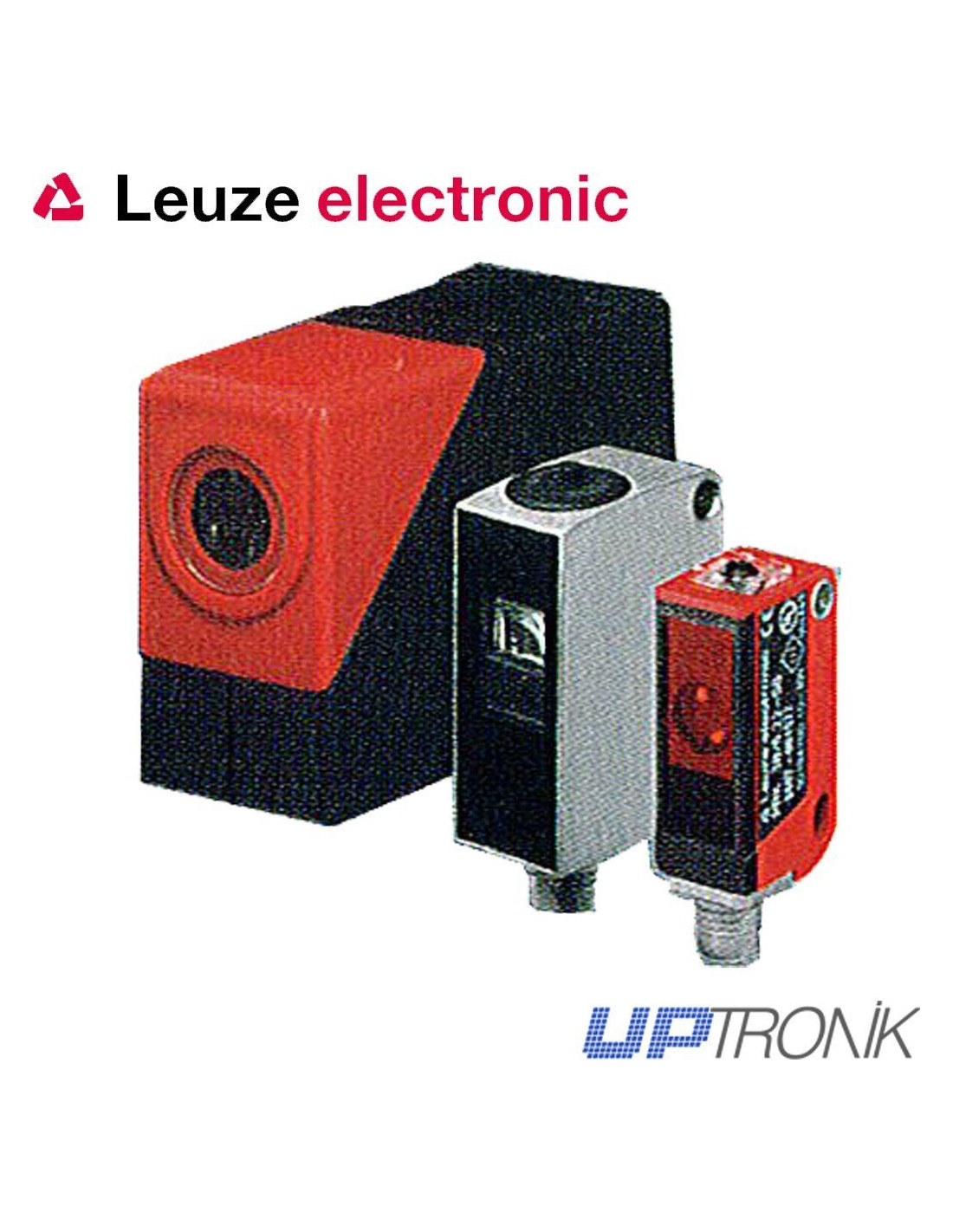

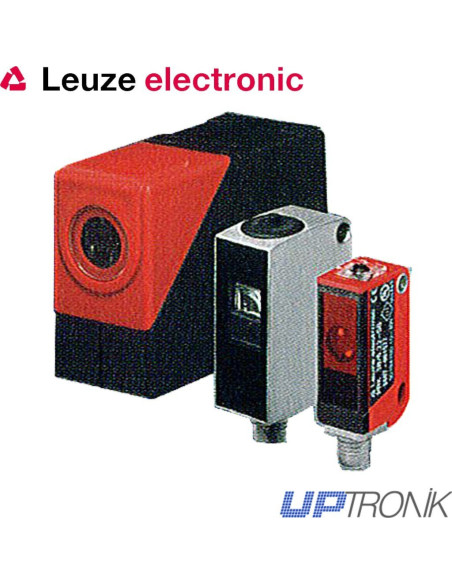

Contrast sensor KRT 20

Contrast sensor Leuze KRT 20, ultrafast systems cut marks and high resolution.

With time fluctuation of <7 microseconds, with points precise, round and small light, memory storage and interface free programming and compensation perfect temperature, these sensors with robust metal housing can cope with faster processes .



Consultar precio ahora de

Description

FEATURES:

  • Metal housing with interchangeable lenses
  • Scanning range 12/20 mm and 50 mm
  • Very high resolution
  • Response time 10 ms
  • Switching frequency 50 kHz
  • Output and analog output
  • Temperature compensation
  • Pulse stretching
  • Switching switching threshold
  • Freely programmable
  • Spot light round or rectangular profile




Technical data

Function
 Contrast detection
Dimensions without connector, An x Al x Pr
30 x 82 x 53 mm
Power 12 to 30 V DC.
Departures
PNP, NPN, antivalent. analog
Connection
 M12, M8, cable
Index of protection
 IP 67, IP 69 K
Scope 10 - 80 mm
Light source
 LED, Laser
Switching frequency
 32000/6000/10000 Hz
Color emitter
 RGB / white / red laser light
Light output
 Side or front.
Dot-shaped light
 4 points / single
Position of the light
 Longitudinal, transverse
Operation
 Teach-In, EasyTune
Features

  Temperature compensation. Wide dynamic range. Pulse stretching. Switching light / dark. Selectable switching threshold. ECOLAB. IO-Link.
