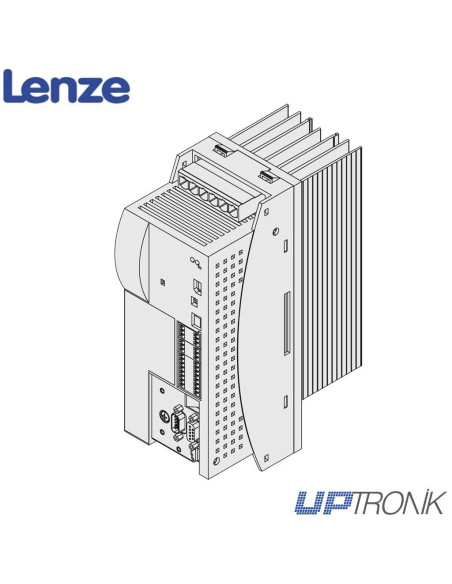

16.0A ECS Motion Module

Lenze Axis Module for ECS servo system. Communication via auxiliary modules, which are served separately.



Consultar precio ahora de ECSEM016C4B

Description

Technical data

AC  16.0 A
Weather conditions
  3K3 class by EN 60721-3-3
Temperature range
  Storage: -25ºC hasta +55ºC
  Operation: 0ºC ... +55ºC (2,5% power reduction foreach ºC over +45ºC)
Mounting height
  0 ... 4000m asl (5% power reduction foreach 1000 m over 1000m asl)
Humidity
  < 95% (witouh condensation)
Vibration resistance
  Acceleration resistence until 0,7g by EN 5178
Protection  IP20 by EN 60529
Protection measures

  • shotcircuit
  • earth leakage

  • overvoltage
  • subvoltage

  • motor swing
  • motor overload
EMC  Requemirent acomplisment by EN 61800-3/A11
Interference emission
  Class C3 limit value acomplisment by EN 55011.
Overload capacity
  Nominal current 150% over 60 seconds
Conformity and approval
  CE, UL, cUL

Product Details

ECSEM016C4B
