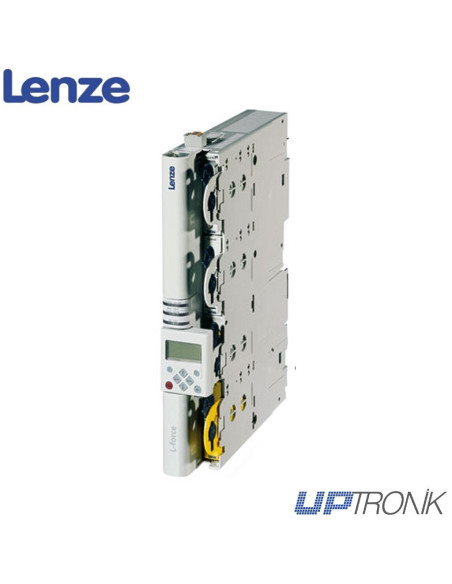

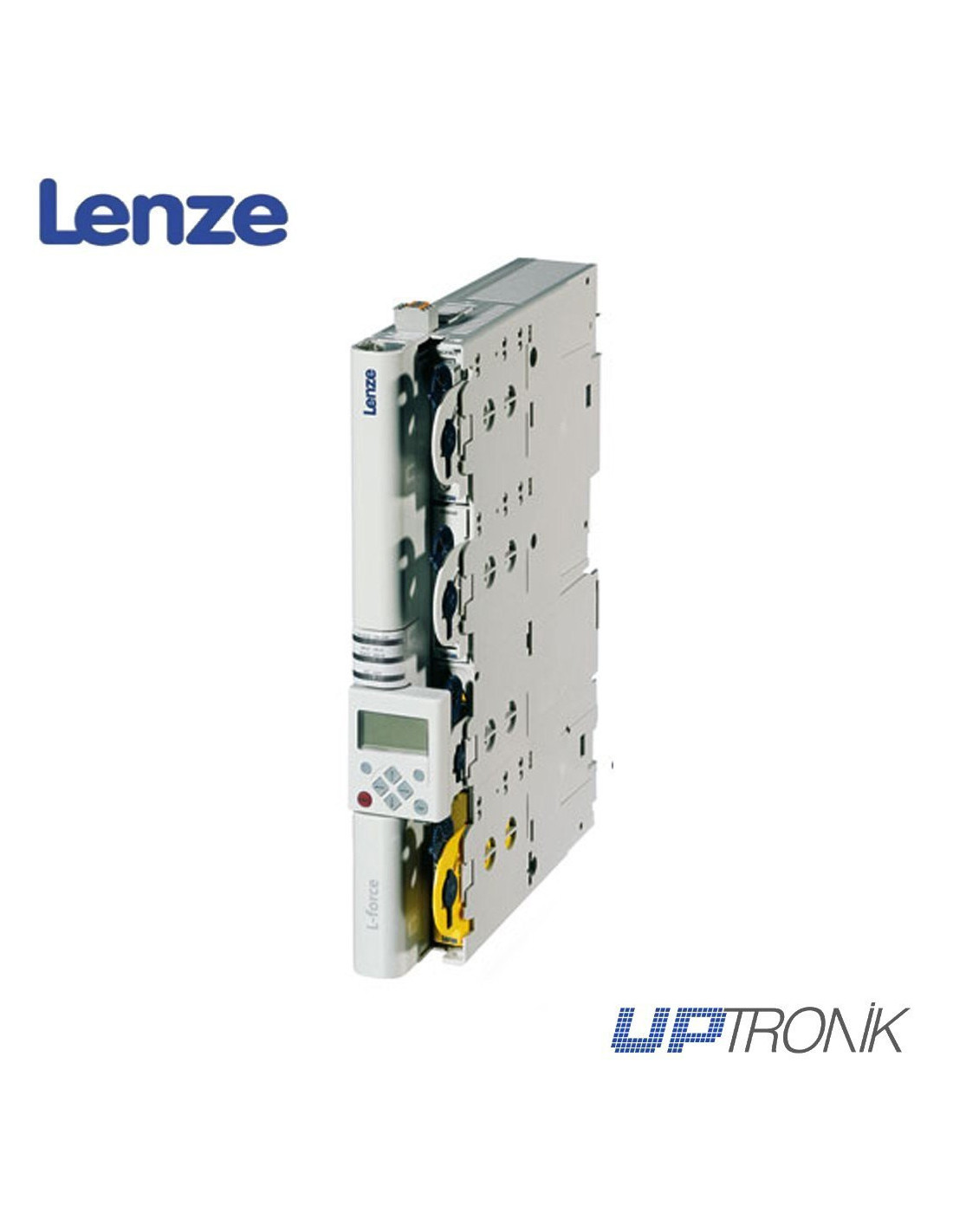

E94ASHE0174 9400 Single Drive 7.5kW

LENZE frequency inverter 9400 series three-phase 400VAC control voltage / frequency or vector. With modular communication for PROFIBUS, PROFINET, Ethernet, EtherCAT, Ethernet POWERLINK MN/CN, Ethernet POWERLINK CN, DeviceNet and CANOpen. (These modules are available separately)



Consultar precio ahora de E94ASHE0174

Description

 Technical data

 Power  7.5kW
 Voltage  400 V, three-phase, 342 ... 550 V, 45 ... 65 Hz
 Weather conditions
  3K3 class by EN 60721-3-3
 Temperature range
  Storage: -25ºC hasta +55ºC
  Operation: 0ºC ... +55ºC (2,5% power reduction foreach ºC over +45ºC)
 Mounting height
  0 ... 4000m asl (5% power reduction foreach 1000 m over 1000m asl)
 Humidity
  < 95% (witouh condensation)
 Vibration resistance
  Acceleration resistence until 0,7g by EN 5178
 Protection  IP20 by EN 60529
 Protection measures

  • shotcircuit
  • earth leakage

  • overvoltage
  • subvoltage

  • motor swing
  • motor overload
 EMC  Requemirent acomplisment by EN 61800-3/A11
 Interference emission
  Class C3 limit value acomplisment by EN 55011.
 Overload capacity
  Nominal current 150% over 60 seconds
 Conformity and approval
  CE, UL, cUL

Product Details

E94ASHE0174
