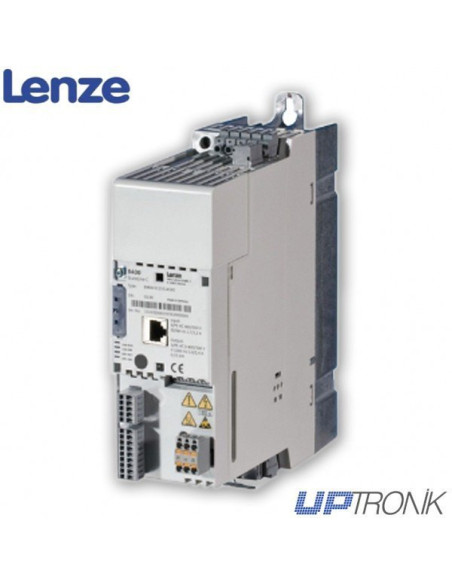

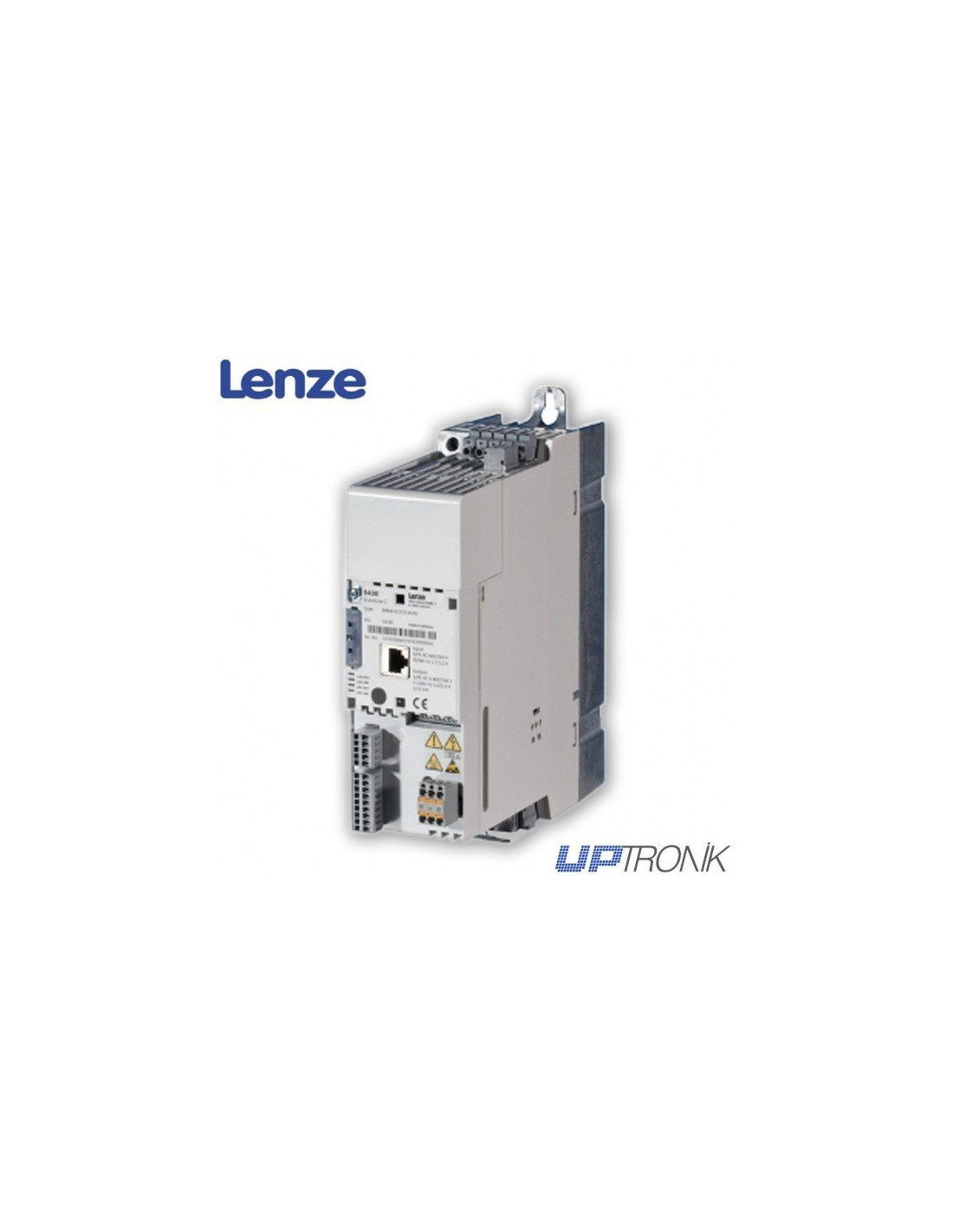

E84AVHCE7512SX0 HighLine 0.75kW I+N
E84AVHCE7512SX0 HighLine 0.75kW I+N

E84AVHCE7512SX0 HighLine 0.75kW I+N

Frequency inverter Lenze 8400 HighLine single-phase variable speed





Consultar precio ahora de E84AVHCE7521SX0

Description

Technical data

Power  0.75kW
Voltage  230 V, single phase, 180 ... 264 V, 48 ... 62 Hz
Weather conditions
  3K3 class by EN 60721-3-3
Temperature range
  Storage: -25ºC hasta +55ºC
  Operation: 0ºC ... +55ºC (2,5% power reduction foreach ºC over +45ºC)
Mounting height
  0 ... 4000m asl (5% power reduction foreach 1000 m over 1000m asl)
Humidity
  < 95% (witouh condensation)
Vibration resistance
  Acceleration resistence until 0,7g by EN 5178
Protection  IP20 by EN 60529
Protection measures

  • shotcircuit
  • earth leakage

  • overvoltage
  • subvoltage

  • motor swing
  • motor overload
EMC  Requemirent acomplisment by EN 61800-3/A11
Interference emission
  Class C3 limit value acomplisment by EN 55011.
Overload capacity
  Nominal current 150% over 60 seconds
Conformity and approval
  CE, UL, cUL

Product Details

E84AVHCE7521SX0
