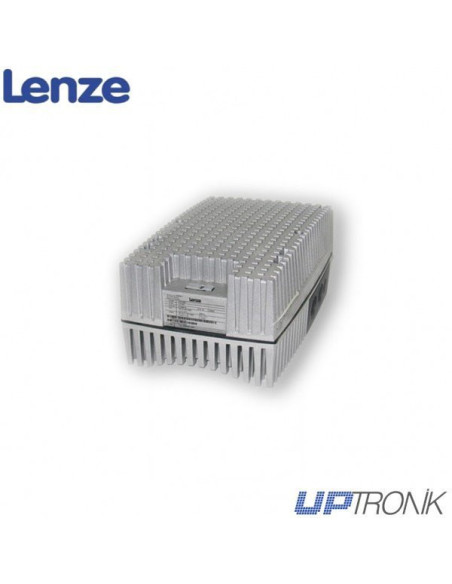

Lenze Inverter with degree of protection IP65, 1.5 kW power connection 3 x 400 / 500V
| Technical data |
|||
| Puissance | 0.75kW | ||
| Voltage | 400 V, three-phase, 320 ... 550 V, 45 ... 65 Hz | ||
| Temperature range |
|
||
| Standard functions. |
PTC input, PID controller, integrated brake transistor, adaptation and adjustment of engine parameters, the programmable relay output, S-shaped ramps, level inversion, skip frequencies, fixed speeds, four suits parameters can be switched online, password protection, bipolar setpoint processing, etc. | ||
| Protection | IP65, protection against accidental contact to Nema 250 Type 4 (3 ... 7.5 kW for wall mounting: IP54) | ||
| Options |
Switch potentiometer unit, diagnosis terminal with keypad or RS232 interface, control module external brake (brake rectifier), external brake resistance, power bus connector | ||
| Switching frequencies |
2, 4, 6, 8 y 16 kHz | ||
| Compliance and Approvals |
CE, UL, cUL |
